    LPG Propane Butane Gas Tank , Q345R Carbon Steel Gas Filling Plant With Dispenser

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW1980
    Certification : CCC ISO ASME
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : Within 30 days after received advance payments
    • Product Details
    • Company Profile

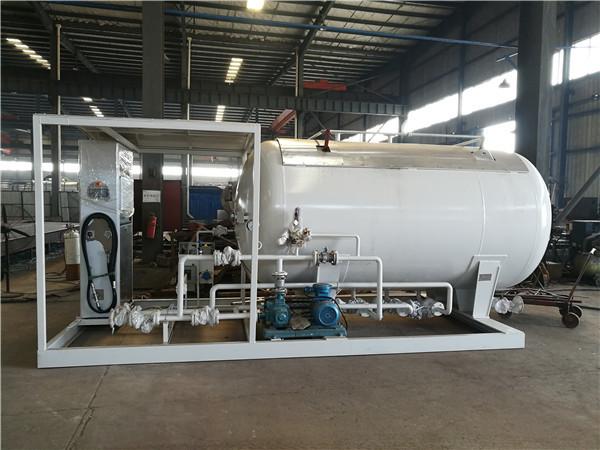

    LPG Propane Butane Gas Tank , Q345R Carbon Steel Gas Filling Plant With Dispenser

    Propane Butane Gas Tank 5000 Liters Q345R Carbon Steel Gas Filling Plant with Dispenser


    Product Description


    1. Storage medium of LPG Gas Filling Plant : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.

    2. Available tank capacity of LPG Gas Filling Plant : 5000liters,10000liters,12000liters,20000liters,25000lliters,32000liters...

    3. Manufacturing standards of LPG Gas Filling Plant : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

    4. Optional parts of LPG Gas Filling Plant :corken or blackmer pump and abb motor,lpg dispenser,lpg cylinder filling scale,Rochester level gauge,volume flow meter...


    Specification of 10000liters LPG Gas Filling Plant 5mt Completed Propane Bottling Plant for AARANO


    10 CBM LPG TANK DIMENSIONS
    Volume of Tank5 CBM
    Filling Weight2500 kg
    Tank Weight2030 kg
    Thickness of Shell (mm)10 mm
    Thickness of Endplate (mm)10 mm
    Tank Diameter (mm)1600 mm
    Tank Dimensions (mm) (length x width x height)3070x1620x2210 mm
    External Dimensions (mm) (length x width x height)As designed to Load in a 40’HQ Container
    Material of TankCarbon Steel Q345R
    Filling MediumLiquefied Petroleum Gas ( Propane)
    Design Pressure1.77 MPa
    Corrosion Allowance1 mm
    Medium Density420-590 kg/ cbm
    Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
    Main parts of LPG Tank
    ItemSpecification/ mmQuantity
    Discharge PipeDN501
    Inflow PipeDN501
    OutletDN501
    Gas phase balance pipesDN502
    ManholeDN4501
    Drain HoleDN501
    Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

    LPG Skid Part list
    ItemModel NumberQuantity
    LPG Tanker5 cbm1 piece
    Pump2" inlet & 2" outlet1 Piece
    Explosive-proof Motor380V with 220V adapter1 Piece
    filling scalesCan fill cylinder and car cylinder,double nozzles2 Pieces
    Pipes/1 Sets
    Cut-off ValveJ41N-40 DN5025 Pieces
    J41N-40 DN1510 Pieces
    Safety ValveA42F-25 DN501 Piece
    Pipe Safety ValveA21F-25 DN251 Piece
    Level GaugeFloat ball type1 Unit
    Discharging pipeL=4M DN50/DN251 Piece
    Shock-absorbing TubeL=500mm DN502 Pieces
    Flange2.5MPaDN1520 Pieces
    LPG Pump & Motor Specification
    Pump BrandChinese brand
    ModelYQB15-5
    MediumLiquid petroleum gas
    Working pressure differential≤0.5Mpa
    Flow Speed15.5M3/H
    Applied Power5.5kw
    Inlet & Outlet Flange2”NPT / 2" NPT
    MotorChinese brand
    Specification

    7.5HP(5.5KW), Explosive Proof,

    Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable

    LPG Filling Machine Specification

    2XFlow meter;2XFilling Nozzles;4XDisplay Screens;2XKeyboard;

    External Dimension:1000X500X2050mm

    Power supply:AC220V±20%(50±1HZ;

    Power cable:RVV3X2.5PVC

    Communication Cable:RVVP 4X0.5PVC shield cable;

    Flow Rate:1~45L/min;

    Rated working voltage:2.2Mpa;

    Gas filling preset range:0.3~9000 liters

    Density preset range:0.5000~0.6999;

    The digits numbers shown on display screen

    Automatic Temperature Compensation function;


    Detail Photos


    Dispenser with 2 Filling gun



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of LPG products I can order from your company?
    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?
    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
