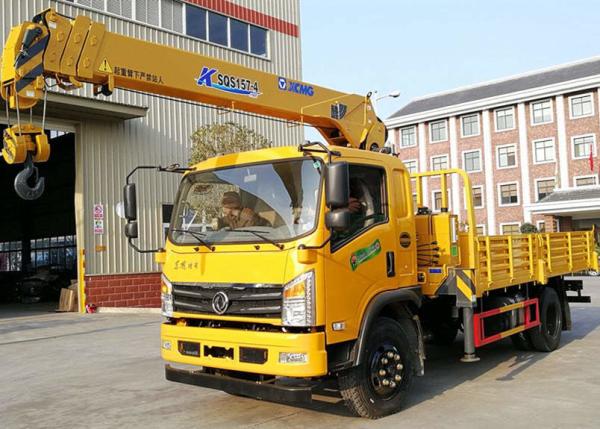

    Heavy Duty Truck Mounted Telescopic Crane Construction Machine 10 Wheels

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5094
    Certification : CCC, ISO,BV,SGS
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500 untis/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Heavy Duty Truck Mounted Telescopic Crane Construction Machine 10 Wheels

    6.3tons Truck Mounted Crane Telescopic Boom Construction Machine 10 Wheels


    Product Description

    1. Folded Arm & Telescopic Straight Arm Crane for option.

    2. Heavy Duty Cargo box.

    3. Crane Brand of truck mounted straight arm crane: XCMG, SANY PALFINGER, Other Chinese Brand


    Parameters of 6.3tons Truck Mounted Crane Telescopic Boom


    General Technical Parameters
    Overall Dimension8750x2370x3600 (mm)
    Gross Vehicle Weight14720kg
    Curb Weight6900kg
    Chassis Specification
    Chassis ParametersChassis BrandDongfeng
    CabinKingrun one and a half row cab, mechanical cab tilting, rear mechanical cab suspension, Left Hand Driving, with A/C
    EngineModelCummins B170 33, 6 Cylinders
    Power125KW/170HP
    Emission standardEURO III
    Displacement5.9L
    Fuel typeDiesel
    Gearbox6 Forward & 1 Reverse Gear
    Front and Rear Axle load4.5T/9T
    Wheel base5000(mm)
    Overhang( Front/Rear)1430/2320(mm)
    Brake SystemFull air brake system, split pneumatic circuit, parking spring break acting on rear axles, exhaust brake
    Steering GearPower Assistant
    Tire9.00R20, 6 Pieces with 1 Spare Tire
    Maximum speed90(km/h)
    Superstructure
    FlatbedFlatbed dimensions5530x2294x550(mm)
    Working SystemCraneBrandChinese Famous Brand XCMG
    Boom TypeTelescopic Boom
    Outrigger2 pcs, Front legs
    OperationHydraulic control
    Optional Parts

    1. Remote control

    2. Rear leg

    3. Seat


    Parameters of the Crane
    ItemUnitValue
    Max Lifting Capacitykg6300@2.5m
    Max lifting heightM12.8
    Max working rangeM11
    Max Lifting MomentT.M15.7
    Recommend Powerkw20
    Max Oil Flow of Hydraulic SystemL/min40
    Max Pressure of Hydraulic SystemMpa20
    Oil Tank CapacityL90
    Crane Weightkg2230
    Installation Spacemm900
    Rotation Angle°360° All Rotation

    Technical Drawing:



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of truck mounted straight arm crane I can order from your company?


    A: There are various sizes and types of Truck Mounted Knuckle Boom Cranes with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied truck mounted straight arm crane to any overseas companies?


    A: Yes,with need of equipment lifting,we offered crane trucks to many Africa and south-east Asian countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
