    Dongfeng 20m Aerial Platform Truck , High Altitude Platform Bucket Lift Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5070BPG
    Certification : CCC, ISO, SGS, BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Dongfeng 20m Aerial Platform Truck , High Altitude Platform Bucket Lift Truck

    Dongfeng 20meters Aerial Platform Operation Truck


    Product Description

    1. Dongfeng single Row Chassis, can carry 2 passengers.

    2. Electronical controlled Lifting Arm with Doulbe Side Balance Valve.

    3. Four Hydraulic Cylinders Control Legs to ensure the Truck's Balance.

    4. Arm and H Leg Automatic Locking System to ensure safety handling.

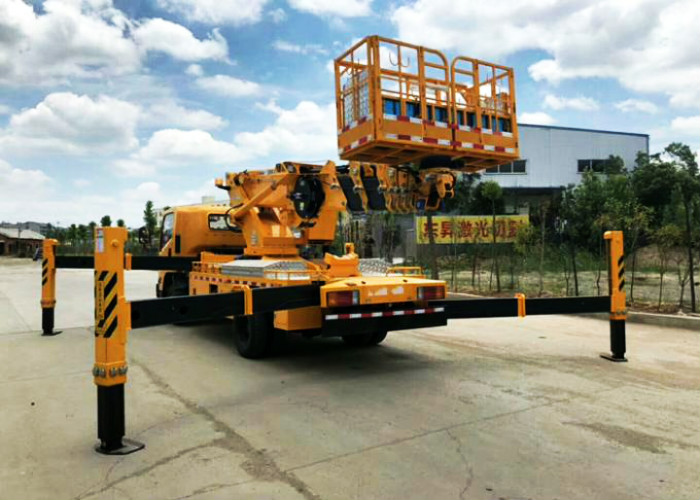

    Product Show


    Dongfeng 20m Aerial Platform Truck , High Altitude Platform Bucket Lift Truck


    Product Details

    Chassis Specifications
    Chassis BrandDongfeng 153
    Drive model4*2
    CabinSingle, Left Hand Driving
    EngineModelCummins B19033, 6 cylinders , 4 stroke
    Power140KW/190HP
    Emission standardEUROⅢ
    Displacement5900(ml)
    Fuel typeDiesel
    Gearbox6 forwards &1 reverse gear, manual operation
    Brake SystemPneumatic(Air break)
    Steering GearPower Assistant
    Wheel Base4700(mm)
    Front/Rear Axle Loading5000/10000(Kg)
    Approach/Departure Angle33/18(°)
    Tire10.00R20, 6 tires+1, steel wire
    Max Driving Speed90(km/h)
    Superstructure main technical Parameters
    Max operation height20m(= Working bucket’s Max height above ground+ Industry unified standard human height 1.7m)
    BoomWorking booms typeThree folded arms
    Boom’s max lift angle65°
    Hydraulic systemHydraulic pumpGear pump
    Hydraulic system pressure≤16Mpa
    Hydraulic tank volume80L
    Working bucketMax height above ground18.3(m)
    Max operation range8.7(m)
    Operation range at min operation height3.07(m)
    Operation range at max operation height11.5(m)
    Working bucket slewing angle360°
    Rated load200kg
    outriggerOutrigger TypeH type
    Numbers of outrigger4
    Horizontal span2930(mm)
    Longitudinal span4500(mm)
    HookMax lift weight800(kg)
    Max lift height8.5(m)
    OperationControl methodManual control
    Outrigger controlHorizontal / vertical individually adjustable
    Operating positionWorking bucket, on the truck or under the truck

    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of skylift truck I can order from your company?

    A: We can supply various sizes and types of skylift trucks with different operation heights and chassis brands. We will recommend you the suitable product.


    Q2: Have you supplied skylift truck to any overseas companies?

    A: Yes, with needs of overseas companies or government project, we offered skylift trucks to more than 50 countries and regions, and most of them are African, Southeast Asian, and South American countries.


    Q3: What about warranty?

    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?

    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
