5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers

    Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers
    • Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers
    • Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers
    • Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers
    • Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers
    • Buy cheap 5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning from wholesalers

    5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW90050
    Certification : CCC,ISO,BV,SGS
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 300 units per month
    Delivery Time : 30-35days after received advance payments
    • Product Details
    • Company Profile

    5CBM Vacuum Road Sweeper Truck 4CBM Garbage Bin 1CBM Water Bin For Road Cleaning

    Product Description


    This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.


    Chassis
    Drive Model4X2, Left hand drive
    Vehicle Main DimensionsDimensions(L x W x H)(mm)6200*2000*2590
    Wheel base (mm)3360
    Overhang (front/rear) (mm)1015/1815
    Wheel track (front/rear) (mm)1504/1425
    Approach/Departure angle(°)24/13
    Weight in KGSCurb Weight (kg)4880
    Front/Rear axle loading(kg)2500/4800
    Max. driving speed(km/h)110
    EngineModel4JB1CN
    Horse Power(HP)98
    Displacement (ml)2771
    Emission standardEuro IV
    Gearbox5 forwards & 1 reverse
    Steering GearPower steering, hydraulic steering with power assistance
    BrakesHydraulic oil brake
    Tire7.00-16 tire , 6 + 1(spare tire)
    Upper & Equipment
    TankGarbage tankTank materialStainless steel 304
    Tank volume(cbm)4.0 cbm
    Water tankTank materialStainless steel 304
    Tank volume(cbm)1.0 cbm
    Operation detailMax. Operation ability(m2/h)40000
    Max. Sucking dimension(mm)50
    Auxiliary engineModelISUZU Brand
    Quantity(No.)1
    Power(kw/HP)55 /75
    Vacuum cleanerMain Vacuum cleanerQuantity(No.)1
    Width(mm)1800
    Side Vacuum cleanerQuantity(No.)2
    Width(mm)600
    Max. Working width(mm)2400
    Sucking Nozzle wheelQuantity(No.)4
    HeightAdjustable
    Remarks

    1. Rear LED pilot lamp

    2. Self unloading box body

    3. Power system: DC 24V

    4. The color will be designed on basis of your requirements.

    5. Rear sucking hose as per customer request

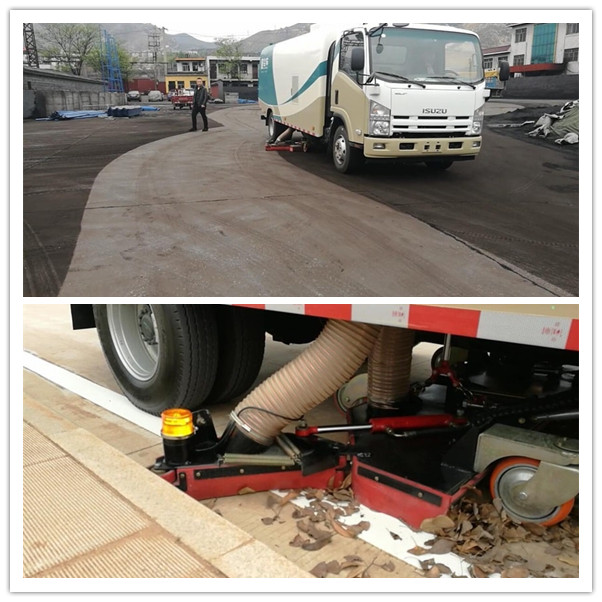

    Working Show


    Sales Service


    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of Sweeper Truck products I can order from your company?

    A: We can supply all kinds of sweeper trucks, Vacuum sweeper truck, High pressure road sweeper truck, Normal road sweeper etc.

    Q2: What is your production standard of Sweeper Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

    A: Our CBU Sweeper Truck is produced as per China GB local standard; We can't export CBU Sweeper Truck to those countries, but we can export super structure to those market, we exported 50 units Sweeper Truck to USA market at the beginning of 2017.

    Q3: Have you supplied to Sweeper Truck any renowned companies?

    A: Our group company is a regular strategic partner of some big government department and waste treatment company. We have supplied many different type Sweeper Truck for them with different chassis brand.

    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
