    Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5100GXW2
    Certification : ISO, CCC
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500units/month
    Delivery Time : 30-35days after received advance payments
    • Product Details
    • Company Profile

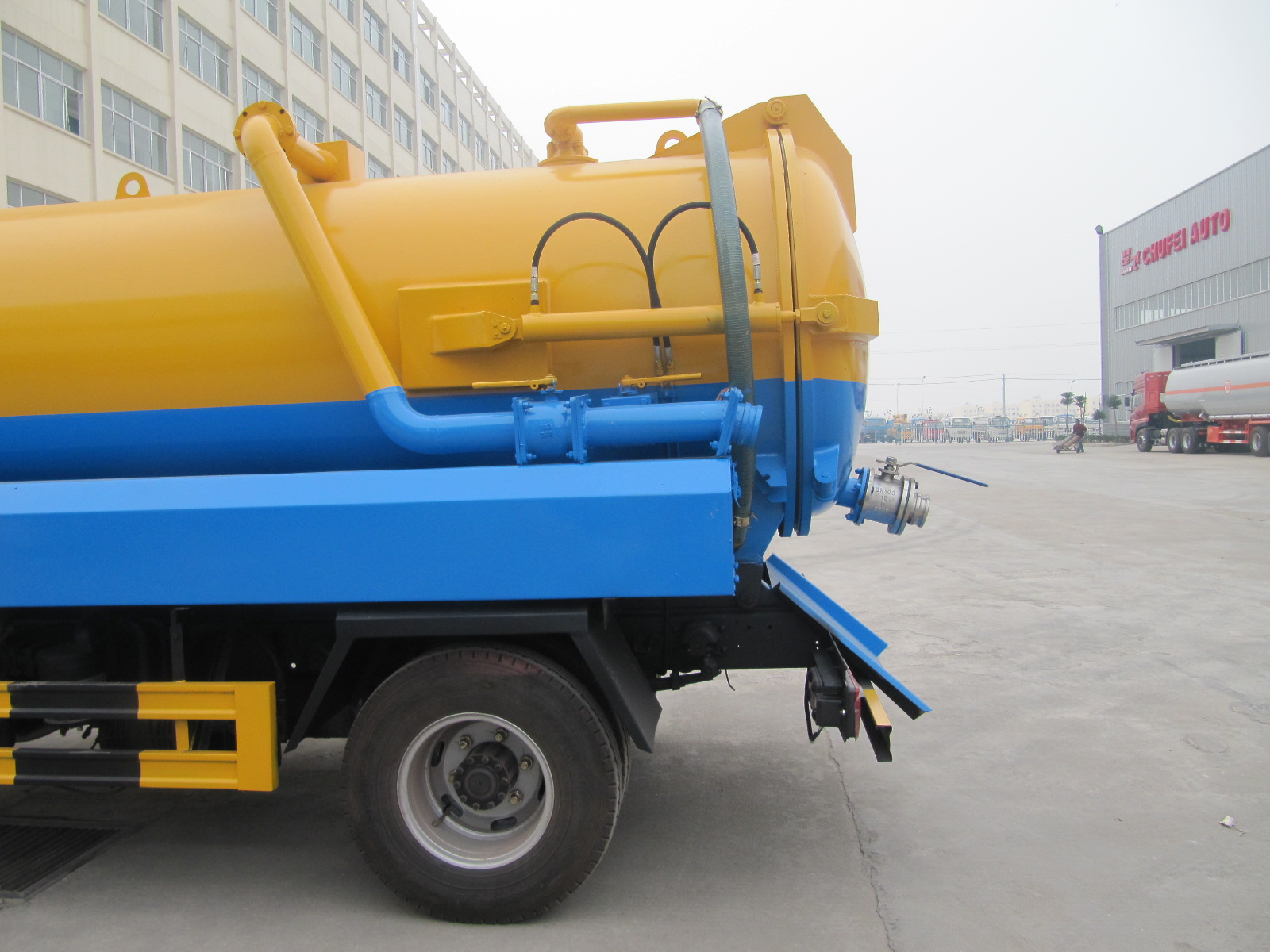

    Jurop & BP Pump Mini Vacuum Suction Truck With Jetting Tank JAC 3CBM

    Jurop & BP Vacuum Pump with Jetting Tank JAC 3CBM Mini suction sewage truck


    Product Description


    1. Vacuum Sewage Suction Truck for city sewage cleaning and delivery.


    2. High quality truck chassis, as well as famous chinese brand Sinotruk, JAC, Dongfeng, etc


    3. Long last wind cooling vacuum pump in Word Best Brand Italian Jurop pump.


    4. 3,000liter tank capacity which can carry about 2.2Ton sewage.


    5. Self Tipping system with rear openning door, With rubber pipe for rust resistant.


    ConditionNew condition/Left hand drive/4x2
    ChassisBrandJAC
    Curb weight(kg)7600 kg
    Wheelbase(mm)3300 mm
    Dimensions(mm)6200*2300*2800 mm
    Front/Rear Axle loading(kg)2300/4000 kg
    Wheel track (front/rear) (mm)1960/1855 mm
    Front/Rear overhang(mm)1335/1880 mm
    Approach/Departure angle(°)16/20
    Max. driving speed(km/h)95 km/h
    Battery12V*2 115Ah*2
    ClutchReinforced diaphragm clutch

    Brakes
    Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications6.50R16
    TransmissionManual type, 5 Forwards and 1 reverse
    CabIt can accommodate three people. With Air Conditioner

    Engine
    BrandChaochai
    ModelCY4102
    Fuel typeDiesel
    Displacement(ml)5193 ml
    Power(kw)88 kw
    Horsepower(HP)120 HP
    Cylinder number4
    Emission standardEuro 2
    Sewage Suction & Cleaning System
    Sewage tankCapacity(cbm/liters)3.0 cbm/3,000 liters
    Tank materialQ235 carbon steel
    Thickness(mm)6.0 mm
    Vacuum pumpAbsolute working pressure(Pa)400 Pa(99.6%vacuum degree)
    Academic suction speed(L/s)45 L/s
    Rotation speed(rpm)500 rpm
    Inlet and Outlet pipeDiameter(mm)108 mm
    Length(m)5.0 m
    Quantity(pcs)1 pc
    Main parts1. Water-gas separator
    2. Oil-gas separator
    3. Four way valve
    4. Safety valve
    5. Anti overflow valve
    6. Anti overflow warning device
    7. Hydraulic control rear cover
    8. Tipping sewage tank body

    Products Show


    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of Sewer cleaning truck I can order from your company?

    A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

    A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.


    Q3: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
