Above Ground LPG Gas Storage Tank For Propane Gas Depot Set Up 200 CBM 100 Ton

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW9520
Certification :	ASME,CCC,SGS,BV
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :	500 Units/Month
Delivery Time :	20~30 days after receiving deposit

Add to Cart

Product Details
Company Profile

Above Ground LPG Gas Storage Tank For Propane Gas Depot Set Up 200 CBM 100 Ton

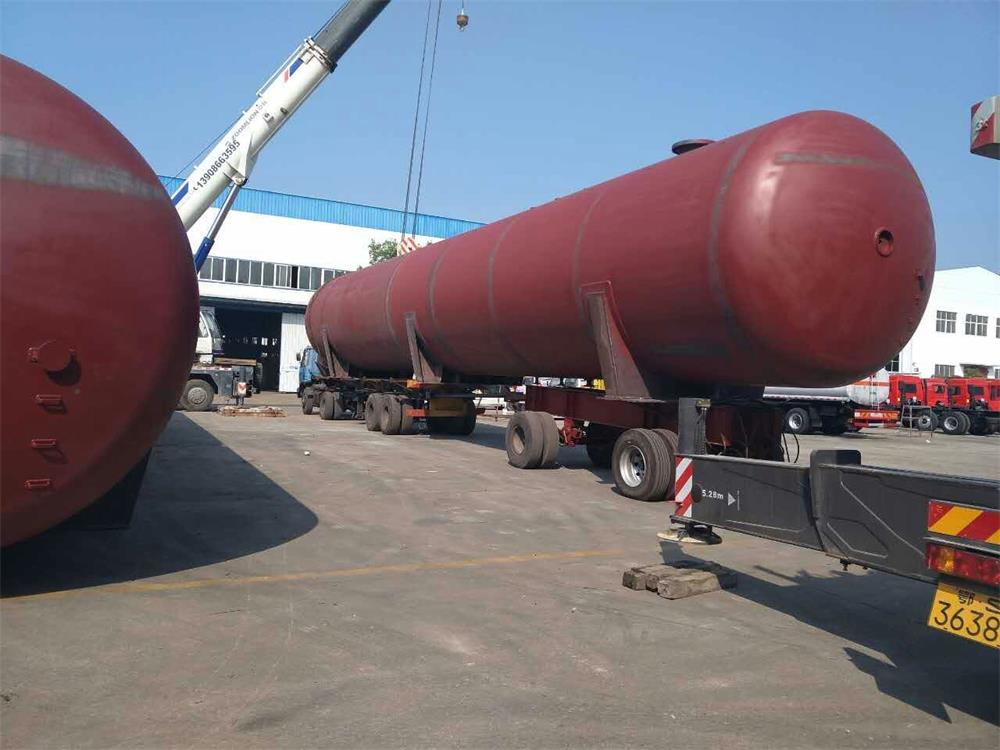

Above ground LPG bullet Storage Tank in 200CBM 100Ton for Propane Gas Depot Set up

Product Description

Above ground LPG bullet Storage Tank in 200CBM 100Ton for Propane Gas Depot Set up

1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

Above ground LPG bullet Storage Tank in 200CBM 100Ton for Propane Gas Depot Set up

Specification of 200cbm LPG Tank
Volume of Tank		200CBM
Tank Weight		38640kg
Thickness of Shell (mm)		18mm
Thickness of Endplate (mm)		18 mm
Tank Diameter (mm)		3400mm
External Dimensions (mm) (length x width x height)		22645x3436x4026mm
Material of Tank and Main Pressure Parts		Carbon Steel Q345R
Filling Medium		Liquefied Petroleum Gas ( Propane)
Design Pressure		1.77 MPa
Corrosion Allowance		1 mm
Medium Density		420-590kg/cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Main parts of the LPG Tank
Item	Specification		Quantity(pc)
Discharge Pipe	DN50		1
Inflow Pipe	DN80		1
Outlet	DN80		1
Gas phase balance pipes	DN50		2
Manhole	DN450		1
Drain Hole	DN50		1
Cut-off Valve DN80	J41N-2.5-80		2
Cut-off Valve DN50	J41N-2.5-50		6
Cut-off Valve DN25	J41N-2.5-25		2
Needle Valve M20×1.5	J24W-320-DN6		1
Thermometer M33×2 2.5Level	WTQ-280		1
Pressure gauge M20×1.5 1.5Level 0～4MPA	Y-100T		1
Magnetic reversible level gauge	HG21584-95		1
Safety accessories	Model		A42F-2.5-80
	Diameter(mm)		80
	Normal pressure		2.5 Mpa
	Re-seating pressure		≥80% of opening pressure
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

We can offer whole set accessories and equipments of building a completed LPG plant as follows,

LPG PUMP AND MOTOR
LPG COMPRESSOR
AIR COMPRESSOR
VOLUME/MASS FLOW METER
LPG DISPENSER MACHINE/CYLINDER WEIGHT SCALE
GAS LEAKAGE DETECTOR
LEVEL GAUGE(MAGNETIC PLATE TYPE,ROCHESTER,FLOAT BALL..)
ALL KINDS OF VALVES(globe valves,safety valves,ball valves,non-return valves,strainer,emergency cut-off valves...)
PIPELINES
GASKETS
BOLTS AND NUTS

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
