    LPG Filling Plant LPG Gas Storage Tank Mobile LPG Station 25 Tons 50CBM

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW92500
    Certification : CCC ISO ASME
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    LPG Filling Plant LPG Gas Storage Tank Mobile LPG Station 25 Tons 50CBM

    45CBM 50CBM LPG skid station 20MT 25tons LPG filling plant mobile LPG station for sale


    Product Description

    1. Storage medium: LPG, Liquid ammoina and Aether etc.

    2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 40m³ LPG skid station.

    3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    Volume of Tank(CBM/Liters)45/50 CBM/45,000/50,000Liters
    Filling ratio0.95
    Filling Weight(kg)23750 kg
    Tank Weight(kg)10640 kg
    Thickness of Shell (mm)14.0 mm
    Thickness of End plate (mm)16.0 mm
    Tank Diameter (mm)2700 mm
    External Dimensions (mm) (length x width x height)10040*2324*2914 mm
    Material of Tank and Main Pressure PartsCarbon Steel Q345R
    Filling MediumLiquefied Petroleum Gas ( Propane)
    Design Pressure(MPa)1.77 Mpa
    Corrosion Allowance(mm)1 mm
    Medium Density(kg/cbm)420-590 kg/cbm

    Manufacturing Standard: China standard

    Design code: GB150.1~4-2011

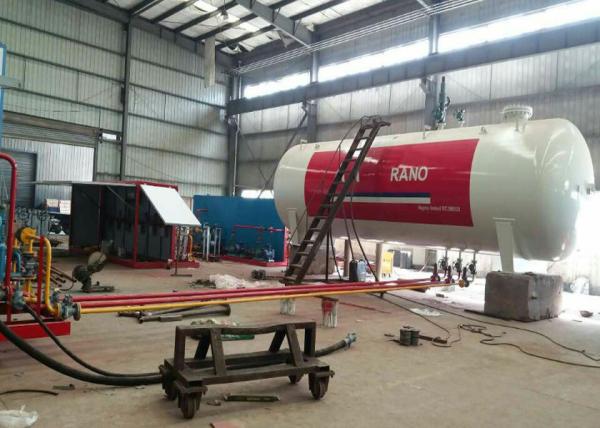

    Products Show



    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of LPG products I can order from your company?
    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?
    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
