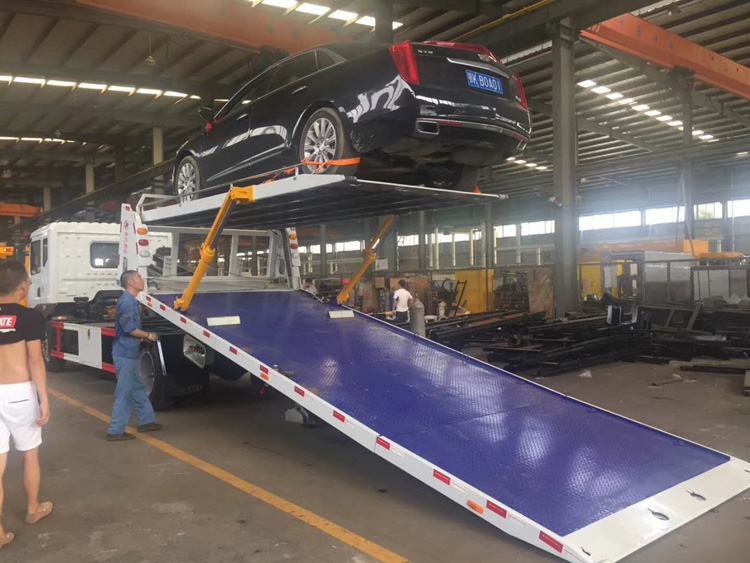

high efficient tow wrecker vehicle 8t Chile Dongfeng 8tons flatbed wrecker

Product Description

1) Purpose of tow wrecker vehicle 8t: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of tow wrecker vehicle 8t:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of tow wrecker vehicle 8t:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of tow wrecker vehicle 8t:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification of Dongfeng tow wrecker vehicle 8t

Item No.	Parameters
Overall Dimension	9500x2480x2760 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	15795 kg
Curb Weight	8950 kg
Loading Weight	6845 Kg
Wheel Base	3950,4500,4700,5200,5600 mm
Front/rear Tread	1858/1806 mm
Approach/Departure Angle	19/10 degree
Front Axle	5395 kg
Rear Axle	10400kg
Engine	Cummins
Engine horsepower	170 HP EURO III
Displacement	5900mL (Diesel)
Max Driving Speed	90 km/h
Tire	9.00R20 ( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	8000kg
Loading Plate Dimensions	7450*2200mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

Structure of tow wrecker truck 8tons

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO

Our Service

• Quick feedback to solve your questions

• Professional engineering and production team

• Related Accessories and spare parts offered,no future worries

• Regular customer after-sale visiting

• Free technical staff training and guidance

• Reasonable price and good quality

• Quick delivery and shipment

FAQ

Q1: What kinds of tow wrecker vehicle I can order from your company?

A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied tow wrecker vehicle to any overseas companies?

A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Hubei Weiyu Special Vehicles Co., Ltd is an important branch of CLW group with registered capital 100, 000, 000 RMB(14 millions US Dollars) and total capital 6, 000, 000, 000(840 millions US Dollars). Located in Suizhou city, hubei province, central China, the Hubei Chengli Special Automobile Co., Ltd is one of the largest manufacturers authorized by National Ministry of Industry and Information for production of 800 types of special purpose trucks and export Center of Trucks and Spare parts identified by Hubei Province Government, such as Water Tank Truck, Insulation Truck and Milk Truck, Sewage Suction Truck, Garbage Truck, Man lift Truck/Aerial Platform Truck, Truck with Crane, Fuel Truck/Trailers, Chemical Tanker Delivery Truck, Bulk Cement Truck, Concrete Mixer Truck, Fire Truck, Dump Truck, Van Truck/Refrigerated Truck, Wrecker/Tow Truck, Flatbed Truck/Low Bed, Tractor, LPG Tank/Truck/Trailer/Skid Station, Road Sweeper/Cleaning Truck, Ambulance Trucks, LED Advertising Trucks, RV/Camper Trucks, Food Truck/Vender Truck and all kinds of special Trailer applied in sanitation, construction, transportation, chemical, oil and gas, emergency rescue and so on. With leapfrog development in 16 years since 2004, now Hubei Chengli Special Automobile Co., Ltd has owned more than 70 professional workshops for different vehicles and 2 technical centers, more than 12, 600 staffs, in which more than 800 are R&D persons and more than 5000 are technical workers...

The "CLW" brand is honored as the "Hubei Well-kown Trademark", Hubei Chengli Special Automobile Co., Ltd is certificated by ISO9001-2015, ISO14001-2005, OHSAS18001, CCC, Automobile Energy Saving and Environment Protection, Pressure Vessels certificated by A2 C2 C3, ASME and ADR, more than 100 state owned patents for truck mounted sewage treatment system and fire truck. Long term cooperation established with Chinese truck chassis supplier, such as DONGFENG, FAW, SINOTRUK, FOTON, ISUZU, SHACMAN, JAC, JMC, CAMC and so on. Hubei Chengli Special Automobile Co., Ltd. Tops No. 1 in China for water bowser selling in 6 years and No. 1 in China for

Sanitation truck in 3 years; Top 4 in Hubei Private Manufacturing Companies and Top 500 of China private Companies.

Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, Middle East and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
