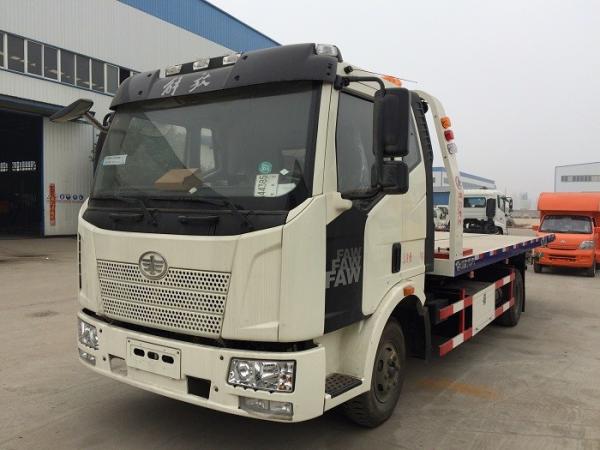

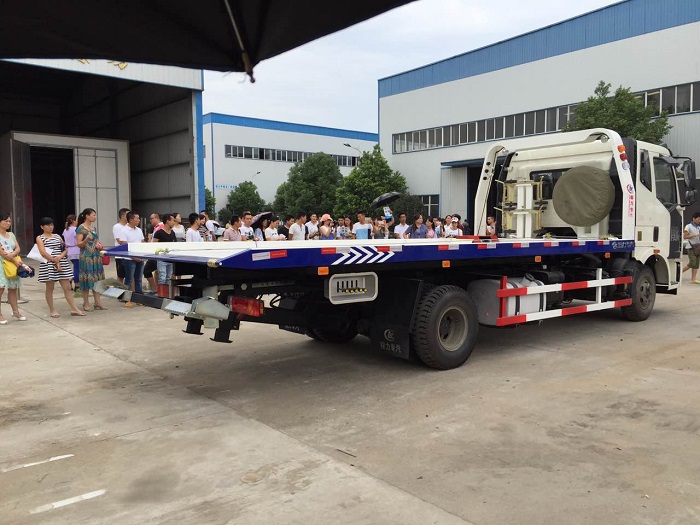

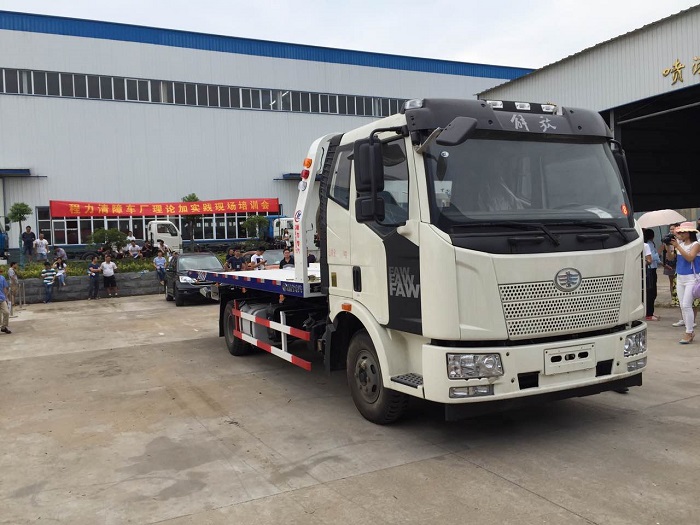

FAW 4ton emergency towing truck 8ton 6.2Meters Plate towing recovery truck

Product Description

1) Purpose of emergency towing truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of emergency towing truck:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of emergency towing truck:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of emergency towing truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification of emergency towing truck

Item No.	Parameters
Overall Dimension	8580x2480x2730 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	8490 kg
Curb Weight	8120 kg
Loading Weight	4000 Kg
Wheel Base	4400 mm
Front/rear Tread	1858/1806 mm
Approach/Departure Angle	19/10 degree
Front Axle	3450kg
Rear Axle	7000kg
Engine	BF4M2012-14E4
Engine horsepower	144 HP EURO III
Displacement	4040mL (Diesel)
Max Driving Speed	90 km/h
Tire	8.25-16 ( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	4000kg
Loading Plate Dimensions	6200*2200mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	4000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

Structure of tow wrecker truck 8tons

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO
