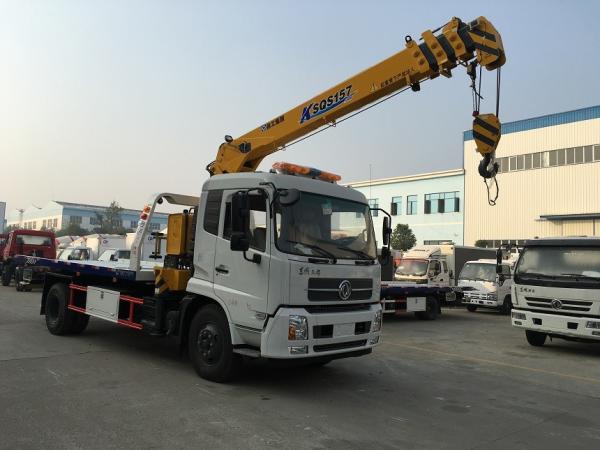

Dongfeng recovery 6ton flatbed tow truck mounted with 6.3ton telescopic crane

Product Description

1) Purpose of 6ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

2) Optional brand of 6ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

3) Spare parts of 6ton flatbed tow truc:

Italy brand multi-way valve and balance valve;

Gernamy Roxroth technology hydraulic cylinder and joint;

imported sealing element;

strengthed checked plate

4) Capacity range of 6ton flatbed tow truc:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton

Specification of dongfeng 6ton flatbed tow truc

Item No.	Parameters
Overall Dimension	9440x2480x3700 mm
Driving ModelL	LHD or RHD
Cabin	2~3 persons
Gross Vehicle Weight	12495 kg
Curb Weight	10000 kg
Loading Weight	2495 Kg
Wheel Base	5000mm
Front/rear Tread	1880/1860 mm
Approach/Departure Angle	24/12 degree
Front Axle	2840 kg
Rear Axle	5440 kg
Engine	Cummins
Engine horsepower	180 HP EURO III
Displacement	5900mL (Diesel)
Max Driving Speed	90 km/h
Tire	9.00R20( 7 pieces)
Loading Plate
Body Material	Q235A carbon steel
Lifting Weight	5000kg
Loading Plate Dimensions	6450*2300mm
Loading Plate Glide Range	2700mm
Min. Slope Anglo	8 degree
Steel Rope Length	21m
Winch Speed	5m/min
Towing Weight	6000kg
Wheel Lift Max. Length	1640mm
Wheel Lift Extension	1340mm
Tool Box no.	1
Auxiliary wheel no.	2
“L” bracket no.	1
LOGO	Company Logo or any advertisement can be printed on the carriage body according to the customer's design.

Structure drawing

Item No.	Name
1	chassis
2	Warning lamp
3	Single lamp(white-front clearance lamp;red-rear clearance lamp
4	Winch and steel rope
5	Loading plate
6	Side signal lamp
7	Chain hook
8	Wheel lift
9	“L” bracket
10	Operation and hydraulic system
11	Auxiliary wheel
12	Side guard rail
13	Tool box and accessories
14	PTO and oil pump
15	Witch and operation handle of PTO
