    4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5089
    Certification : CCC SGS BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units per month
    Delivery Time : 30 days after receiving deposit at account
    • Product Details
    • Company Profile

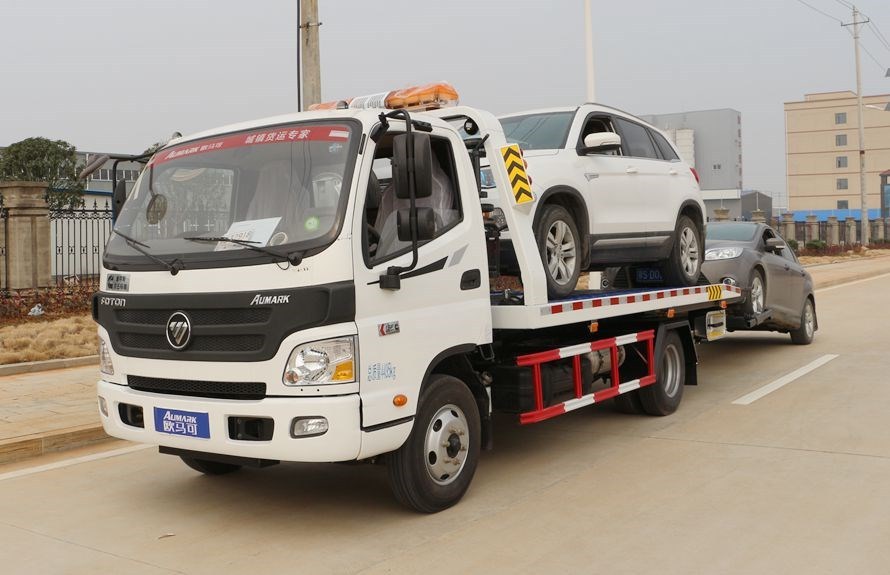

    4 Ton Wheel Lift Breakdown Wrecker Tow Truck Foton 6 Wheel Flatbed Breakdown Tow Lorry

    4ton wheel-lift breakdown truck Foton 6-wheel flatbed breakdown tow lorry

    Product Description


    1) Purpose of 4ton wheel-lift breakdown truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.

    2) Optional brand of 4ton wheel-lift breakdown truck:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...

    3) Spare parts of 4ton wheel-lift breakdown truck:

    Italy brand multi-way valve and balance valve;

    Gernamy Roxroth technology hydraulic cylinder and joint;

    imported sealing element;

    strengthed checked plate

    4) Capacity range of 4ton wheel-lift breakdown truck:3ton,4ton,5ton,6ton,8ton,12ton,16ton,20ton,25ton,31ton,40ton,50ton


    Specification of 4ton wheel-lift breakdown truck

    Item No.Parameters
    Overall Dimension7390x2300x2500 mm
    Driving ModelLLHD or RHD
    Cabin2~3 persons
    Gross Vehicle Weight8280 kg
    Curb Weight4820 kg
    Loading Weight3460 Kg
    Wheel Base3800 mm
    Front/rear Tread1210/2470 mm
    Approach/Departure Angle24/12 degree
    Front Axle2840 kg
    Rear Axle5440 kg
    EngineCummins
    Engine horsepower154 HP EURO III
    Displacement3760mL (Diesel)
    Max Driving Speed90 km/h
    Tire7.00-16( 7 pieces)
    Loading Plate
    Body MaterialQ235A carbon steel
    Lifting Weight3000kg
    Loading Plate Dimensions4450*2200mm
    Loading Plate Glide Range2700mm
    Min. Slope Anglo8 degree
    Steel Rope Length21m
    Winch Speed5m/min
    Towing Weight4000kg
    Wheel Lift Max. Length1640mm
    Wheel Lift Extension1340mm
    Tool Box no.1
    Auxiliary wheel no.2
    “L” bracket no.1
    LOGOCompany Logo or any advertisement can be printed on the carriage body according to the customer's design.

    Structure drawing

    Item No.Name
    1chassis
    2Warning lamp
    3Single lamp(white-front clearance lamp;red-rear clearance lamp
    4Winch and steel rope
    5Loading plate
    6Side signal lamp
    7Chain hook
    8Wheel lift
    9“L” bracket
    10Operation and hydraulic system
    11Auxiliary wheel
    12Side guard rail
    13Tool box and accessories
    14PTO and oil pump
    15Witch and operation handle of PTO

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of wheel-lift breakdown truck I can order from your company?


    A: There are various sizes of wheel-lift breakdown truck with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied wheel-lift breakdown truck to any overseas companies?


    A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
