    20 Tons 45CBM LPG Gas Storage Tank Propane Refill Station 1.77MPa Pressure

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9045
    Certification : CCC ISO ASME
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    20 Tons 45CBM LPG Gas Storage Tank Propane Refill Station 1.77MPa Pressure

    20tons 45CBM LPG tanker 20T Propane gas station 45,000L liquefied petroleum gas station


    Product Description

    1. Storage medium: LPG, Liquid ammoina and Aether etc.

    2. Effective capacity: 5m³~200m³

    3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008. This tanker is 45CBM/45,000Liters.

    4. LPG storage tanker for gas filling plant

    Specification of 45CBM LPG Tanker
    Volume of Tank(CBM/Liters)45CBM/45,000Liters
    Filling Weight(kg)2175 kg
    Tank Weight(kg)10220 kg
    Thickness of Shell (mm)14.0 mm
    Thickness of End plate (mm)16.0 mm
    Tank Diameter (mm)2700 mm
    External Dimensions (mm) (length x width x height)8342*2728*3318 mm
    Material of Tank and Main Pressure PartsCarbon Steel Q345R
    Filling MediumLiquefied Petroleum Gas ( Propane)
    Design Pressure(MPa)1.77 Mpa
    Corrosion Allowance(mm)1.0 mm
    Medium Density(kg/cbm)420-590 kg/cbm
    Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
    Safety accessories for 10CBM/20CBM LPG Tanker
    ItemSpecificationQuantity(pc)
    Cut-off Valve DN80J41N-2.5-50/801
    Cut-off Valve DN50J41N-2.5-506
    Cut-off Valve DN25J41N-2.5-252
    Needle Valve M20×1.5J24W-320-DN61
    Thermometer M33×2 2.5LevelWTQ-2801
    Pressure gauge M20×1.5 1.5Level 0~4MPAY-100T1
    Magnetic reversible level gaugeHG21584-951
    Safety ValveModelA42F-2.5-80
    VersionBuilt-in
    Diameter(mm)80
    Normal pressure2.5 Mpa
    Re-seating pressure≥80% of opening pressure
    Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.

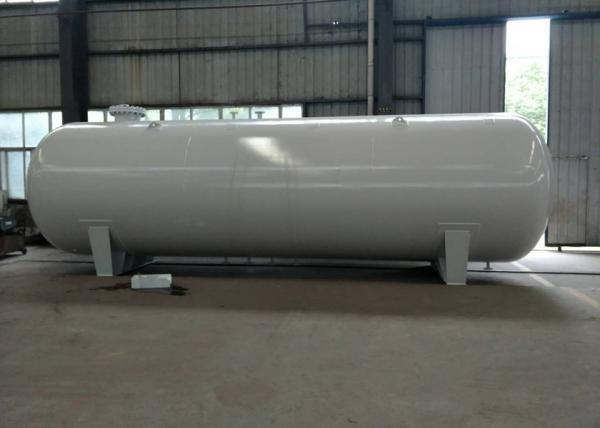

    Products Show


    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of LPG products I can order from your company?
    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?
    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
