    Construction Heavy Duty Custom Dump Trucks , 6 X 4 40t Large Bottom Dump Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW3250
    Certification : BV,SGS,CCC
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit at account
    • Product Details
    • Company Profile

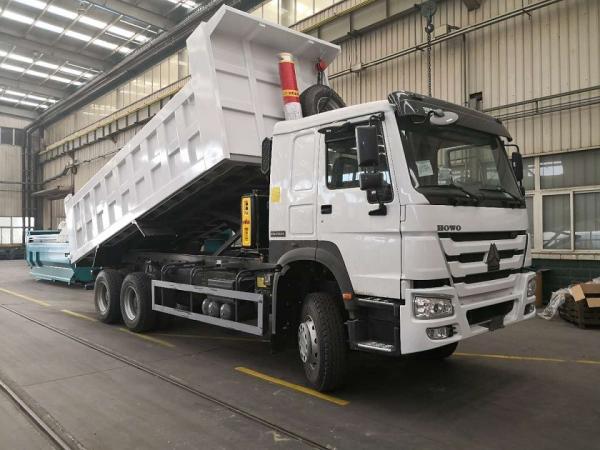

    Construction Heavy Duty Custom Dump Trucks , 6 X 4 40t Large Bottom Dump Truck

    Chinese Heavy Duty Tipper Sinotruk Howo 6X4 40ton 40t New Dump Truck


    Product Description


    1) Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...

    2) Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

    3) high tensile steel for dumper materia,4mm,6mm,8mm or 10mm

    4) Used in construction site for transportation of mineral,stone,sand and so on.


    Specifications of Sinotruk Howo 6X4 40ton 40t New Dump Truck


    Cabin

    HOWO 76 Standard Cab

    With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.

    Vehicle Main Dimensions(L x W x H)mm8860×2496×3450
    Wheel base (mm)3825+1350
    Wheel track (front/rear) (mm)1500/1525
    Approach/Departure angle(°)19/24
    Weight in KGSTare Weight12390
    Loading Capacity30000kg
    Front axles loading capacityHF9 1x9000
    Rear axles loading capacityHC16 2x16000
    Max. driving speed(km/h)85
    EngineBrandSinotruk
    ModelWD615.47
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power(HP)371HP
    Emission standardEuro Ⅱ
    GearboxHW19710, 10 forwards & 2 reverse
    ClutchReinforced diaphragm clutch, diameter 430mm
    Steering GearZF 8118,power steering, hydraulic steering with power assistance
    Fuel tank (L)300
    Tire12R22.5 tubeless tire ,10 pieces with one spare
    Brakes

    Service brake: dual circuit compressed air brake

    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake


    Thickness

    Side6mm in high tensile strength steel Q345/B
    Front6mm in high tensile strength steel Q345/B
    Bottom8mm in high tensile strength steel Q345/B
    Dump body Size(L x W x H)6500mm x 2300mm x 1350mm. 20CBM

    Tipping hydraulics

    Tipping typeFront tipping type
    Tipping systemComplete set of hydraulics system

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of dump trucks I can order from your company?


    A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied dump trucks to any overseas companies?


    A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
