    Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5110
    Certification : CCC,SGS,BV
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 UNITS/MONTH
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck

    ISUZU 3.5ton 4t water tank fire brigade truck 4000liters water fire fighting truck


    Product Description


    1. water tank fire brigade truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.


    2) To ensure good performance of fire trucks,water tank fire brigade truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).


    3) water tank fire brigade truck are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.


    Spec. of water tank fire brigade truck


    ModelParametersothers
    Overall Dimension7542×2200×3000mm
    GVW10000kg
    Engine Model4HK1-TCG40
    Engine Power139kW
    Wheelbase4175mm
    Driving Type4×2
    Max.speed110km/h
    Emission Standard5193mlEuro4
    Passengers3+3
    Fire pump rated flow30L/s@1.0MpaVacuum pump
    water monitor rated flow30-50L/s@1.0MPa
    Water monitor rangeWater range≥55m
    Passengers3+3
    Approach angle≥21°
    Departure angle≥13°

    Item ParametersParametersothers
    1Water tank capacitywater3000kgBuilt-in type
    2Fire pump modelCB20.10/15.30Shanghai rongshen
    3Fire pump performance30L/s@1.0Mpa;15L/S@2.0MpaUse vacuum pump to priming water
    4the installation site of fire pumprear
    5The quantity of fire pump water outlet4
    6Pressure gauge0-2.5 Mpa2.6 level
    7Vacuum gauge-0.1- -1 MPa2.6 level

    8


    Water monitor

    (PS30-50D)

    Injection pressurewater:≥55m
    1.0Mpa
    Depression/Elevation angle-30-+70°
    Turning angle 360°
    9PTO ModelYTQ250 (MOTOR)

    The Overall layout

    The overall layout

    The front and two sides of the middle of the body are storage compartments. It is built-in type

    independent water tank in the middle position of the central compartment. The back of the body

    is pump compartment.

    The aluminum alloy shutters are installed at both sides of the body and the back of the pump compartment,

    the ladders are installed on the back of the body at the right side.

    Technological requirements

    All welding panels and skeleton steels are through strict process of anti-rust, anti-corrosion and phosphating

    pickling. All the accessories,standard components are processed of galvanization,electroplate,Dacromet

    treatments and so on. After completing welding of the tank, the tank will be clear up and removed possible

    defects such as empty solder. And then it will be through 24-hour hydrostatic test to assure no leakage.


    The frame body

    Material

    The outer frame of the body are all high quality Q235A, the inner frame use high strength aluminum alloy,

    the bottom panel adopt aluminum panels with anodic oxidation treatment.

    The doors

    The doors are aluminum alloy structure with locks which are good sealing and dustproof.


    Water tank

    structureBuilt-in tank, all metal welding structure, the overall corrosion resistance, have shock absorption measures
    Material

    High quality carbon steel Q235A,3-5mm(bottom thickness 5mm,side thickness 4mm,

    top thickness 3mm)

    capacityWater 4000KG
    Structure1 DN 470mm inlet hole
    1 suction hole at the rear of pump room
    1 overflow valve device
    1 drain outlet with ball valve
    2 DN65 inlets at both sides, structure:ball valve with inside bend upturning pipeline

    Fire control system

    Consist of fire pump,fire monitor,pipeline system,system operation panel

    1,Fire pump


    Model NoCB20.10/15.30 fire pump

    CB20.10/15.30 fire pump

    TypeMedium/low pressure Centrifugal pump
    Rated flow30L/s@1.0Mpa;15L/S@2.0Mpa
    Outlet pressure≤2.0 MPa
    Maximum pumping height7m
    Maximum vaccum≥85kpa
    Priming deviceVacuum pump
    Priming time≤35s

    2,Fire monitor

    Model NoPS30-50D fire monitor

    PS30-50D fire monitor

    ManufacturerZhangqiu fire equipment co., LTD
    Rated flow30-50L/S adjustable straight stream/spray/mist spray
    Angle≥90°
    Rangewater: ≥50m
    Rotation angle≥360°

    3,Pipeline system

    Suction piping

    1 DN100 suction hole at the rear of the pump room with filter screen and pneumatic

    Butterfly valve switch

    Injection pipeline2 DN65 injection holes on both sides, 1 DN65 injection hole inside pump room.
    Injecting water to tankinjecting water from pump to water tank through 1 Φ65mm injection hole inside pump room
    Outlet pipelineTwo DN80 normal pressure outlets at the rear
    Cooling pipeluneCooling pipeline,control valve to cooling PTO
    Heat deviceTo raise temperature in pump room(optional)
    CoverAll inlet and outlet holes with covers

    Electrical equipments


    Display and control

    Marks on all operation buttons,with pipeline layout and operation/maintenance illustration.

    Dashboard lays upper-left in the pump room with RPM/Vacuum/water pressure/liquid level

    indicator and lighting/valves control switches

    PRM control of pump

    1.control in the drive cabin

    2.remote manual control in the pump room


    Additional electricalIndependent circuit
    Auxiliary lighting

    Headlamps are installed in the pump compartment and storage compartment. operating dashboard

    is equipped with lighting switch, indicator light.etc. It is convenient for observation.

    Side flashing lightA set of red and blue flashing lights are installed on both sides of the vehicle body.
    The warning device of the cabin

    Long red light 1 piece, which is installed on the top of the cabin;

    Electronic alarm 1 piece, which is installed in the cabin;

    The control box is installed below in front of the driver

    The fire lighting

    The fire lighting 1 piece

    24V,60W remote omni-directional rotation fire lighting

    The main powerThe vehicle battery is installed battery main switch.

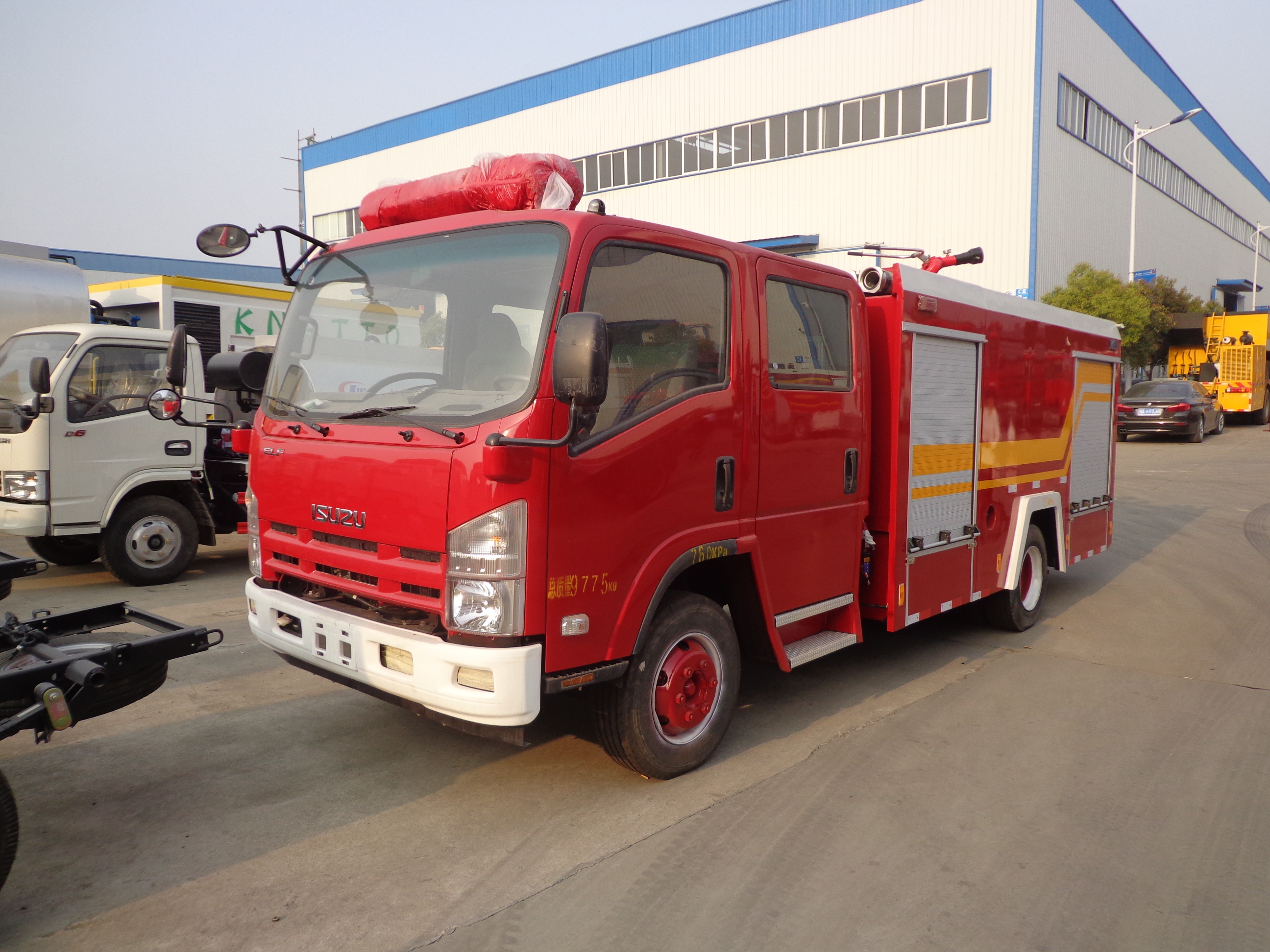

    Water Tank Fire Brigade Truck ISUZU 3.5ton 4t 4000 Liters Water Fire Fighting Truck


    Working Scene of water tank fire brigade truck

    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of water tank fire brigade truck I can order from your company?


    A: There are various sizes and types of water tank fire brigade trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied water tank fire brigade truck to any overseas companies?


    A: Yes,with need of government project,we offered water tank fire brigade trucks to many Africa and south-east Asian,south-American countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
