    4CBM Ready Mix Concrete Mixer Trucks 4000 Liters , 4X2 Mini FORLAND Self Mixing Concrete Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5060GJBLH5
    Certification : ISO, CCC
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 350units/month
    Delivery Time : 30 days after received advance payments
    • Product Details
    • Company Profile

    4CBM Ready Mix Concrete Mixer Trucks 4000 Liters , 4X2 Mini FORLAND Self Mixing Concrete Truck

    4CBM Mixer Truck 4000Liters 4X2 , MINI FORLAND 6CBM 6000L Cement Mixer Truck for sale


    Product Description

    1. Purpose: For short distance transporting concrete in construction site.

    2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.

    3. Chassis: Forland 3300mm 3400mm 3600mm wheelbase for optional.

    ConditionNew condition/Left hand drive/4x2
    ChassisBrandFORLAND
    Curb weight(kg)5980 kg
    Wheelbase(mm)3400 mm
    Dimensions(mm)6500*2350*3450 mm
    Overhang (front/rear) (mm)1230/1830 mm
    Approach/Departure angle(°)24/20 °
    Axle Load(kg)3500/7000 kg
    Max. driving speed(km/h)80 km/h
    ClutchReinforced diaphragm clutch
    Brakes

    Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

    Auxiliary brake: engine exhaust valve brake

    Steering GearPower steering, hydraulic steering with power assistance
    TireNumber6pcs with one spare tire
    Specifications8.25-16 nylon tire
    Batter2x12V
    Starter motor capacity24V
    Transmission5 Forwards and 1 Reverse with PTO
    CabinIt can accommodate three people, With Air conditioner
    EngineBrandYUCHAI
    ModelYCD4F22-110
    Displacement(ml)2799 ml
    Power(kw)/Horsepower/(HP)81 kw/110 HP
    Emission standardEuro 2
    Upper & Equipment
    Mixer drumMixing. Capacity4.0 CBM
    MaterialManganese Steel
    SpecificationFeeding Speed (m3/min)≥2.8
    Discharging Speed (m3/min)≥1.2
    Discharging Residual rate(%)≤0.5
    Mixing Tank Rotating Speed (RPM)0-15
    Discharging range180° full range
    Driving systemHydraulic PumpUS SUNNY brand
    Hydraulic MotorUS SUNNY brand
    ReducerChina local brand
    RadiatorChina local brand

    Water

    supply

    system

    Tank volume(Liters)200 Liters
    Water supply typePneumatic water supply
    Control systemControl WayConnecting Rod Controlling
    Structure Features

    1. Mixer Tank and Vane use special anti-resistant material.

    2. Discharging slot and feeding plate are the same anti-resistant material as the tank.

    3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.

    4. With US brand driving system. Discharging fast, no residue.

    Remarks

    1. Color is optional

    2. LOGO painting as per customer request

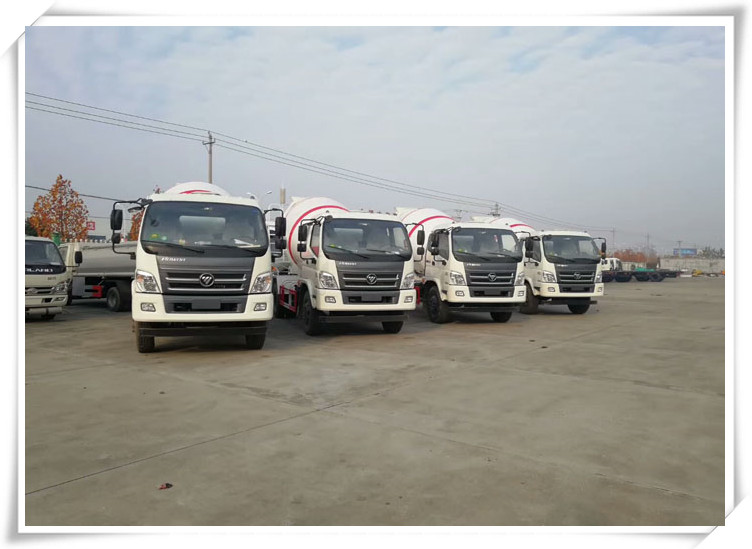

    Products Show

    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of Concrete Mixer Truck products I can order from your company?

    A: We can supply all size range concrete mixer truck and concrete mixer trailer, 3CBM, 4CBM, 5CBM, 6CBM, 8CBM, 10CBM, 12CBM and 2 axles and 4 axles concrete mixer semi trailer.


    Q2: What is your production standard of Concrete Mixer Truck products? Whether your concrete mixer truck can export to USA, Canada and Europen countries?

    A: Our CBU concrete mixer truck is produced as per China GB local standard, we can't export CBU concrete mixer truck to those countries, but we can export super structure to those market, we exported 30 units concrete mixer truck super structure to Canada market at the beginning of 2018.


    Q3: Have you supplied Concrete Mixer Truck to any renowned companies?

    A: Our group company is a regular strategic partner of some big construction company.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
