    ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5070
    Certification : CCC,ISO,SGS,BV
    Price : negotiable
    Payment Terms : D/A, D/P, Western Union, MoneyGram
    Supply Ability : 600Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    ISUZU Double Row Aerial Lift Truck 130hp 16 Meters Hydraulic Platform Truck

    ISUZU double row 130hp Aerial Platform Truck 16Meters hydraulic platform truck

    Product Description



    1. ISUZU Double Row Chassis, can carry 6 Passengers.

    2. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.

    3. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.

    4. 360 degree Rotation Arms.

    5. Arm and H Leg Automatic Locking System to secure safety handling


    Specifications of isuzu Aerial Platform Truck


    Drive model4×2
    ChassisQL1070
    Overall Dimension L*W*H mm8400×2050×3050
    GVW6810 kg
    Curb weight6485kg
    Wheel base mm3815
    Wheel track(front/rear) mm1504/1425
    Overhang (front/rear) (mm)1015/2280
    Approach/Departure angle(°)24/10
    EngineModel4KH1-TCG4
    TypeType 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging
    and inter-cooling
    Horse power120 hp
    Output volume2999 ml
    Emission standardEuro V
    Max. speed90 km/h
    Gearbox5 forwards & 1 reverse
    ClutchReinforced diaphragm clutch
    Steering GearPower steering, hydraulic steering with power assistance
    Fuel tank (L)120
    Tire7.00-16 , 7 pieces including one spare tire
    BrakesService brake: dual circuit compressed air brake
    Parking brake :(emergency brake): spring energy, compressed air operating on rear
    wheels Auxiliary brake: engine exhaust valve brake
    EquipmentMax operation height>=14m;
    max operation radius>=6m;
    max working platform height>=12.5m;
    working platform rating loading=250kg;
    working platform rating allowable passengers = 2; working platform dimension:
    1100*570*1000 mm; protection dimension:180*50*5mm;
    360°turning(left or right), 4 H-shape legs. 1.5 ton crane, Insulating material in the
    cage., the cage can be operated both in the air and on the earth.
    Delivery time30 days after the payment

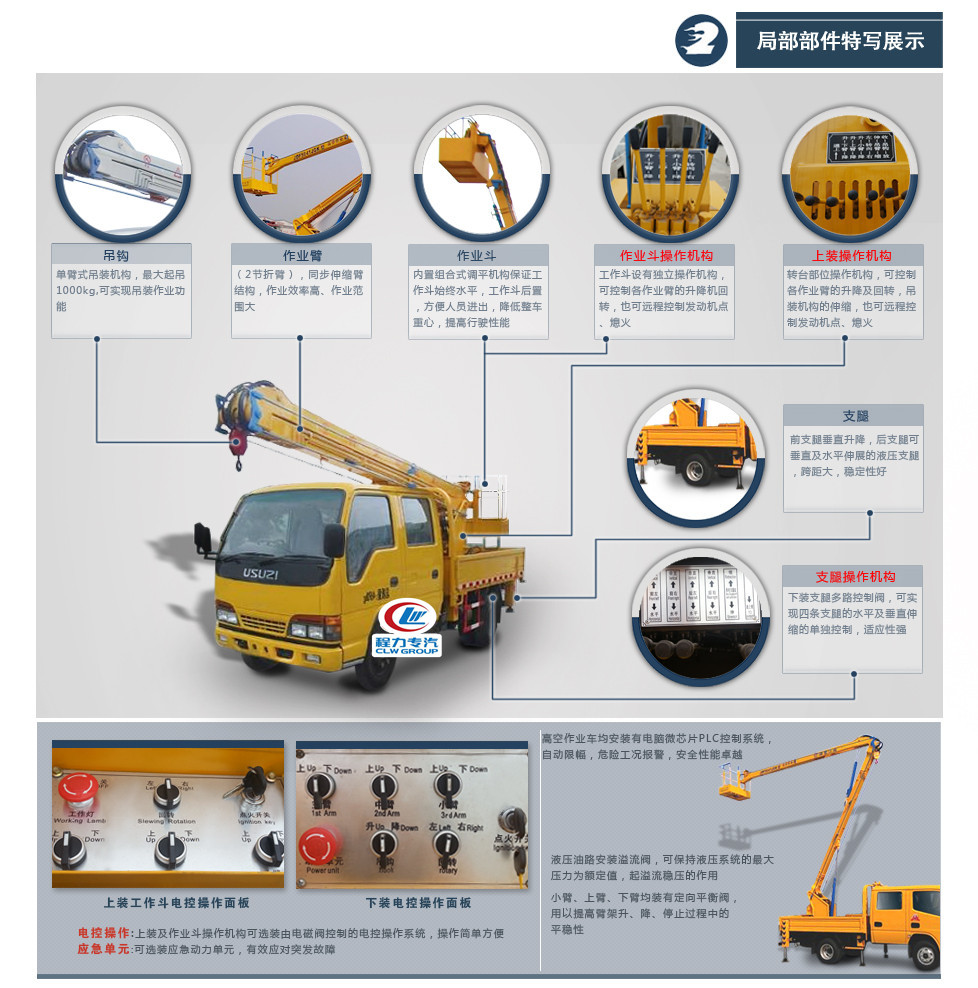

    Product Photos




    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ


    Q1: What kinds of aerial platform trucks I can order from your company?


    A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.


    Q2:: Have you supplied aerial platform truck to any overseas companies?


    A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.


    Q3 What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
