    Intelligent Asphalt Road Tanks Trucks And Trailers HOWO 8 X 4 Synchronous Chip Sealer Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5310
    Certification : CCC BV SGS ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 50 days after receiving deposit
    • Product Details
    • Company Profile

    Intelligent Asphalt Road Tanks Trucks And Trailers HOWO 8 X 4 Synchronous Chip Sealer Truck

    Intelligent asphalt Road Construction truck HOWO 8x4 Synchronous Chip Sealer Truck


    Product Description


    1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt

    2) System of 10tons bitumen distributor truck

    • manual/automatic control of spraying volume and working width,control of single spraying nozzle
    • control in cabin or rear working platform
    • automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
    • Heating system(10~15℃/h) to improve heating efficiency

    3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

    4) Italy burner for automatic fire and temperature control


    Specifications of Road Construction truck


    Item No.Parameters
    Chassis
    Overall Dimension12000x2500x3860mm
    Gross Vehicle Weight31000 kg
    Curb Weight21280 kg
    Loading Weight9590Kg
    Wheel Base1800+4600+1350 mm
    Front/rear Tread2022/1830 mm
    Approach/Departure Angle16/14 degree
    Front Axle7000kg*2
    Rear Axle18000kg*2
    Engine

    WD615.47,Weichai Diesel Engine,

    watering cooling, four stroke, 6 cylinder in line

    Engine horsepower371 HP EURO II
    Displacement9.726L (Diesel)
    Max Driving Speed90 km/h
    CabinHW79,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner
    Tire12R22.5 (12 pieces+1piece spare tire)
    Asphalt Tank9cbm
    Outside Material1.2mm Stainless plate
    Insulation layer40mm rock wool insulation layer,≤20℃/8h
    Inside tank material4mm carbon steel
    Gravel Tank14cbm
    Gravel sizeS3~S24mm
    Asphalt pumpQGB680,680L/min
    Camera2 pcs,monitoring the operation scene
    Hydraulic System
    Hydraulic pumpBRY50-20-16
    Driving Motor05-130-BD31
    Proportional ValveEFBG-03-160-HF/Taiwan brand
    Shuttle ValveShanxi Yuci brand
    Overflow ValveShanxi Yuci brand
    Control System
    Control SystemCLW-32-01/Germany Siemens
    Control MethodComputer control
    Smart asphalt nozzle32 pcs
    Camera and MonitorCamera at the rear of gravel bucket and color monitor screen at cabin
    Heating System
    Heating methodAutomatic heating by oil
    BurnerG20/Italy brand
    RadiatorRISEN brand
    Heat transfer oil pump40-25-160
    Gasoline Engine6kw
    Spreading Width4.5m
    Spreading Speed0.3~3.5L/min
    Spreading Precision±2%
    Reference Pictures of road construction truck

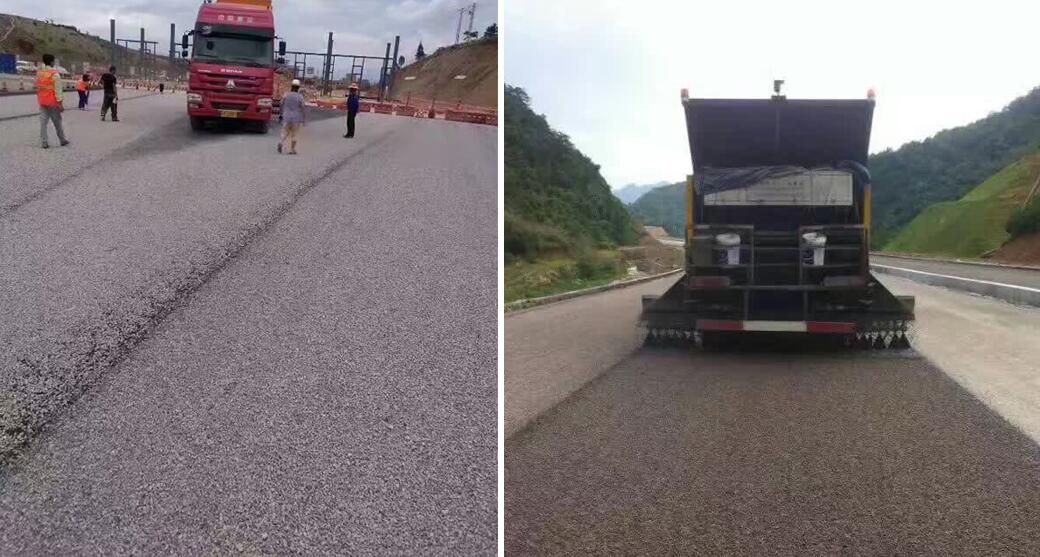

    Work Scene of road construction truck



    Key parts of bitumen distribution truck



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment



    FAQ


    Q1: What kinds of road construction truck I can order from your company?

    A: We can supply various sizes of road construction truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.


    Q2: What is your production standard of road construction truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

    A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.


    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q4: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
