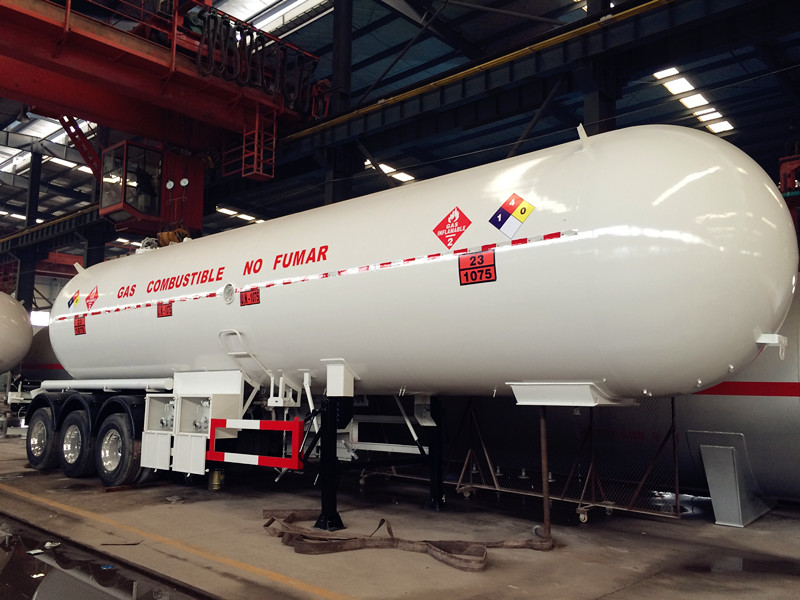

Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers

    Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers
    • Buy cheap Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank from wholesalers

    Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9401
    Certification : ASME,CCC,BV,SGS
    Price : negotiable
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    Semi Trailer LPG Gas Tanker Truck 14000Gal 54000 Liters In Hemispherical Dish End Tank

    LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank


    Product Description


    LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank


    1. Medium: LP GAS, Propane, Butane, Ammonia, etc.

    2. Desing Pressure: 1.61Mpa/ 16.1bar, 1.91bar/19.1bar.

    3. Tank Shape: Bullet Tank in Horizontal Cylinder Shape

    4. Tank Nozzle Type: Flange Type, NPT, Quick Coulping.

    5. Valve Brand: REGO, MEC, Rochester.


    Specifications of LP Gas Delivery Semi-Trailer Truck 14000Gal 54000liters in Hemispherical Dish End Tank


    50BM LPG Tank Trailer
    Volume of Tank54 CBM / 54,000Liter
    Trailer Weight15,000 kg
    Thickness of Shell (mm)11.5 mm
    Thickness of Endplate (mm)8 mm
    Tank Diameter (mm)2300 mm
    External Dimensions (mm) (length x width x height)13000 x 2500 x 3950 mm
    Material of Tank and Main Pressure PartsCarbon Steel Q345R
    Filling MediumPropane
    Design Pressure1.61 MPa / 16.1 Bar
    Hydraulic Test Pressure2.20 Mpa / 22.0 Bar
    Air Tightness Test1.61 MPa / 16.0 Bar
    Corrosion Allowance1 mm
    Filling Ratio520 kg/ cbm
    Manufacturing StandardGB 150-2003
    Chassis Specification
    ItemSpecification
    Main BeamsHeavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes
    Axle3 pieces of German Brand BPW Axle
    Landing GearJOST Two-speed, manual operating, heavy duty landing gear
    King PinJOST 2”standard bolt-in king pin
    SuspensionGerman design mechanical suspension
    Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Tire11R22.5 tubeless tire, 8.25R22.5 wheel rim, 12 Sets with one spare tire
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

    Nozzle Specification
    Liquid Inlet & Outlet Coupling2 No, 2" Flange Type
    Vapour Coupling1 No, 2" Flange Type
    Safety Relief Valve1 Nos., 2” NPT,
    Excess flow internal valve for liquid inlet &outlet2 No., 2” NPT,
    Excess flow internal valve for vapor1 No., 2” NPT
    Pressure gauge1 No., 3/8”or ¼’’NPT, 4” Dial 0-35 Kg/cm2,
    Needle valve for pressure gauge1 No., 3/4” NPT,
    Temperature gauge1 No., ½ ” BSP,4” Dial 0-100 0C,
    Rotor gauge1 No., 1” NPT,
    Ball valve for liquid inlet & outlet2 No., 2” Single Piece Full Bore Class 300
    Ball valve for vapor line1 No., 2 ” Single Piece Full Bore Class 300
    ManholeDN 450MM


    How do we produce a lpg tanker trailer?



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment



    FAQ


    Q1: What kinds of LPG products I can order from your company?


    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?


    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
