    LPG Tanker Tri Axle Semi Trailer 49.6CBM 20MT For Liquid Petroleum Gas Transportation

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9401
    Certification : ASME,CCC,BV,SGS
    Price : negotiable
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after receiving deposit
    • Product Details
    • Company Profile

    LPG Tanker Tri Axle Semi Trailer 49.6CBM 20MT For Liquid Petroleum Gas Transportation

    Tri-axle 49.6CBM 49600liters 20Ton 20MT LPG Tanker Semi Trailer


    Product Description


    1) LPG tanker trailer is used to transport liquid petroleum gas in large quantity.we can offer lpg tanker trailers from 40cbm to 60cbm,

    2) Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    3) Optional accessories:ROCHESTER level gauge,flow meter,sunshelter

    4) Available tanker trailer capacity:18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons


    Specifications of Tri-axle 49.6CBM 49600liters 20Ton 20MT LPG Tanker Semi Trailer


    Tanker Essential Information
    Volume of Tank (cbm)49.6
    Overall Dimensions(L*W*H)(mm)12740*2480*3800
    Tank Dimensions(Inner Diameter*thickness*Length)2300*12*12372
    Estimated Tare Weight (kg)15300
    Payload(kg)20830
    Total Weight(kg)36132
    Wheelbase(mm)6800+1310+1310
    Shell of Tanker
    ProductsLiquefied Petroleum Gas (propane)
    Fluid PropertyFlammable
    Design Temperature(℃)-19℃~50℃
    Design Pressure(MPa)1.61
    Corrosion Allowance(mm)1.00
    Weld Joint Factor1
    Major Materials of Bearing PressureTanker body:Q345R,12mm,
    End plate:Q345R,12mm,double ellipse
    Main beam:16Mn
    Detection
    Heat TreatmentOverall treatment in a furnace,600℃ to 640 ℃
    Flaw Detection100% Flaw detection
    Hydraulic Test(MPa)2.21
    Manhole (As Customer’s Requirement)
    Quantity1;on top,DN450
    Safety Valve(As Customer’s Requirement)
    Quantity2
    LocationOn the top of tanker
    SizeDN50 or As Customer’s Requirement

    Level Gauge

    3*13T Fuwa

    TypeManuel rotation type
    LocationAt the rear of the end plate
    Running System
    Axles3*12T BPW brand
    Tire12R22.5 Tubeless tire ,12 with one spare tire
    Landing legJOST
    King Pin#50 or #90
    Control System
    Emergency Cut-off Valves2
    Ball Valve2
    Liquid Gauge1
    Thermometer1
    Pressure Gauge1
    Accessories
    Tool Box2
    Wheel Carrier1
    Fire Extinguisher2
    Fender6
    PaintAs Customer’s Requirement

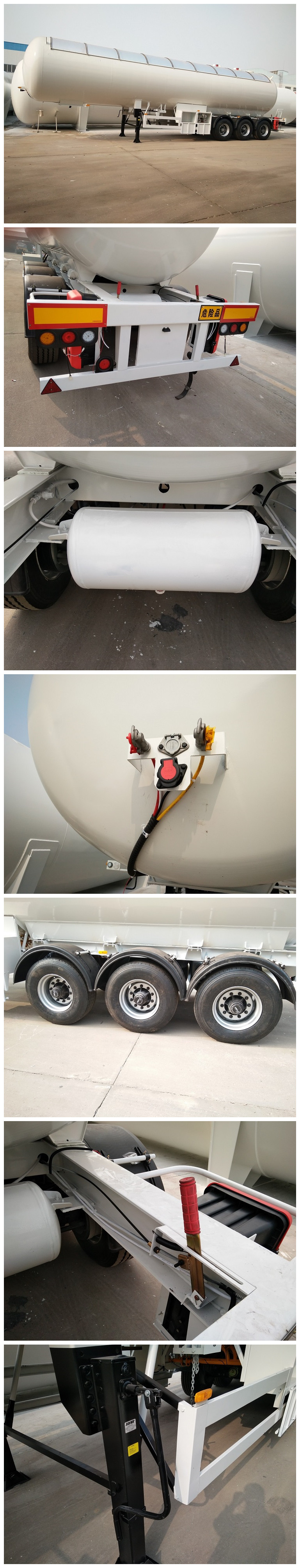

    How do we produce a lpg tanker trailer?



    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipment



    FAQ


    Q1: What kinds of LPG products I can order from your company?


    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?


    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?


    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.


    Q4: What about warranty?


    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?


    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
