8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW598D
Certification :	CCC,ISO,
Price :	Negotiable
Payment Terms :	L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Supply Ability :	500Unit Per Month
Delivery Time :	20-30 Days

Add to Cart

Product Details
Company Profile

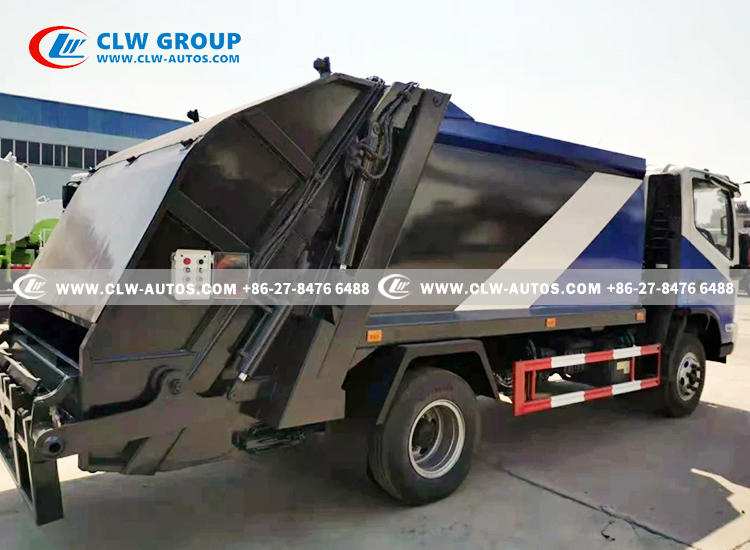

8CBM Foton Compressed Garbage Truck Dirt Debris Collection Truck

1. Rear loaders have an opening into a trough or hopper at the rear that a waste collector can throw waste bags or empty the contents of bins into. Often in many areas they have a lifting mechanism to automatically empty large carts without the operator having to lift the waste by hand.

2. Another popular system for the rear loader is a rear load container specially built to fit a groove in the truck. The truck will have a chain or cable system for upending the container. The waste will then slide into the hopper of the truck.

3. The modern rear loader usually compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall. In most compactor designs, the plate has a pointed edge (hence giving it the industry standard name packer blade) which is designed to apply point pressure to the waste to break down bulky items in the hopper before being drawn into the main body of the truck.

Key Features:

---- Foton chassis, perfect performance
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 22 Cublic Meter.
---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specification

8cbm 8000Liters Foton compactor garbage truck
Vehicle name	Compactor Garbage truck		Chassis:	FOTON Aumark
Outline size(L×W×H) (mm)	7580 23702850		Empty mass(Kg):	5700
Full mass(kg)	7584		Emission standard	Euro 3
Engine Information
Model	ISF3.8s3154		Type	Diesel engine
Power	156HP		Brand	CUMMINS
Chassis Information
Wheelbase(mm):	3800		Axle load(kg) F/R	2850/6000
Tire	7.50R16		Max speed (km/h):	95
Front suspension(mm)	1165		Rear suspension(mm)	2460
Front track(mm)	1685		Rear track(mm)	1610
Approach angel(°)	22		Departure angle(°)	14
Steering	Power steering		Brake	Air brake
Cabin	Straight head 1 row, allow 3 persons
Special function
Bucket capacity(L)	8000	Filling work cycle time (s)			15-20

Reference photos

Compactor Carbage Truck Production Process

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
