HOWO 5000liters 2.5T LPG Bobtail Truck With Dispenser Cooking Gas Tanker

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20211123
Certification :	ISO9001, CCC, BV, SGS
Price :	29800-39800USD/unit
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

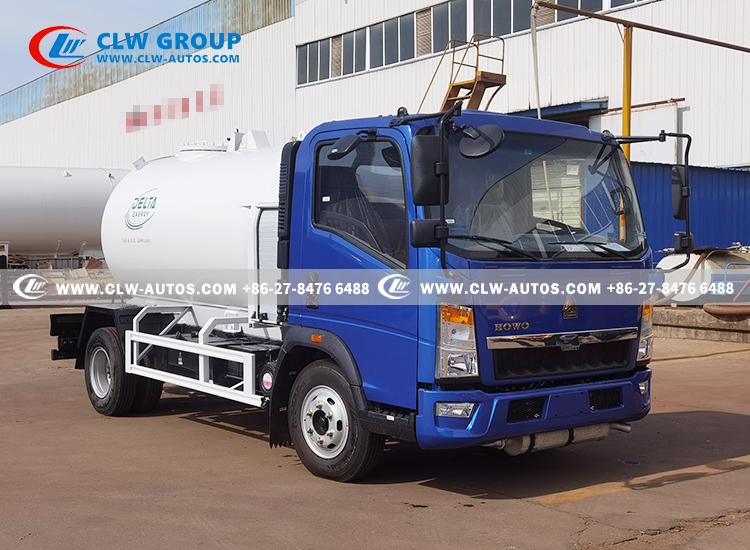

HOWO 5000liters 2.5T LPG Bobtail Truck With Dispenser Cooking Gas Tanker

HOWO 5000liters 2.5T LPG Bobtail Truck With Dispenser Cooking Gas Tanker With Cylinder

LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.

With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.

1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.

2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,

3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box

5) Truck Specificaton of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

Item No.	Parameters for Sinotruk HOWO 6 wheeler mobile LPG tank gas cylinder filling truck 5000Liters LPG bobtail for Nigeria
Overall Dimension	7600x2300x2980 mm
Driving Model	Left hand drive or right hand drive
Gross Vehicle Weight	8160 kg
Curb Weight	5820 kg
Payload	2300 kg
F/R Axle Loading	2400/4200 kg
Wheel Base	3360 mm
Front/rear Tread	1886/1845 mm
Approach/Departure Angle	27/20 degree
Engine	YN4102QBZL,
Engine horsepower	116 HP EURO3
Displacement	3760mL (Diesel)
Max Driving Speed	95 km/h
Gear Box	WLY646,6 forward& 1 reverse
Cabin	2~3 Passenger allowed,with A/C
Tire	7.50R16 (6 pc with 1 spare)
LPG tank
Volume:	8~10cbm
Tank material:	Q345R
Tank diameter:	1800mm
Tank thickness:	10mm
End plate	10mm
Tank length:	As designed
Gas phase	DN50
Liquid Phase	DN50 or DN80 for option
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Level Gauge	Manual rotation type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	1
LPG pump	1
LPG Volume Flow Meter	1
Filling Hose	15 meters
Filling Nozzle	1pc,Standard for 12.5kg cylinder
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher holder	2

(liquid and vapour phase of lpg rigid truck) corken vane pump of lpg rigid truck

Manufacturing and testing of the tanks are made under supervision of an independent inspection body.
Fine grain pressure vessel steels are used for manufacturing the tanks. Metallurgical and mechanical properties of the steels are tested and verified.
All welded joints are tested according to the manufacturing standard. A combination of X-ray, ultrasonic, dyepenetrant and magnetic particle tests is utilized.
After manufacturing. all tanks are subjected to hydrostatic pressure test. After this test, the connections of tank accessories are tested against leaks, using nitrogen.

Production Process of Propane Gas Storage Tank

FAQ

Q1: What kinds of lpg bobtail I can order from your company?

A: We can supply lpg bobtail from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.

Q2: What is your production standard of lpg bobtail? Whether your lpg bobtail exported to others countries?

A: lpg bobtail is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.

Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our salesmen are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
