    HOWO Sewer Suction Vacuum Waste Collection Tanker 16cbm

    Ask Lasest Price
    Brand Name : CLW /Weiyu Brand
    Model Number : CLW5251GXWD5
    Certification : CCC, ISO
    Price : negotiable
    Supply Ability : 500 units/month
    Delivery Time : 10-20 Work Days
    • Product Details
    • Company Profile

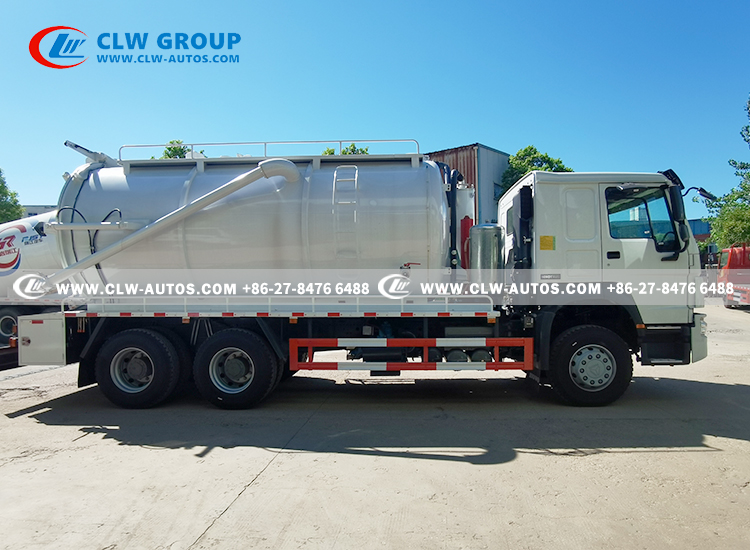

    HOWO Sewer Suction Vacuum Waste Collection Tanker 16cbm

    HOWO 16cbm Sewer Suction Vacuum Waste Collection Tanker


    1. Tandem axles vacuum trucks (water or vacuum trucks) are designed to fit on an under 10ton GVW chassis.
    2. Tanks are built using high strength steel with dished and flange tank heads.
    3. Our finish process includes both inside and outside epoxy coatings. Epoxy interior paint inside the tank will extend the life of your investment.
    4. Exterior baked on enamel, including metallic and base-coat clear cote options will ensure that your truck image will match the quality of the work you do.


    Product Features:

    CLW GROUP offers a full range of vacuum tanks used in the industrial plants, oil and gas industry, and sewage/septic markets.
    Our industrial vacuum tanks install to a burden carrier of pull behind cart/trailer, used to vacuum out oil pits, paint pits, and other functions in large industrial plants.
    The oil and gas industry utilize the vacuum tanks as water tanks, hauling frak water from frak sites to disposal sites. We also offer a full range of tanks to haul drip gas or chemicals
    Septic/Sewage trucks can be built to fit your chassis.
    We offer Jurop vacuum pumps.
    Atestainless steel tank construction, and custom sizes are a few of the available options.


    Vehicle Description
    Overall dimensions9800*2500*3700mm
    GVW25000kg
    Mass in working order12800kg
    Chassis brandHOWO
    Traction type6*4
    Tanker Description
    TankerCapacity16000L
    Material6mm thickness, high quality carbon steel
    StructureWelding, vacuum tank, Cylindrical
    PumpTypeDouble vacuum pump
    Flux68(L/S)
    Rating speed800~1000(r/min)
    Shaft power5(kw)
    FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiency
    ManufactureHangzhou WEILONG Pump Co., Ltd.
    PipeSuction and discharge pipe
    Special functionSuction time ≤ 5mins,
    effective suction range ≥ 8,
    Max vacuum degree ≤ 15 Kpa,
    dump angle ≥ 45
    Standard configurationEquipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
    Cylinder vacuum tank can be lifted hydraulically to
    40-45 degree. Rear door can be opened and closed hydraulically.
    Optional configurationTanker material: stainless steel.
    Vacuum pump : Italy or Spain vacuum pumps.
    Anti-rust coating inside tank
    Chassis Description
    Chassis modelSINOTRUK HOWO
    CabSleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
    Traction typeLHD
    Drive type6x4
    Wheelbase4325+1350mm
    Tire specification12.00R20
    Tire quantity10+1 units
    EngineEngine modelWEICHAI
    Emission levelEuro 2
    Displacement/output9726ml
    Horse power336hp
    Gear boxModelHW19710
    Number of gears10 forward gears & 2 reverse, synchronized
    Brake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
    AxleFront9T- Elliot type, I beam section
    Rear16T*2-Single reduction, ratio 5.143
    SuspensionFront8/8- Leaf spring with shock absorber
    Rear9/9-Leaf spring
    Fuel tankerTypeSteel fuel tank, with lockable cap
    Capacity350L





    Sales Service


    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



    FAQ


    Q1: What kinds of sewer vacuum truck I can order from your company?

    A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: What is your production standard of sewer vacuum truck? Whether your sewer vacuum truck can export to USA, Canada and Europen countries?

    A: Our CBU sewer vacuum truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.


    Q3: Can we adopts International brand sewage pump for sewage suction truck?

    A: Sure, we already cooperated with Italy Jourp and a Germany brand.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
