    Stainless Steel Isuzu Drinking Water Delivery Truck 20000 Liters

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5252SSC
    Certification : ISO, CCC
    Price : 13250-35560USD/UNIT
    Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 300units/month
    Delivery Time : Within 30days after received advance payments
    • Product Details
    • Company Profile

    Stainless Steel Isuzu Drinking Water Delivery Truck 20000 Liters

    Stainless Steel Isuzu 20000 Liters Drinking Water Delivery Truck

    water delivery truck can be divided into various types as follows,

    1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc water delivery truck;

    2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 water delivery truck;

    3) according to steering,there are left hand drive and right hand drive water delivery truck;


    Feature

    -- Square or round shape tank shape;

    -- Isuzu FTR truck chassis,durable with perfect working performance;

    -- powerful and reliable diesel engine,easy to get spare parts in local;

    -- Chinese brand weilong brand water pump;

    -- Front flush,rear and side sprinkler;

    -- 360 ° rotation adjustable green water cannon;

    -- Vertical suction distance ≥7 meters;

    -- Width of front flush and sprinkling ≥14 meters;

    -- Range of water cannon ≥35 meters;


    1: Dust Control
    Construction and mining sites kick up a lot of dust that would impede progress without water trucks with 2,000-4,000-gallon tanks that tamp down dust very efficiently by following a grading equipment that is leveling and preparing soil for work.

    Dusty jobsites not only slow down work but increase health risks such as eye and lung irritation, bronchitis, asthma and heart disease, and by dampening dust, water trucks remove them from the air that miners and construction workers are breathing.


    2: Firefighting
    Water trucks are especially useful in remote, rural areas where there are no fire hydrants to help put out fires. These trucks transport water needed by firefighters to not only control fires but dampening fire-prone areas that are likely to be consumed in the blaze.


    3: Soil Compaction
    Soil must be compacted to create a flat, even ground at construction sites so that buildings, roads, bridges etc. can be built safely. When soil is compacted with heavyweight compacting tools like rollers, rammers and vibratory plates, the air component is removed from the soil while keeping the water content intact.

    Too much water will make the ground sludgy and unstable. Too little water will not let the dry soil particles adhere to each other either. Water trucks not only provide a portable and ready water source at construction sites, they also provide just the right amount of liquid to maintain good water to soil ratio to create strong and stable compaction.

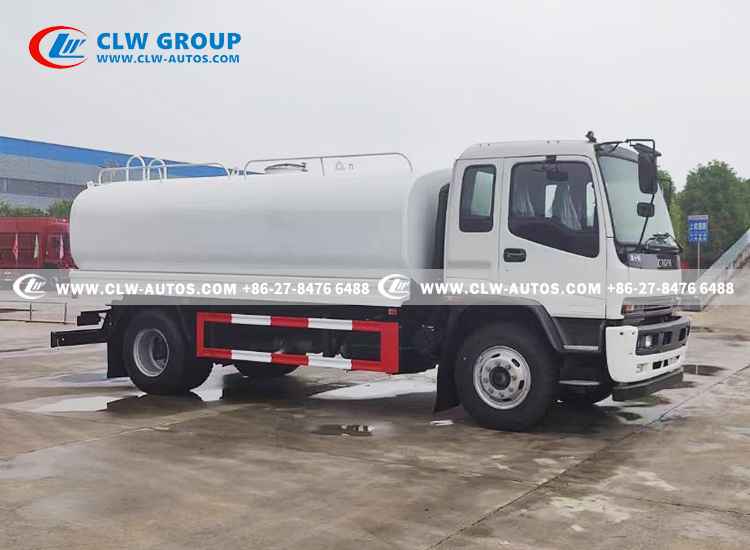

    Reference picture


    Specification
    ModelISUZU FTR 20000 liter water tank bowser truck
    EngineMaker: CLW GROUP
    Diesel 4 stroke direct injection diesel engine,
    6 cylinder in-line with water cooling,turbo-charging & intercooling
    Engine model: 4HK1-TCG60,205HP
    Max torque: 1350NM@1100-1600rpm
    Bore/Stroke(mm):126/130
    Mean Position Speed: 9.53m/s
    Compression ratio:15.5:1
    Displacement: 5.193L
    Specific fuel consumption: 198g/Kwh
    ClutchΦ430 Diaphragm type
    TransmissionIsuzu MLD
    Front Axle6.3Tons
    Rear Axle13 Tons
    ChassisFrame: U-profile parallel ladder with U-profile riveted cross members
    From suspension:9 semi-elliptic leaf springs and stabilizer
    Spare wheel carrier: with one spare wheel
    Fuel tank: with one 300L lockable fuel tanks
    Steeringintegral type power-steering
    Wheel & TypesSpring: 10/12,4/12
    Tyre: 295/80R22.5 18PR
    Radial tire and tubeless tire is optional
    Driver's cabVC61 , flat head, tippable, one sleeper with A/C
    Fuel consumption (L/100km): 36
    Dimensions in (mm)Wheel base : 4500
    Dimension(mm): 7420×2530×2810
    Max. speed (km/h): 95
    Max. gradeability(%): 25
    Front overhang (mm): 1500
    Rear overhang (mm): 2625
    Rear track (mm): 1830
    Approach angle: 16 degree
    Departure angle: 15 degree
    Water tank capacityCapacity: 20CBM
    Length: 6.7m
    Thickness of steel: 4mm
    With high pressure spray gun and sprayer in front and rear

    Operation of water delivery truck

    Key word: water truck,water cart,water tanker truck,isuzu water truck,5000liters water truck,5tons water truck,5000L water truck,water bowser,water truck for myanmar,water truck for cambodia,water bowser for vietnam
