    Isuzu FTR 12m3 Oil Transport Fuel Tanker Truck For Southeast Asia South America Market

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW589DH
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    Isuzu FTR 12m3 Oil Transport Fuel Tanker Truck For Southeast Asia South America Market

    Isuzu FTR 12m3 Oil Transport Truck Fuel Tanker Truck For Southeast Asia South America Market

    Truck Chassis Main Specification:

    1. Isuzu chassis with one and half row cabin

    2. Diesel Engine,4HK1-TC50, 205HP, EURO-5

    3. Steering Wheel: LHD, Left Hand Drive

    4. Japan brand MLD 6 Speed Transmission/Gearbox

    5. Front Axle, 6.3Tons Capacity, 1 pieces; Rear Axle: 13Tons

    6. Tire: 11R22.5

    Upper Body Main Specification:

    1. Tank material: carbon steel

    2. Tank capacity: 12cbm, 12000liters, 12000L

    3. Tanker compartment: Optional 1,2,3,4 compartments

    4. Optional accessories: over flow probe system, vapor recovery system, bottom valve, API adaptors, fuel pump, refueling dispenser, flow meter, dipstick etc.


    Specifications of 12000 liters Fuel Delivery Truck

    Vehicle Description
    Overall dimensions8250x2500x3200mm
    GVW16000kg
    Curb weight5675kg
    Chassis brandJapan I suzu
    Traction type4*2
    Tanker Description
    Tank capacity12cbm, 12m3, 12000liters, 12000L
    Tanker materialCarbon steel
    ThicknessTanker body5mm
    End cover5mm
    Tanker shapeSquare
    Tanker compartment1 compartment (optional: several compartment)
    Standard configuration1 set manhole .
    Equipped with double discharge valve and valve box.
    Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox.
    Electrostatic conducting tape and double fire extinguishers.
    OptionalTanker material: stainless steel, aluminum alloy, carbon steel
    Chinese standard configuration is available, or other world famous fuel configuration.
    over flow probe system, vapor recovery system, bottom valve, API adaptors.
    Emergency bottom valve and foldable aluminum handrail.
    Others: fuel pump, refueling dispenser, flow meter,dipstick, etc.
    Chassis Description
    Cab3 Passenger , with air-conditioner.
    Wheelbase4700 mm
    Tire specification11R22.5
    Tire quantity6+1 units
    EngineEmission levelEuro 5
    Brand4HK1-TC50
    Horse power205 HP
    Gear boxNumber of gears6 forward gears& 1 reverse
    Brake systemAir brake
    AxleFront6300kg
    Rear13000 kg
    SuspensionLeaf springs
    Fuel tankerTypeSteel tanker, with lockable cap
    Capacity160L

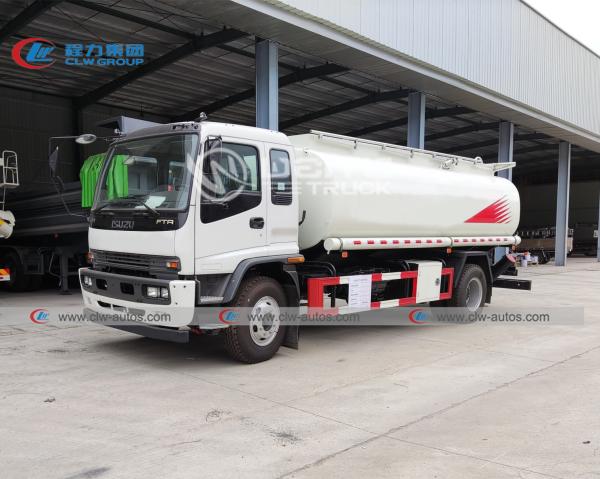

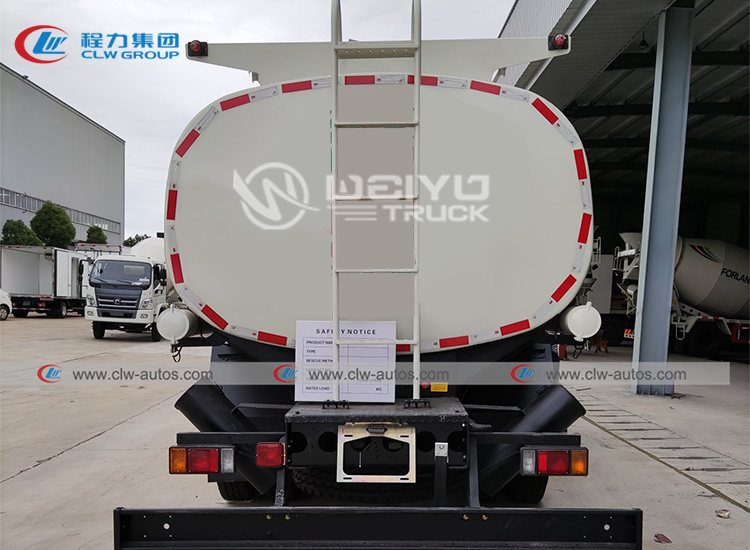

    Reference photos

    Factory overview



    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?

    A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.


    Q2: What is your production standard of Fuel Dispenser Tanker Truck products?

    A: China GB local standard.


    Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?

    A: Sure, we already cooperated with many international brand supplier.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
