    Foton Aumark RHD Carbon Steel Water Tank Truck 8000L For Spraying

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW202020708
    Certification : CCC,ISO,GCC,DOT
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    Foton Aumark RHD Carbon Steel Water Tank Truck 8000L For Spraying

    Foton Aumark RHD 8000L Carbob Steel Water Tanke Truck For Spraying

    Chassis parameters:

    1. Chassis brand: Foton Aumark 4x2 right hand driving
    2. Cabin: single row cabin
    3. Engine: Cummins diesel engine 145hp Euro 3 emission standard
    4. Front/rear loading weight: 2.5t/6t
    5. Gearbox: 6 speed forward with 1 reverse, manual type


    Upper body parameters:
    1. Tank volume: 8cbm, 8m3, 8000liters, 8000L
    2. Tank material: High Tension Steel Q235/Q345,stainless steel 304 for option
    3. Sprinking Width: ≥14M
    4. Rear working platform with water cannon range of portable water truck: ≥28M
    5. Reliable and high quality water pump.


    Features:1. The water tank truck adopts Shacman chassis for loading, equipped with tanks, loading tank assembly, self-suction pump, power rotation system, piping system and sprinkler assembly.
    2. It is equipped with the functions of adjusting sprinkler to change sprinkling directions and angles to adapt different demands.
    3. Antiaircraft gun can be used for urban and rural plants, and fire emergency.
    4. The rear bottom is equipped with cylindrical nozzles, which can pour the dust fall from the middle sprinkler,
    5. The top duckbill nozzles can irrigate the flowers and trees on both sides.
    6. With the functions of spraying, pressing dust, high-low position spraying, and flushing guard bars and barrier belts.
    7. With intelligent control system, drivers can complete various operations in the cab.

    Product descriptions

    Vehicle modelFoton AUMARK
    CabinSingle row
    Whole vehicle main dimensionsOverall dimensions (LxWxH)mm7400mm*2460mm*2500
    Wheel base(mm)3800
    Weight dataCurb weight(kg)5800
    Gross vehicle weight(kg)15000
    Persons in cab2
    Whole vehicle main performanceMax. speed(km/h)90
    ENGINEModelF3.8S3141
    Emissions standardsEuro3
    Displacement(L)3.76
    Rated Power(kw/rpm)105
    Max torque (N.m/rpm)450
    GearboxModel6TS55
    Front axleType/Mainreducetion ratio2.5T
    Rear axleType/Mainreducetion ratio6T
    Brake systemService brakeDrum pneumatic braking
    Parking brakeCentral drum brake
    Auxiliary brakeEngine exhaust brake
    Wheels and tyre size6+1(8.25R16)

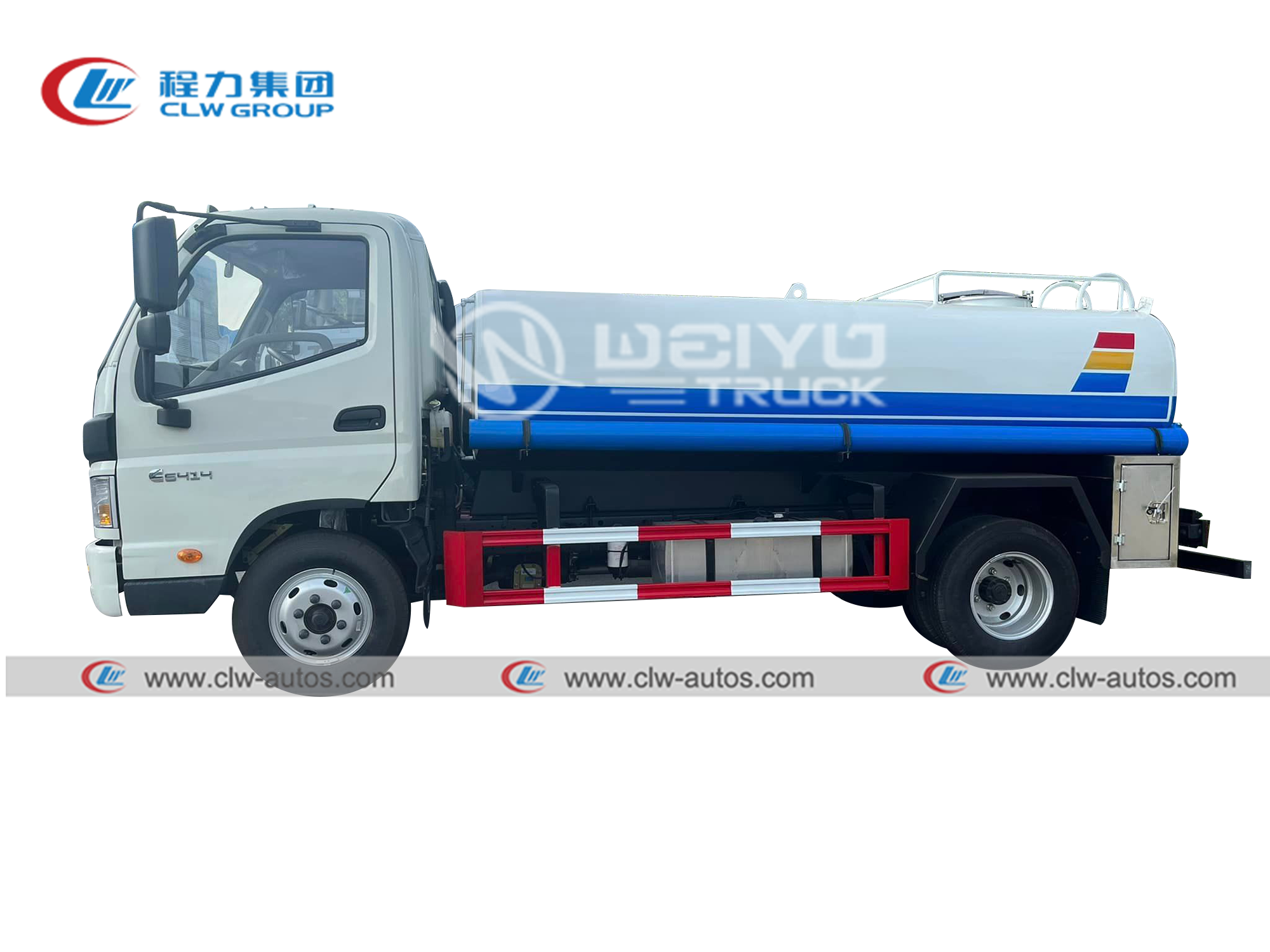

    Reference photos for water bowser truck

    Main exporting countries

    1. Asia: Nepal, Pakistan, India, Indonesia etc.

    2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica,Tobago etc.

    3. Africa: Kenya, Lesotho, Botswana, Seychelles, Mozambique, Namibia etc.

    4. South Africa: Uganda, Zambia, Tanzania, Zimbabwe etc.


    Water Truck Diagram:


    Working Show

    Company certificate

    Successful case


    After-sale service

    a. Before purchasing:

    1-Quick reply on customers' inquiry;

    2-Professional suggestion on truck choice according to different countries.

    3-Details quotation with spec.and reasonable price.

    4-Welcome to visit our company before purchasing.

    b. After purchasing:

    1-Production pictures and video updated every week.

    2-Customer can visit factory after truck completion or arrange third party inspection.

    c. After-sales service:

    1-English Operation Video

    2-Free operation and technical train at factory but not include accommodation

    3-Spare parts supplied at factory price whenever needed.

    4-Engineers can be sent to your country and offer local engineering support and train.
