    2.5cbm 2.5m3 Mobile Self Loading Concrete Mixer With 240 Degree Rotation Function

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW-400
    Certification : CCC. ISO9001. CE
    Price : 17000-30000USD/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 20 working days after receiving the deposit
    • Product Details
    • Company Profile

    2.5cbm 2.5m3 Mobile Self Loading Concrete Mixer With 240 Degree Rotation Function

    2.5cbm 2.5m3 Mobile Self Loading Concrete Mixer With 240 Degree Rotation Function Truck

    Product descriptions:
    Overall size: 6380*2470*2820mm
    Engine: YUNNEI 76kw
    Concrete output productivity: 2.5 cbm

    Tire: 16/70-20
    Self rotation angle: Turbo-Wom rotation with 240°rotation function
    Rotation speed:21R/min
    Accessories of Self Loading Concrete Mixer :
    1. double reverse camera
    2. Air conditioner
    3. Automatic weighting system with printer
    5. Hydraulic Torque Converter Transmission
    6. 4 wheel drive ,articulated style.
    7. automatic upper water system ,with pump and pipes
    8. Preheater for engine ,heater in Cabin,
    9. Warning light, back sound, radio, fan, hand brake, extinguisher, window hammer, easy damaged spare parts ,tool box.


    Specifications

    NameItemSpecification
    Overall machineNet weight5800kg
    Overall size6380*2470*2820mm
    TransmissionFull Hydraulic
    4WD
    BrakeAir brake
    ChassisOff-road
    Wheelbase2600mm
    Loader bucketCapacity0.3cbm
    ControlHydraulic
    Tilt Angle30%
    SpeedHigh speed0-25KM/H
      Low speed0-9KM/H
    Min turning radius3.3m/r
    Tyre Model16/70-20
    EngineTypeYunnei
    Rated Power/RPM76KW/2400RPM
    Max Torque/RPM460N.W/1400RPM
    Cylinder4
    StarterElectric
    Cooling typeWater Cooling
    Maxing Drum


    Drum full capacity3.5cbm
    Drum work capacity2.5cbm
    Bank angle16°
    Self rotation angle240°
    Rotation speed21R/min
    ChuteSwing Angle≥60°
    Angle controlHydraulic
    Size110CM
    LoaderWeight modelComputer control
    Concrete standardC15.C20.C25.C30
    AccuracyCement≤±2%/time
    Relative error≤±3%/time
    Water≤±1%/time
    Additive≤±1%/time
    Admixture≤±2%/time
    Loader controlHydraulic control 4 way stick

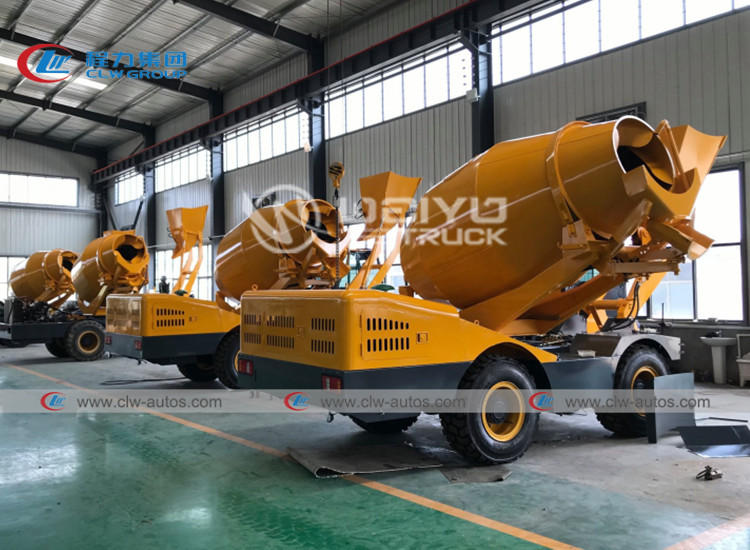

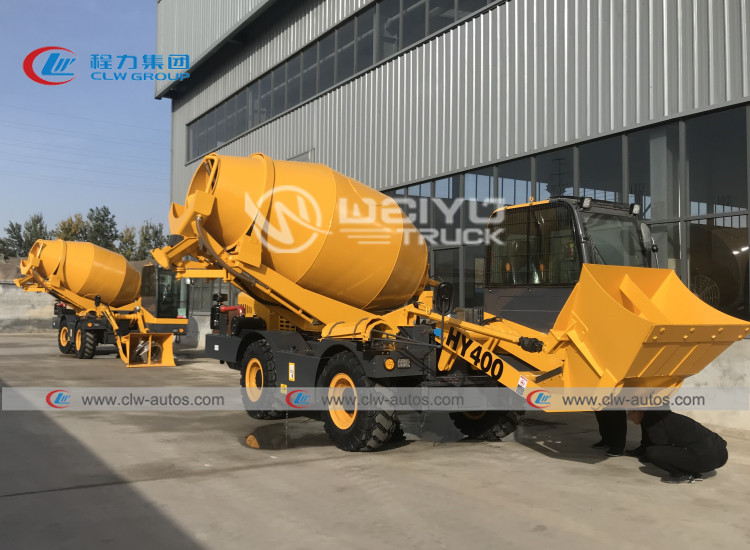

    More detailed pictures for Mobile 4CBM 4.5CBM Self Loading Self-Loder Cement Concrete Mixer Truck

    with 270° Degree Rotation Function:


    Why choose us

    CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

    (1)Competitive price and excelletn quality;
    (2)More than 15 year's export experience as a manufacturer;
    (3)Over 8000 workers and 100 senior engineers;
    (4)CCC, ISO,BV, ASME certification;
    (5)400 kinds of trucks and trailers;
    (6)Trucks covering more than 90 countries and regions;
    (7)Turnover 250 million and Export 20million annually;
    (8)Cooperates with DONGFENG,SINOTRUK,JAPAN BRAND,FOTON,FAW,JAC etc.
