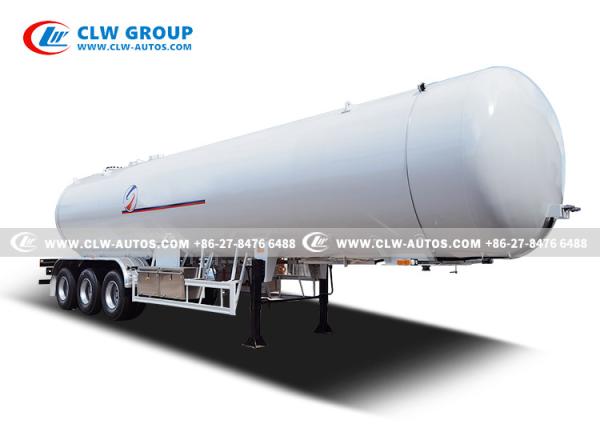

    49.6CBM LP GAS Semi Trailer Propane Delivery Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5096CEG
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    49.6CBM LP GAS Semi Trailer Propane Delivery Tanker Truck

    49.6CBM LP GAS Semi-Trailer Propane Delivery Tanker Truck

    Product Description:

    LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer.

    It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.

    1) LPG semi-trailer function :

    • transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
    • We can offer lpg bridger truck tanker trailers from 40cbm to 61.9cbm.

    2) Manufacturing standards of LPG Transport Tanker Trailer :

    • GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    3) Optional accessories of LPG Transport Tanker Trailer:

    • ROCHESTER level gauge
    • flow meter
    • sunshelter
    • lpg pump
    • lpg dispenser machine
    • filling hose

    4) Available tanker trailer capacity of LPG Transport Tanker Trailer:

    • From 40cbm to 61.9cbm


    Product Specification

    ItemParameter
    TankDescription of LPG tank60m3 LPG semi-trailer
    Volume49.6 CBM
    Overall dimensions (mm)12700*2550*3990
    Curb weight(kg)15500
    Approach Angle/Angle of departure-/20 (°)
    Wheel base6800+1300+1300(mm)
    Tire12R22.5 12PR
    Axle Number3
    Design pressure1.61MPa
    Design temperature-19~50ºC
    Filling mediumLiquid petroleum gas (propane)
    Corrosion allowance1.0mm
    volume49.6 CBM
    Thermal treatmentThe entirety
    Filling factor420-590kg/CBM
    Material of the tankQ345R or sa516gr70
    Hydraulic test pressure2.1 MPa
    Cylinder thickness12mm
    Head thickness14mm
    Service time20 years
    Liquid level indicatorTypeFloat ball level gauge
    Normal pressure2.21MPa
    Scope of testing50-2300mm
    Precision2.5
    Safety valveModelA42F-2.5-80
    VersionBuilt-in
    Normal pressure2.5 M Pa
    Normal diameterDN80
    Opening pressure1.68~1.76M Pa
    Re-seating pressure>=0.8 times of the opening pressure
    Loading and unloading systemNormal diameterFeed pipDN80
    Drain pipDN80
    Admission portDN80
    Sewage outfall portDN80
    Vent nozzle portDN80
    StandardGB150 <pressure vessel>TSG R0004-2009 or ASME
    SpecificationDesigned Pressure: 1.77Mpa
    Filling Ratio: 0.42-0.59 kg/L
    Working Temperature:-50ºC
    Corrosion Allowance: 1mm
    Standard configuration13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender.

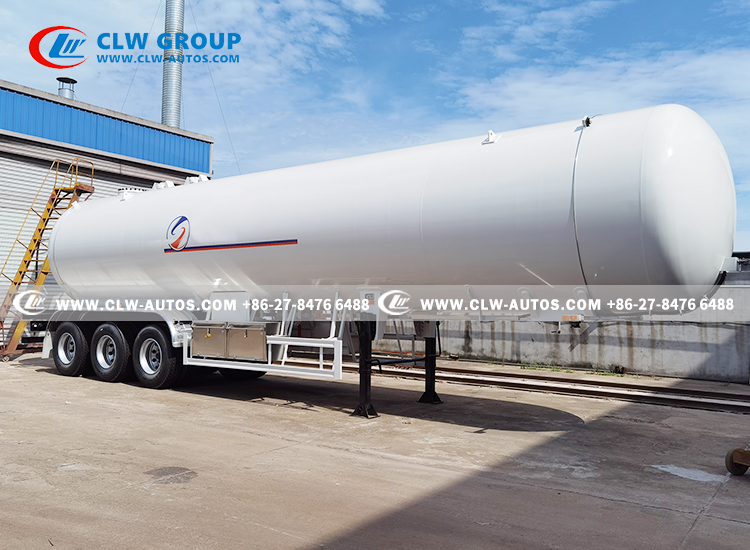

    Reference Photos






    Main Structure Diagram





    Sales Service


    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ


    Q1: What kinds of lpg tank trailer I can order from your company?

    A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.


    Q2: What's the material of your lpg tanker?

    A: We usually provide Q345R, Q370R, Q420R for customer's choice.


    Q3: What is your production standard of lpg tank trailer? Whether your lpg tank trailer been exported to USA, Canada and Europen countries?

    A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported lpg tank trailer super structure to Europen countries before.


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
