FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck

    Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers

    Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers
    • Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers
    • Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers
    • Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers
    • Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers
    • Buy cheap FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck from wholesalers

    FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5940
    Certification : BV, SGS, CCC
    Price : USD32200 - 42530
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30-35 days
    • Product Details
    • Company Profile

    FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck


    FOTON AUMAN 6X4 type 350hp 20tons 30tons Heavy duty mining stone sand dirt dump tipper truck dump truck for construction site mining tansportation
    Product Description
    1) Dump truck brand:
    FOTON, SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, etc.
    2) Tipping Model: Front-tipping, Middle-tipping.
    3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
    4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
    5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.

    Product Specification

    Chassis
    Brand and ModelFOTON AUMAN
    Drive type6X4
    Wheel base(mm)3825+1350
    Overall dimension(mm)8472X2495X3400
    Curb weight(Kg)12110
    Load capacity(Kg)30000
    CabinFlat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C
    EngineModelISGe4-350
    Max.output (kw/HP)257/350
    Max.torque (N•m)1800@1000RPM
    Displacement (ml)10500
    Emission standardEuro IV
    Description

    In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,common rail diesel engine

    Gear boxManual,12 forward & 2 reverse gears
    Driving axleLoad capacity 18000Kg
    Front axleSteering axle,load capacity 7000Kg
    Quantity of leaf spring11/14
    Inner trimming
    Standard configurationAir suspension seat
    Seat heater
    Lumbar support to the driver
    Adjustable steering wheel
    Electrical system
    Standard configurationCAN bus intellectual electronic control system
    New battery box
    Start/stop device under the vehicle
    Safety

    Standard
    configuration

    Three points safety belt
    Automatic clearance adjustment arm,tachometer
    Service brakeDual circuit compressed air brake
    Parking brakeSpring energy, compressed air operating on rear wheels
    ABSProvided
    Comfortable accessories
    Cab four points full floating suspensionFront and rear coil spring
    Standard configurationCab anti-rolling stabilizing device
    Hand accelerator
    Electric windowProvided
    Tipper body
    Standard configurationBig tool box
    Reinforced rim (with HQ mark)
    Three in one lock (Ignition switch, door and fuel tank)
    Type specification11.00R20 18PR
    Number of tyres10+1
    Max.vehicle speed(km/h)81
    Box dimension(mm)5600X2300X1200

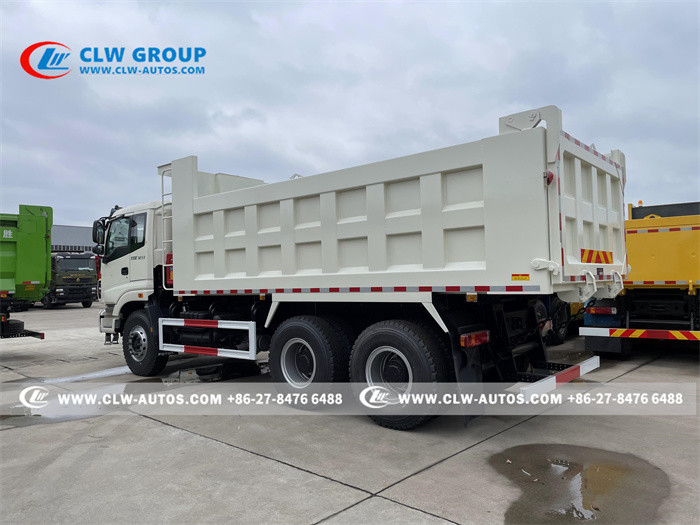

    Product Show

    FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper TruckFOTON AUMAN 6x4 350HP 20T 30T Dump Tipper TruckFOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck



    Related products



    Sales Service

    ① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
    Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

    FAQ
    Q1: What kinds of dump trucks I can order from your company?


    A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

    Q2: Have you supplied dump trucks to any overseas companies?
    A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

    Q3: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

    Warranty

    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer manual, video guidance and our engineers will go to customer's country to assist the
    installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the
    products arriving at destination safely.

    Spare Parts

    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.

    After Sales Service

    Email & Phone call tracking for each truck on timely manners.

    Shipment

    Land transportation or Ship by bulk cargo ship, container, roro ship
