    HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW50758uv
    Certification : CCC,ISO,BV,SGS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 30-35 days after received advance payments
    • Product Details
    • Company Profile

    HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

    HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

    Product Description

    1. Chassis: HOWO,Shacman,Faw,Dongfeng,Foton,JAC,JMC all for choice
    2. Tanker capacity :From 2m3 to 25 m3 capacity.
    3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

    4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)

    5. Septic tank truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.


    Complete Vehicle Parameter
    VehicleHOWO Septic tank truck
    Overall dimension (mm)8500×2500×3200
    Sewage tank (m3)12
    Gross vehicle weight (kg)Appro×18000
    Curb weight (kg)Appro×9000
    Payload (kg)Appro×10000
    Wheel base (mm)4700
    Max speed (km/h)90
    Chassis Parameter
    CabinFlat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive
    Drive form4×2
    EngineBrand: sinotruk
    Model: wd615-87, 290hp
    Type: diesel, turbocharged, 6 cylinder.
    Displacement: 9726ml
    Emission standard: Euro 3
    Transmission10 forward,2 reverse, manual operated
    Tire model12.00R20
    No.of tires6 pcs, with 1pc spare tire
    Superstructure Parameter
    Characteristic1. Sewage tank volume 12000 liter.
    2. Sewage tank material is carbon steel,thickness 6mm.
    3. Sewage suction pipe 1pcs, length 7m.
    4. Hydraulic lifting sewage tank,rear cover can open.
    5. Equipped with PTO.
    6. Equipped with vacuum pump(Italy BP pump)
    7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
    Performance(1) Vertical suction ≥ 7m.
    (2) Pumping speed : 45L/s.
    (3) Intake and exhaust diameter: 50mm.
    (4) Full tank pumping time ≤ 5min.
    (5) Sewage tank emptying time ≤ 4min.

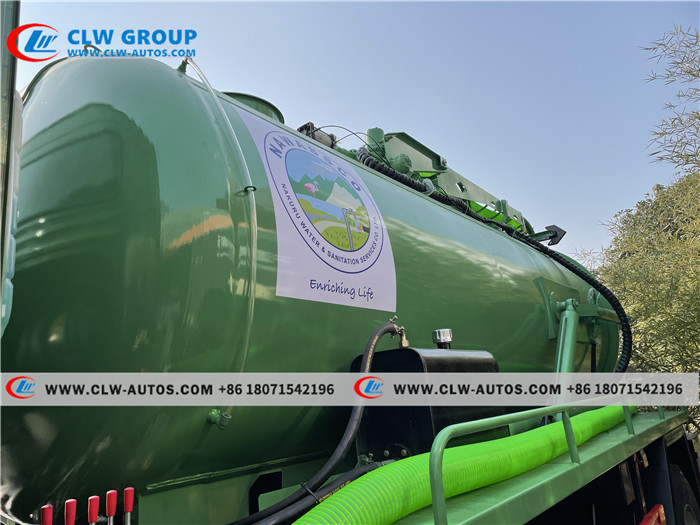

    Truck Details


    Sewage suction truck diagram



    Discharge







    Sales Service

    ① 20 years engineer team do design and drawing, Economic Price with high quality
    ② Video and photos during whole production process, three layers paiting for long run, Customized logo
    ③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.

    Operation manual step by step.


    Key words: Sewage suction truck, Sewer cleaning truck, Sewer vacuum Truck, sewage vacuum truck
