    Q345R Q370R Q420R LPG Tanker Semi Truck Gas Tank Semi Trailer 61.9cbm 25T

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW9259GT
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Q345R Q370R Q420R LPG Tanker Semi Truck Gas Tank Semi Trailer 61.9cbm 25T

    61.9cbm 25T Q345R Q370R Q420R LPG tanker semi truck Gas Tank Semi Trailer


    Description:

    1) LPG semi-trailer function :

    • transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
    • We can offer lpg bridger truck tanker trailers from 40cbm to 61.9cbm ( 20tons to 30tons).

    2) Manufacturing standards of LPG Transport Tanker Trailer :

    • GB-150, ASME, U STAMP, CCC, ISO9001 : 2008

    3) Optional accessories of LPG Transport Tanker Trailer:

    • ROCHESTER level gauge
    • flow meter
    • sunshelter
    • lpg pump
    • lpg dispenser machine
    • filling hose

    4) Available tanker trailer capacity of LPG Transport Tanker Trailer:

    • 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons



    product Specification

    ItemParameter
    TankDescription of LPG tank61.9m3 LPG semi-trailer
    Type numberCLW9440GYQA
    Volume61.9CBM
    GVW42,250KG
    Overall dimensions (mm)13350*2550*3995
    Curb weight(kg)16250
    Approach Angle/Angle of departure-/20 (°)
    Wheel base7230+1310+1310(mm)
    Tire12R22.5 12PR
    Axle Number3
    Type of vesselThe third kind
    Design pressure1.61MPa
    Design temperature-19~50ºC
    Filling mediumLiquid petroleum gas (propane)
    Corrosion allowance1.0mm
    volume61.9CBM
    Thermal treatmentThe entirety
    Filling factor420-590kg/CBM
    Material of the tankQ345R or sa516gr70
    Hydraulic test pressure2.1 MPa
    Cylinder thickness8mm
    Head thickness8mm
    Service time20 years
    Liquid level indicatorTypeFloat ball level gauge
    Normal pressure2.5MPa
    Scope of testing50-2300mm
    Precision2.5
    Safety valveModelA42F-2.5-80
    VersionBuilt-in
    Normal pressure2.5 M Pa
    Normal diameterDN80
    Opening pressure1.68~1.76M Pa
    Re-seating pressure>=0.8 times of the opening pressure
    Loading and unloading systemNormal diameterFeed pipDN80
    Drain pipDN80
    Admission portDN80
    Sewage outfall portDN80
    Vent nozzle portDN80
    StandardGB150 <pressure vessel>TSG R0004-2009 or ASME
    SpecificationDesigned Pressure: 1.77Mpa
    Filling Ratio: 0.42-0.59 kg/L
    Working Temperature:-50ºC
    Corrosion Allowance: 1mm
    Standard configuration13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender.

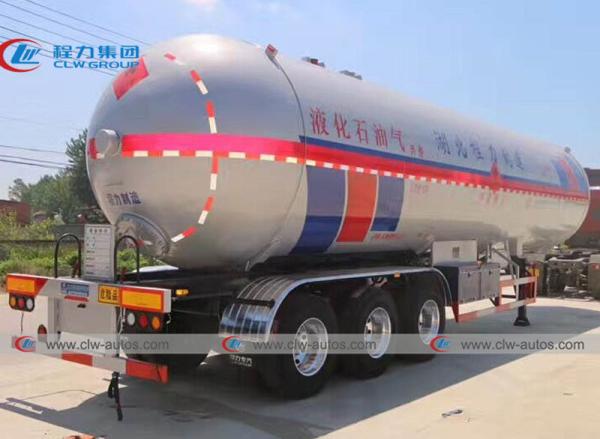

    product photot for your reference







    Main structure Diagram



    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.



    FAQ


    Q: Can I buy a sample of your product for testing?

    A. Yes, that's fine. Our MOQ is 1set.


    Q: What's about the payment?

    A: 40% deposit by T/T before order,balanced by T/T before delivery.


    Q: How about quality of your factory product ?

    A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


    Q: How do you gurantee the quality of the product?

    A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

    Q: Why do you choose us?

    A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

    Q: What about your after-sale service?
    A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.


    Q: Can we visit your factory before purchasing?
    A: We welcome you to visit our factory any time and we will show you our production line .
