    336HP HOWO 6X4 Gas Cylinder Tanker Filling Trucks LPG Bobtail Truck 24cbm 12tons

    24cbm 12tons 336HP HOWO 6X4 Gas Cylinder tanker Filling Trucks LPG Bobtail Truck


    Product Description

    1. Storage medium of LPG bobtail truck :

    • LPG
    • Liquid ammoina
    • Dimethyl ether
    • Iso-butane
    • Pentane


    2. Truck Brand :

    • Howo
    • Dongfeng
    • Faw
    • isuzu
    • Foton
    • JAC
    • JMC


    3. Available tank capacity:
    5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.

    4. Function of LPG Gas Bobtail :
    mobile Gas Delivery/ Refilling/bottling/filling

    5. Manufacturing standards :

    • GB-150
    • ASME VIII Division I U STAMP
    • CCC
    • ISO9001 : 2008


    6. Refiling System of LPG Gas Bobtail:

    • 2" Hyrdaulic Truck Pump
    • 2" Flow Meter
    • ​15meters Hose Reel for commercial Fillings.

    Technical data

    • Temperature range: -15℃~50℃
    • Design pressure: 1.61Mpa
    • Flow rate: depending on the type of pump installed
    • Tension: 380V/50Hz, 220V/50Hz

    Product Specification

    Item No.Parameters
    Overall Dimension10590* 2495* 3350mm
    Gross Vehicle Weight24420kg
    Curb Weight14210kg
    Wheel Base4800+1350mm
    CabinLeft Hand Driving, 2 Passengers Allowed, with Air Conditioner
    EngineWD615.62 Diesel Engine, 6 Cylinder in line. Four Stroke.water-cooling,supercharged and mid-cooling,Direct injectio
    Engine horsepower336HP Euro II
    Max Driving Speed90 km/h
    Gear Box10 Forward Gear & 2 Reverse Gear
    Tire12R22.5 Tubeless Tire (10 pieces with one spare)
    Tank Capacity24 CBM / 24,000 Liters
    Filling Weight10000kg
    Filling ContentLiquefied Petroleum Gas (Propane)
    Tank MaterialQ345R, 10mm Thickness for Tank Body & End plate.
    Standard Equipment1 Safety Valves,1 Ball floating Level Gauge,
    1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes,
    SpecificationDesigned Pressure: 1.61Mpa / 16.1 Bar
    Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar
    Air Tightness Pressure: 1.61Mpa / 16.1Bar
    Medium Density: 500-590 kg/m3
    Working Temperature: under 50 centi-degree
    Corrosion Allowance: 1mm
    Filling System
    1. Hydraulic Drive 2" Truck Pump.
    2. Liquid Control Flow Meter to Record Filling Volume
    3. LPG Filling Hose for Cylinder

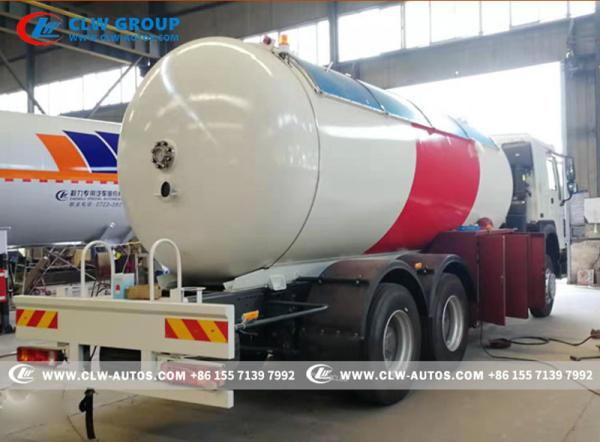

    Reference Photos

    Two Types of Dispenser for Optional

    Related Products


    JAC 8*4 34.5cbm LPG Tank Dispenser Truck 17 Tons 18 Ton With Gas Filling Machine

    After-sales Service

    1. Provide English operation manual and Instruction videos.
    2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
    3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.


    FAQ


    Q1: What kinds of LPG bobtail truck I can order from your company?

    A: We can supply different sizes LPG bobtail truck as client's request. Basically speaking, we can supply 5CBM to 38CBM type. Pls contact with us for more technical details and discussion.

    Q2: What is your production standard of LPG bobtail truck?
    A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011

    Q3: Can we adopts International brand parts or accessories for LPG
    bobtail truck?
    A: Sure, we already cooperated with many international brand suppliers.

    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
