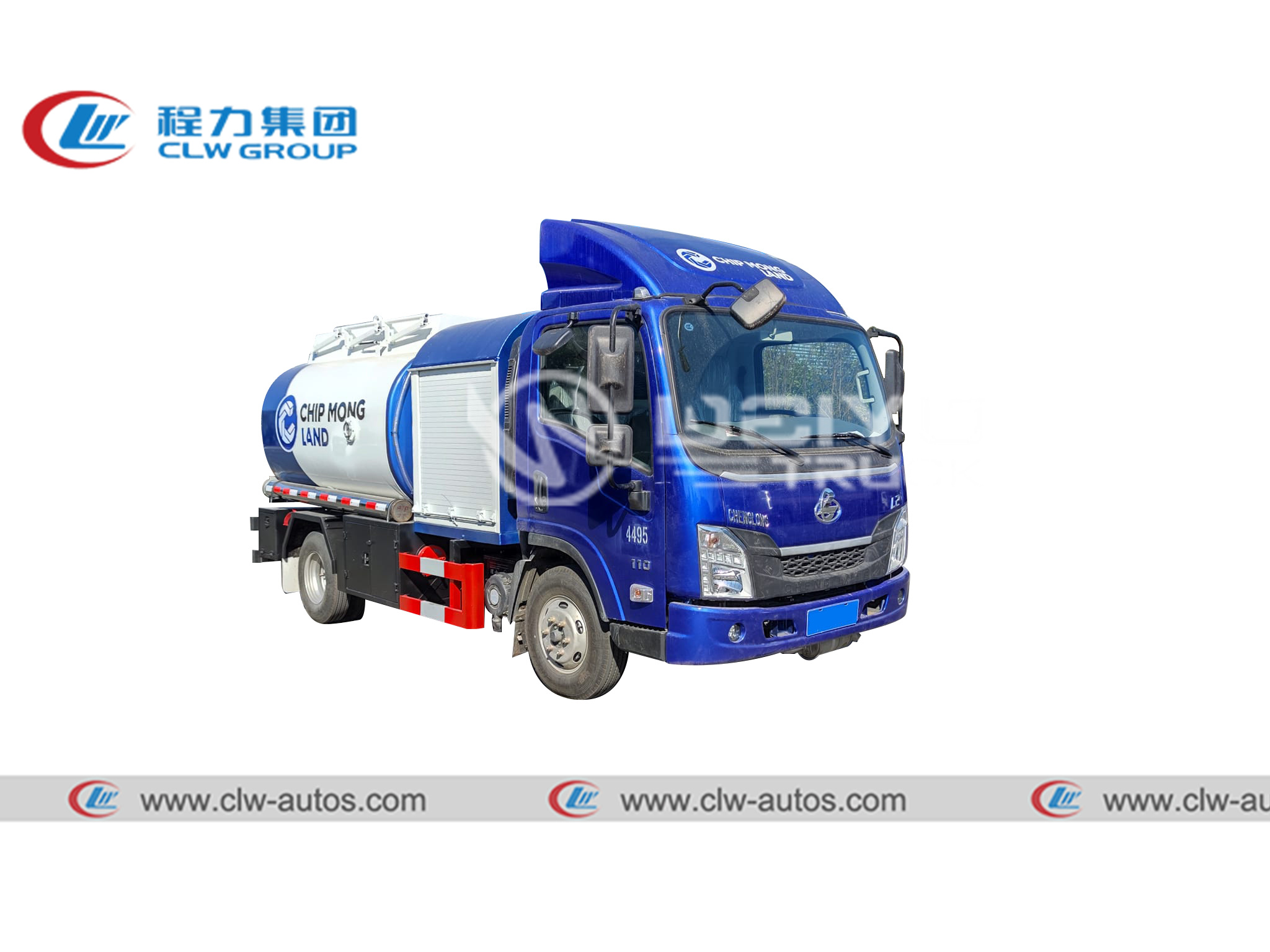

    Aluminium Alloy Aircraft Fuel Tanker Truck 5000liter 5cbm Crude Oil Tanker Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW387FMFDS
    Certification : ISO9001, CCC, BV, SGS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units per month
    Delivery Time : 30-35 days after receiving the deposit
    • Product Details
    • Company Profile

    Aluminium Alloy Aircraft Fuel Tanker Truck 5000liter 5cbm Crude Oil Tanker Truck

    Aluminium Alloy Aircraft Fuel Tanker Truck 5000liter Fuel Dispensing Truck 5cbm Crude Oil Tanker Truck

    Advantages of aircraft refueling truck with aluminum alloy tank:
    1. Light weight, large volume and high economic benefition.

    2. Corrosion resistance, high cleanliness, no pollution to oil .
    3. Long service using life and high recycling value.
    4. Good electrical conductivity and elongation, high safety.


    Fratures:
    1. European standard tank mouth: integrated with built-in breathing emergency energy discharge

    2. Aluminum alloy folding guardrail, sturdy and beautiful, easy to use

    3. High-quality integrated automatic welding tank

    4. Well-known tanker brand, quality assurance

    Specification of 5000liters oil tanker truck

    Tanker parameters
    Tank dimensions3400*1600*1100mmTank volume5,000L,5000liter,5cbm
    Shape of the tankerEllipseTank thickness4mm body/ end plate 4mm
    Material of tankerAluminium Alloy, epoxy paint 3 layer inner surface for anti-corrosion
    Transport mediumDiesel oil, gasoline or others
    ManholeGLME, Euro standard, including pressure relief valve
    Bottom ValveGLME, Euro standard
    Discharge ValveAluminium Alloy Ball Valve type (stainless steel ball valve is optional)
    Emergency Cutoff DeviceEquipped
    Oil PumpWeilong or Yifeng (Chinese famous brand )
    Flow MeterHigh-end flow meter
    Filling GunRotary filling gun
    Standard configurationtool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included
    Optional Configurationpneumatic valve, AIP valve, overflow sensor system, vapour recovery system
    Color & LogoCustomized

    The tanks and pipes of the aircraft refueling truck are all made of aluminum alloy:

    1. The fuel tank is equipped with high-performance filter separator, which can filter impurities and water to ensure the cleanliness of the oil.
    2. To ensure safety during refueling, it is equipped with engine emergency stop device, static elimination device, explosion-proof device, lighting device, fire extinguisher, etc.
    3. It is quipped with perfect safety interlocking device to prevent wrong operation and ensure aircraft and oil depot facilities.
    4. It is equipped with high-precision, large-flow meter, which can monitor during the refueling process.
    5. The aircraft refueling truck meets the requirements of environmental protection with safe, beautiful, user-friendly design


    1. The tank body: is made of 5083 aluminum-magnesium alloy , which is light weight, large volume, corrosion-resistant and pollution-free, to ensure oil quality.
    2.
    Refueling pump: aluminum alloy centrifugal pump, reel refueling flow 80 or 300L/min, pipeline oil pumping flow 700L/min, working pressure 0.25MPa.
    3. flow meter: 0.2 grade accuracy, diameter 50 waist wheel flow meter.

    4. The filter separator: the rated flow is 400L/min, the rated working pressure is 1.0MPa, and the maximum allowable pressure difference is 0.15MPa, which meets the requirements of the third edition of API 1581.

    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation

    and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products

    arriving at destination safely.
