    Off Road 4X4 All Wheel Driving Stainless Steel Fuel Oil Truck 5000liters 5tonnes

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW20220701
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Unit/Month
    Delivery Time : 35 Days
    • Product Details
    • Company Profile

    Off Road 4X4 All Wheel Driving Stainless Steel Fuel Oil Truck 5000liters 5tonnes

    5000liters 5tonnes Off-Road 4X4 All Wheel Driving Stainless Steel Fuel Bowser Machine Fuel Oil Transportation Truck Dies

    Product advantages:
    1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;

    2. Tank shape: Optional for round square, oval, and round;

    3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;

    4. Oil pump:Optional single counting, double counting, and tax control tanker;

    5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.

    6. It can be divided into many compartments to transport different medium, which will make your transportation easy and safe.

    Product main details:
    1.Howo 4X4 Off-Road left hand driving
    2. Cummins diesel engine with 141hp
    3. WLY651,6-Forward & 1-Reverse gear box
    4. Front axle 2.2T with Rear axle 4.2T
    5. Euro standard manhole and bottom valve
    6. It is optional for Chinese famous brand or other brand.


    Product Specifications

    TECHNICAL SPECIFICATION
    ModelSINOTRUKTank volume5000L /5m3
    Overall Dimension(mm):5990X2000X2380mmDriving type4x4 Off-Road Left hand driving
    Chassis parameters
    ChassisHOWO
    CabinSingle row cabin, allowable for 2 passengers with air conditioner
    EngineModelISF3.8S3141
    Rated power141hp
    Displacement3.76L
    Type4 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection
    EmissionEuro 3, Diesel
    ManufacturerSINOTRUK
    TireSize215/75R17.5, steel wire tire
    Number6 tire with one spare
    Front / Rear axle2200/4200TransmissionsWLY651,6-Forward & 1-Reverse
    Fuel tank400L, steelWheel Base3360mm
    Tanker parameters
    Tank dimensions3400*1600*1100mmTank volume5,000L
    Shape of the tankerEllipseTank thickness4mm body/ end plate 4mm
    Material of tankerQ235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion
    Transport mediumDiesel oil, gasoline or others
    ManholeGLME, Euro standard, including pressure relief valve
    Bottom ValveGLME, Euro standard
    Discharge ValveAluminium Alloy Ball Valve type (stainless steel ball valve is optional)
    Emergency Cutoff DeviceEquipped
    Oil PumpWeilong or Yifeng (Chinese famous brand )
    Flow MeterHigh-end flow meter
    Filling GunRotary filling gun
    Standard configurationtool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included
    Optional Configurationpneumatic valve, AIP valve, overflow sensor system, vapour recovery system
    Color & LogoCustomized

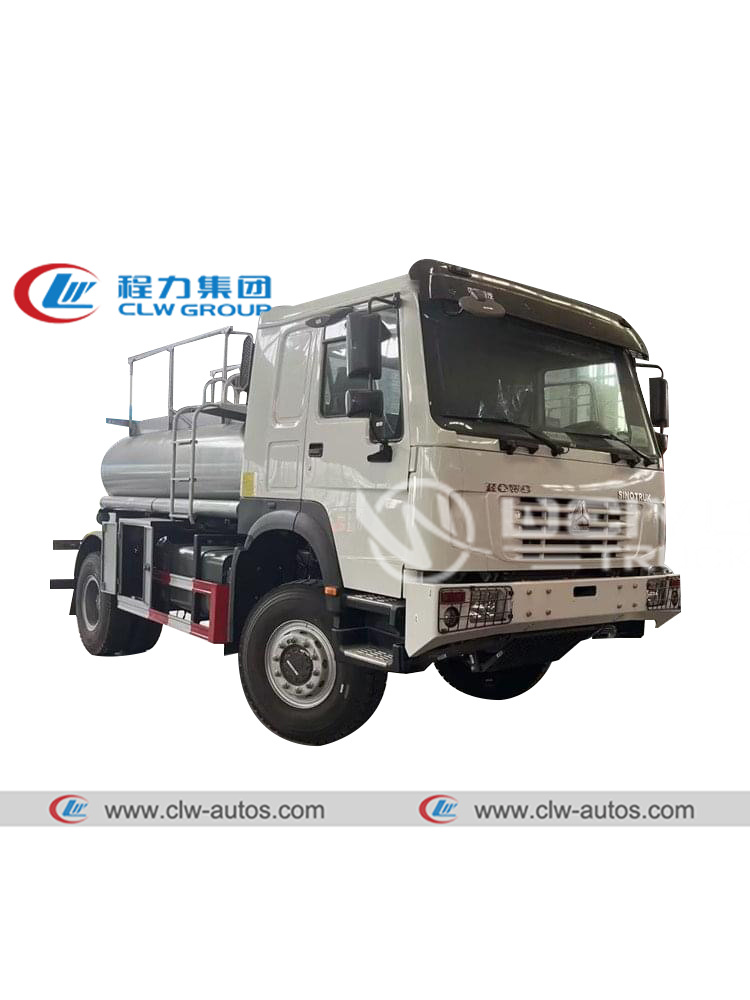

    Truck appearance

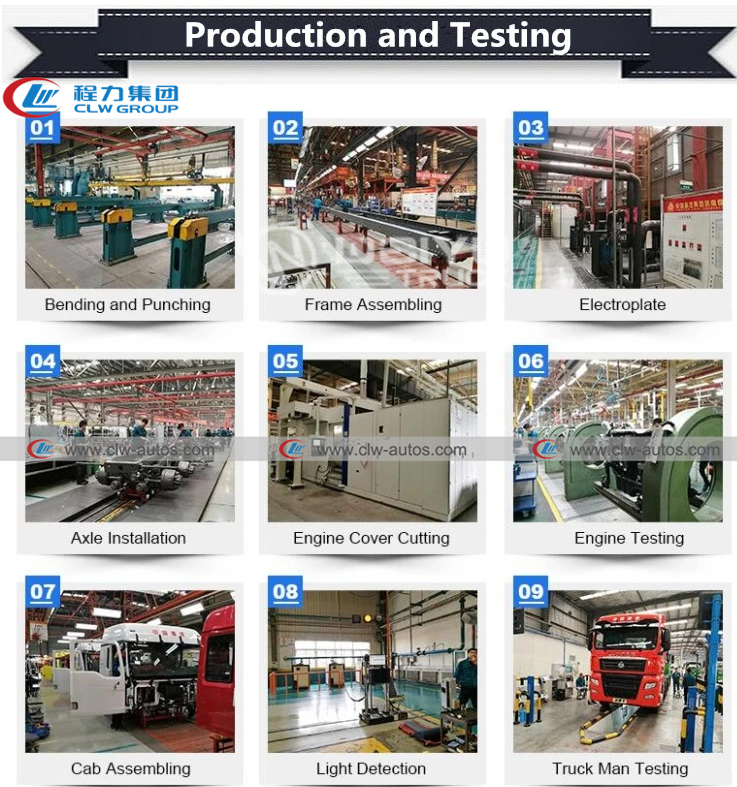

    Product process


    Factory overview


    Key words: Fuel truck , fuel bowser, fuel tank truck, fuel tanker, oil tanker, oil tank truck, petrol tank, petrol fuel tank, tanker truck, refueler truck , petroleum tanker, fuel dispenser truck, fuel dispensing truck, mobile dispenser truck, crude oil truck, crude oil tanker truck, fuel transport truck, diesel truck, mobile diesel tanker truck.
