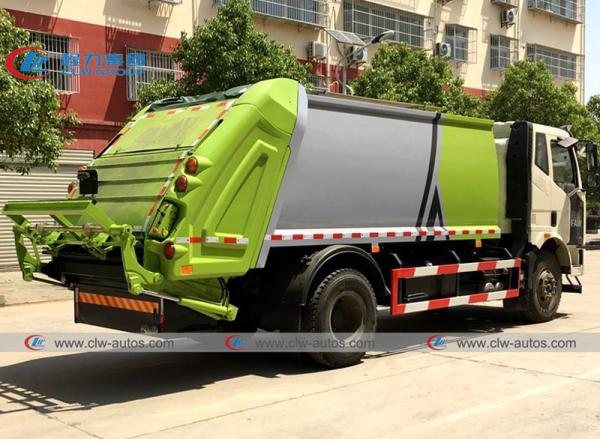

    FAW brand 4*2 14m3 Rear Loader Compressed Garbage Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW512HT67D
    Certification : CCC,ISO,
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, D/A, Western Union,, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    FAW brand 4*2 14m3 Rear Loader Compressed Garbage Truck

    FAW brand 4*2 14m3 Rear Loader Compressed Garbage Truck

    Product Descriptions

    • Single/ half row /Double row reversible cab
    • * The new non-rib box, the plane arc is beautiful and generous
    • *The effective compression volume is 14 cubic meters
    • * Tail with flip feeding mechanism
    • * Electronically controlled manual dual controllers, dual control boxes in the cab and the rear of the car
    • * The tail has a 3 cm thick rubber sealing strip
    • * The garbage bin can be sprayed with patterns and words as required.



    Product Advantages
    1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.

    2. Advanced electric control system adopts imported PLC integrated control, mechatronics-hydraulic integrated control, and high degree of automation.

    3. The pushing plate control valve is equipped with a back pressure valve, which can highly improve the loading efficiency.

    4. The beautiful streamlined appearance design, and the upper body adopts special high-strength anti-corrosion steel plate, which extends the service life of the truck.

    5
    . Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.

    Product Specifications


    Truck Chassis Specification
    Chassis modelCLW
    CabFAW row half cab
    Driving Type4*2 Left or right hand driving
    Max Speed (km/h)103
    Overall dimension(mm)8380×2550×2580
    GVW( kg)14060
    Mass in working order ( kg)9440
    Wheelbase(mm)4700
    Front / Rear Axle( kg)4860/9200
    Tire8.25R20, 6+1 pcs
    ClutchSingle-plate dry diaphragm spring clutch
    SteeringHydraulic steering with power assistance
    Gear box6-speed
    EngingModelCummins 170hp
    Fuel TypeDiesel fuel
    TypeWater-cooled four-stroke, direct injection, turbocharged
    Braking systemService BrakeOil brake
    Park BrakeSpring energy
    Auxiliary brakeengine exhaust brake
    Eletric system24v

    Upper-Body specification
    Material of tankMaterial : Q235, Thickness :4(mm) side /5(mm) rear
    Dirty tank volume14cbm/14000Liters/14M3
    Filler volume500L
    Filing time(s)8~10s
    Filling cycle time(s)50~60s/once
    Discharge typeRear Discharging
    Time for Discharging30-40S
    Hydraulic pressure16Mpa
    Controlling wayManualy and electrical control


    Main structure

    M

    Diagram of compactor garbage truck


    Main parts of garbage truck


    Factory overview
