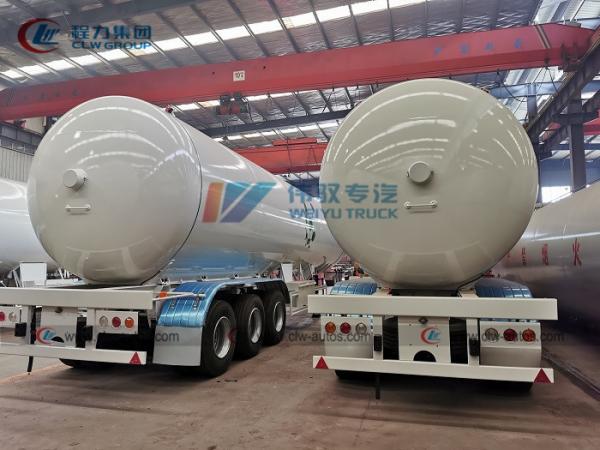

    1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi Trailer For Transport

    Ask Lasest Price
    Brand Name : CLW /Weiyu Brand
    Model Number : CLW530Y6EU
    Certification : CCC, ISO
    Price : negotiable
    Supply Ability : 500 units/month
    • Product Details
    • Company Profile

    1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi Trailer For Transport

    1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi-trailer For Transport


    Product Description:

    • Design standard:GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
    • Tank material:Q345R,Q370R,Q420R
    • Tank capacity:From 40m3 to 60m3(Customized)
    • Optional accessories for LPG tanker trailer: BPW Axles, sun shelter, Rochester level gauge, pump and motor , JOST outrigger etc.
    • Design pressure:1.61Mpa

    Specification

    Tanker Essential Information
    Volume of Tank (cbm)60
    Overall Dimensions(L*W*H)(mm)13350*2550*3995
    Tank Dimensions(Inner Diameter*thickness*Length)2500*12*13070
    Estimated Tare Weight (kg)16250
    Payload(kg)26000
    Total Weight(kg)42250
    Wheelbase(mm)7230+1310+1310
    Shell of Tanker
    ProductsLiquefied Petroleum Gas (propane)
    Fluid PropertyFlammable
    Design Temperature(ºC)50ºC
    Design Pressure(MPa)1.61
    Corrosion Allowance(mm)1.00
    Weld Joint Factor1
    Major Materials of Bearing PressureTanker body:Q345,12mm,
    End plate:Q345R,14mm
    Main beam:16Mn
    Detection
    Heat TreatmentOverall treatment in a furnace,600ºC to 640 ºC
    Flaw Detection100% Flaw detection
    Test Pressure(MPa)1.61
    Hydraulic Test(MPa)2.1
    Magnaflux InspectionAim at welding place that flaw detection can not cover
    Manhole (As Customer's Requirement)
    Quantity1;on top
    SizeDN450
    Safety Valve(As Customer's Requirement)
    Quantity2
    LocationOn the top of tanker
    SizeDN80
    Level Gauge
    TypeManuel Switch type
    LocationAt the rear of the end dish
    Running System
    Axles3*13T BPW
    Tire12R22.5 Tubeless tire ,8 with one spare tire
    Landing legJOST
    King Pin#50 or #90
    Control System
    Emergency Cut-off Valves2 or 3
    Ball Valve4 or 6
    Liquid Gauge1
    Pressure Indicating Thermometer1
    Pressure Gage1

    Factory overview


    Sales Service

    ① Pre-sales Service: Communicate with customers, analyze their needs.
    ② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


    FAQ

    Q1: What kinds of LPG products I can order from your company?
    A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.


    Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
    A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.


    Q3: Have you supplied LPG products to any renowned companies?
    A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank


    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.


    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
