Brand Name : | CLW |
Model Number : | CLW525JKF7 |
Certification : | ISO9001, CCC, BV, SGS |
Price : | Negotiated |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500 units per month |
Delivery Time : | 25-20 days after receiving the deposit |

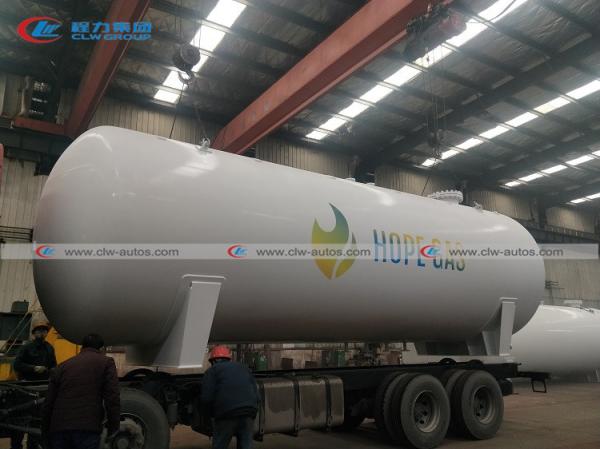

ASME 50000L 25MT DN2700mm Diameter Head 16mm Q345R Carbon Steel LPG Gas storage
Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water
Pressure.
4. LPG storage tank capacity: 5-200m3 (Customized)
5. LPG storage tank material: Q345R Q370R SA516 SA517
6. Corrosion Resistance Painting: 2 Times
7. Surface Painting: 1 Time (color is customized)
Technique Parameter for 500000 Liters 25tons lpg storage tank
tem | Unit | Parameter |
Product Name | Liquefied Gas Storage Tank | |
Design/manufacture code | GB150, ASME is for option | |
Overall dimensions | mm | 9182*2728*3318 |
Tank Dimension | DN2700 | |
Tank material | Q345R | |
Loading weight | Kg | 19950 |
Tank weight | kg | 10640 |
Working pressure | Mpa | ≤1.6 |
Testing hydraulic pressure | 2.12 | |
Testing pressure for gas density | 1.77 | |
Test pressure | 1.69 | |
Air tight test pressure | 1.69 | |
Safety valve popping pressure | 1.68 | |
Working temperature | ºC | ≤50 |
Accessory list for 50,000l lpg storage tank
Accessories List | |||||
Parts No | Size | Parts Name | Model No. | Quantity | Unit |
a | DN50 | Cut-off Valve for Drain Outlet | J41N-2.5-50 | 1 | set |
b | DN80 | Cut-off Valve for Liquid Phase Outlet | J41N-2.5-80 | 1 | set |
c1 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
c2 | DN50 | Cut-off Valve for Gas Phase Balance Outlet | J41N-2.5-50 | 1 | set |
d | DN80 | Cut-off Valve for Liquid Inlet | J41N-2.5-80 | 1 | set |
i | DN50 | Cut-off Valve for Air Drain Outlet | J41N-2.5-50 | 1 | set |
h | DN80 | Cut-off Valve for Safety Valve | J41N-2.5-80 | 1 | set |
f1 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
f2 | DN25 | Cut-off Valve for Magnetic Level Gauge | J41N-2.5-25 | 1 | set |
e | M33*2 | Thermometer | WTQ-280 | 1 | set |
g | M20*1.5 | Pressure Gauge | Y-100T | 1 | set |
/ | / | Magnetic Level Gauge | HG21584-95 | 1 | set |
/ | DN80 | Safety Valve | A42F-25 | 1 | set |
M20×1.5 | Needle Valve | J24W-320-DN6 | 1 | set | |
Total Quantity | 14 |
Product Advantage
5. High quality domestic or imported safety accessories for user to choose
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
![]() |
