    14000L Water Sprinkler Truck For Transport Water Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5079dcx
    Certification : CCC,ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    14000L Water Sprinkler Truck For Transport Water Tank

    Dongfeng 14,000L Water Sprinkler Truck for transport water tank


    Product Description

    1. Optional chassis brand :
    Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,JAC,JMC etc

    2. Material of portable water truck :
    High Tension Steel Q235/Q345,stainless steel 304 for option.

    3. Sprinking Width of portable water truck :>14M

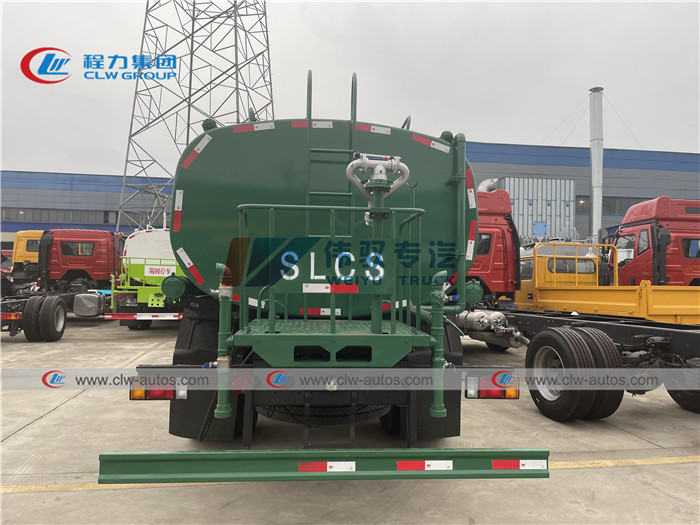

    4. Rear working platform with water cannon range of portable water truck :28M
    5. Reliable and high quality water pump (Chinese Top brand or Italy Brand)
    6. Purpose: water sprinker for road cleaning, drinking water transport

    Advanced facilities

    • mechanics tray,
    • mechanics pump,
    • anti-corrosion & rust prevention in the tank,

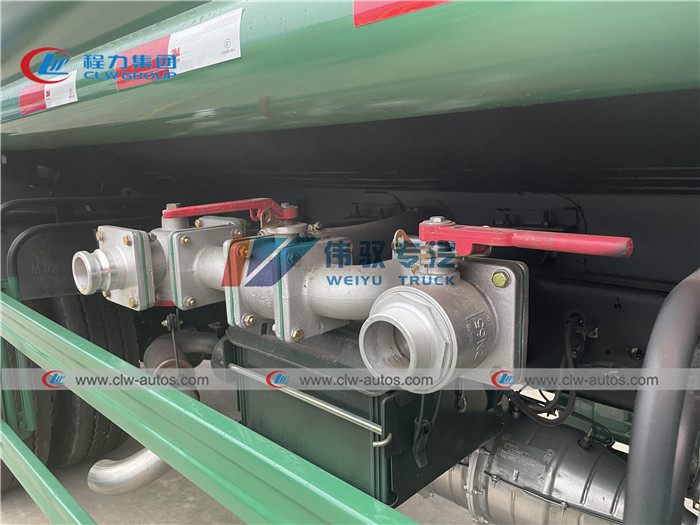

    • multi-directional water inlet and outlet joints,
    • solenoid valves,
    • pneumatic valves, etc.

    Working sence :

    • roads, trees, green belts, lawns, roads, factories and mines, and high-altitude buildings.


    Specifications of 14000 liters water tanker truck

    ConditionNew condition/Left hand drive/4x2
    ChassisBrandDongfeng
    Curb weight(kg)6660 kg
    Loading weight(kg)9140 kg
    Gross weight(kg)15995 kg
    Wheelbase(mm)4700 mm
    Tank Dimensions(mm)4500*2200*1400 mm
    Front Loading Capacity (Ton)4.5
    Rear Loading Capacity (Ton)9
    Max. driving speed(km/h)90 km/h
    ClutchReinforced diaphragm clutch
    BrakesService brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Steering GearPower steering, hydraulic steering with power assistance
    TireQuantity6 pcs with one spare tire
    Specifications10.00R20
    TransmissionManual type,6 Forwards and 1 reverse
    CabinSingle row seat, Tiltable. It can accommodate three people. With air conditioner.
    EngineBrandDONGFENG
    Fuel typeDiesel
    Power(kw)177 kw
    Horsepower(HP)180 HP
    Cylinder number6
    Emission standardEuro 4
    Upper
    Water tankCapacity(cbm/tons)14
    Tank materialQ235 carbon steel
    Thickness(mm)4
    Water pumpChina local brand
    Suction Height7M
    Function1, Front Side Rear Sprinkling width≥14m
    2, Water cannon range≥28m
    Remarks1. AM/FM radio
    2. 2pcs water hose.
    3. Color is optional


    Water Truck Digram




    Other types of water truck:


    Working Diagram





    Production Line for Water Tank Truck





    Sales Service

    ①Pre-sales Service: Communicate with customers, analyze their needs.
    ②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
    ③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



    FAQ

    Q1: What kinds of water bowser I can order from your company?
    A: There are various sizes and types of water bowsers with different functions,you can contact us and tell your request.We will recommend you suitable product.

    Q2:: Have you supplied water bowsers to any overseas companies?
    A: Yes,with need of government and construction project,we offered water bowsers to many Africa and south-east Asian,south-American countries.

    Q3 What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
