    Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5278DHE
    Certification : CCC,ISO,BV,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 units per month
    Delivery Time : 30-35days after received advance payments
    • Product Details
    • Company Profile

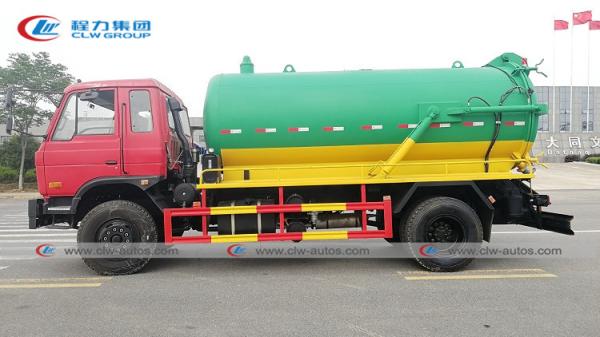

    Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters

    Q235 Carbon Steel 10cbm/10000liters Vacuum Sewage Suction truck


    Product Description


    • The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
    • Tank material: high-quality carbon steel plate, 6mm thick,
    • Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
    • The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
    • Optional vacuum pump

    Vehicle Description
    Overall dimensions6975*2462*2690 mm
    Curb Weight4470kg
    Chassis brandDONGFENG
    Traction type4*2
    Tanker Description
    TankerCapacity10000L
    Material6mm thickness, high quality carbon steel
    StructureWelding, vacuum tank, Cylindrical
    PumpTypeDouble vacuum pump
    Flux68(L/S)
    Rating speed800~1000(r/min)
    Shaft power5(kw)
    FeaturesLow speed, low fuel consumption, low noise, high vacuum, high efficiency
    ManufactureHangzhou WEILONG Pump Co., Ltd.
    PipeSuction and discharge pipe
    Special functionSuction time ≤ 5mins,
    effective suction range ≥ 8,
    Max vacuum degree ≤ 15 Kpa,
    dump angle ≥ 45
    Standard configurationEquipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
    Cylinder vacuum tank can be lifted hydraulically to
    40-45 degree. Rear door can be opened and closed hydraulically.
    Optional configurationTanker material: stainless steel.
    Vacuum pump : Italy or Spain vacuum pumps.
    Anti-rust coating inside tank
    Chassis Description
    Chassis modelDONGFENG
    CabSingle row cab, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, Optional air conditioning system, electric windows, central lock.
    Traction typeLHD or RHD
    Drive type4*2
    Wheelbase3950mm
    Tire specification9.00-20 Nylon tire
    Tire quantity6+1 units
    EngineEmission levelEuro 2
    Displacement/output5880ml
    Horse power160hp
    Gear boxModelChina famous brand
    Number of gears5 forward gears& 1 reverse, synchronized
    Brake systemFull air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
    SuspensionFront1205
    Rear1820

    Accessories


    Our factory


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
