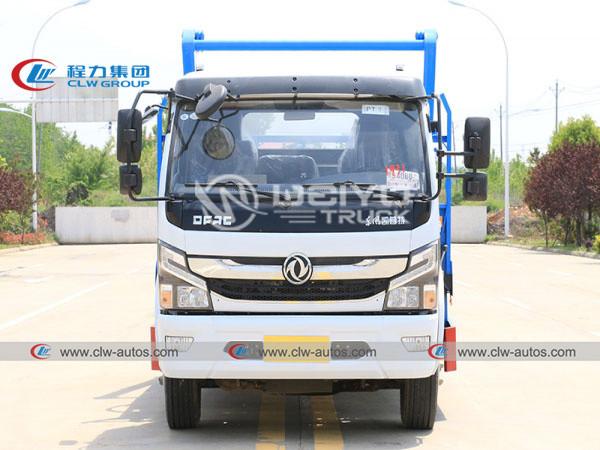

    Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW581ETS
    Certification : CCC ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 days after received advance payments
    • Product Details
    • Company Profile

    Hydraulic Operation Waste Management Garbage Truck 5-6m3 5-6cbm

    New 5-6m3 5-6cbm Hydraulic Operation Waste Management Garbage Truck

    Product description

    • Swing arm mechanism: It is composed of steel plates and welded in a box-shaped structure.
    • Hopper: open and sealed. (boat-shaped bucket, square bucket, sealing bucket)
    • Hydraulic operating system: power take-off, oil pump, manual multi-way reversing valve, one-way hydraulic lock, balance valve, oil pipe, oil tank, etc.
    • Self-unloading function, hydraulic operation
    • The bucket is separated from the car body, which can realize the joint operation of one truck and multiple buckets.
    • Short-distance transportation, such as the cleaning of urban garbage etc.


    Chassis parameters
    Chassis modelEQ1040G47DJACChassis brandDongfeng
    Overall dimensions5840*1980*2170mmWheel base3308mm
    Front/rear wheel track1438,1486 mmFront/rear suspension1800/2695mm
    Approach/departure angle17/14°Maximum speed99km/h
    Chassis ManufacturerDONGFENG
    CabConfigurationsingle row cab
    ColorCustomized
    EngineModelCYQD32T
    EmissionEuro 2
    Type6 cylinders, in-line, turbo inter-cooling
    Rated power108hp
    Displacement3153ml
    ManufacturerCHAOYANG
    TireSize6.50R16,7.00R16
    Number6+1 nos
    Fuel tank300L iron oil tank
    Front axleHF 2 tons
    Rear axleST 3 tons
    Drive form4X2
    SuspensionMulti leaf springs
    Rated voltage24V, DC
    Transmissionsgearbox HW3153
    Steering devicePower assisted steering
    Steering wheelLHD&RHD
    Swing arm garbage truck structure parameters
    Garbage container dimensionsCustomizedGarbage container volume5/6m3
    Garbage container materialCarbon steelSide wall3mm
    Bottom plate4mmColor and LogoOptional
    Standard configurationChassis,sub frame,two balancing valves, two domestic oil cylinders,web plate,one garbage container,rear hydraulic legs,unloading container locking pins.

    Our Factory


    Our Service

    • Quick feedback to solve your questions

    • Professional engineering and production team

    • Related Accessories and spare parts offered,no future worries

    • Regular customer after-sale visiting

    • Free technical staff training and guidance

    • Reasonable price and good quality

    • Quick delivery and shipmen
