    Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW55DOVI
    Certification : CCC,ISO,BV,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Units/Month
    Delivery Time : 30-35 Working Days
    • Product Details
    • Company Profile

    Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2

    4X2 Dongfeng 11cbm Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck

    Product Descriptions:

    1. It is equipped with strong vacuum pump for faster sewage suction speed.

    2. It is equipped with high pressure water jetting that can help clearing obstacles .

    3. The truck's self-dumping tank is openable rear door in order to discharge sewage efficiently.

    4. Ultra-long suction pipe is available to further extend working area.

    5. The truck using famous Italian Jurop &BP, American moro vacuum Pump.

    6. It install remote control system.


    Main specifications:

    1. YUNEI diesel engine 185hp

    2. Imported Italy vacuum pump or Chinese famous vacuum pump

    3. Suction time is less than 5 minutes.

    4. Carbon steel

    5. 4cbm water tank and 7cbm sewage tank


    Product Specification

    Technical Parameters

    Overview

    Name

    Sewage Jetting Truck

    Dimension(LxWxH)

    7100*2250*2900(mm)

    Cab type

    single row

    Kerb Weight

    7500 Kg

    Passenger

    2

    The Parameters of Chassis

    Manufacture

    Dongfeng

    Driving Type

    4*2 left hand drive

    Wheel Base

    3800 mm

    Gearbox

    Manual, 8 forward and 2 reverse

    Breaks

    air break

    Tyre

    8.25R20

    The Number of Tyre

    6+1(6pics with one spare tyre)

    Engine

    YUNNEI 185hp Euro3

    Leaf Spring Number

    8/13,8/12

    Superstructure Parameter and main performance

    Cleaning Tank volume

    4cbm

    Cleaning Tank material

    good quality carbon steel; round shape

    Sewage tank volume

    7cbm

    Sewage tank material

    good quality carbon steel

    Pump

    Imported Italy high quality vacuum pump or chinese vacuum pump

    Standard configuration

    60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc

    Main performance

    Suction time ≤ 5min
    effective suction range ≥ 9m

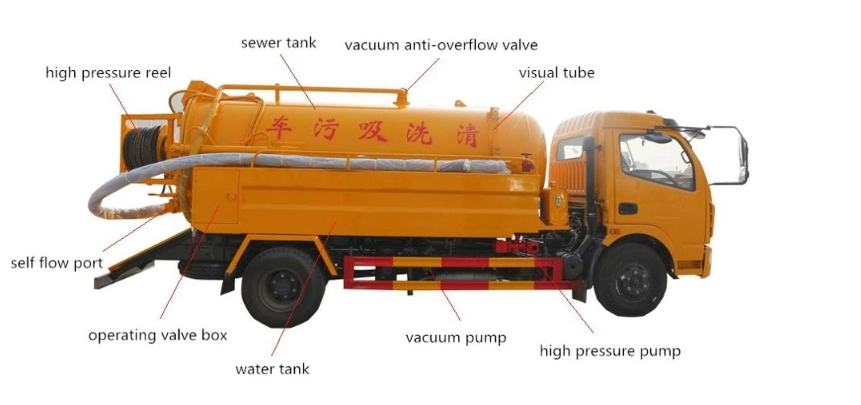

    Reference Photos



    Working Scene


    After-sales Service

    1. Provide English operation manual and Instruction videos.
    2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
    3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.


    FAQ

    Q1: What size sewage suction tank we can get from your company?

    A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


    Q2: Have you supplied sewage suction truck to any overseas companies?
    A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

    Q3: Can we adopts International brand parts or accessories for fire truck?
    A: Sure, we already cooperated with many international brand suppliers.

    Q4: What about warranty?
    A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

    Q5: Where is your factory? How far from Shanghai to your factory?
    A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
