SHACMAN F3000 8x4 RHD 420HP Boom Rotator 30tons Bus Towing Road Recovery Rescue Tow Truck

Product Description:

1. Truck Chassis Main Specification:

(1) SHACMAN F3000 Standard Flat Cabin, With one or Without Sleeper Bed. Air conditioner, Drive seat: Air Seat.
(2) WEICHAI Diesel Engine, WP12.420E201, 420HP, EURO-2, or Euro-3.
(3) Steering Wheel: RHD, Right Hand Drive, Or Left Hand Drive is available.
(4) FASTE12JSD200T-B Transmission/Gearbox, Manual control, 12 forward & 2 reverse
(5) Front Axle, Man 9.5Tons Capacity, 2 pieces; Rear Axle: MAN 16Tons, 2 pieces.
(6) Fuel Tanker: 400L, or 600L is available.
(7) Tire: 12.00R20, 12R22.5, 315/80R22.5 are for option.

2. Upper Equipment Specification:

(1) Hoisting/Underlift System: Max Under-Hoisting Capacity: 16000Kgs. Max Hoisting Weight under all extension: 7000kgs.
(2) Lifting Organ: Max lifting capacity:30000Kgs.
Basic Arm Length: 5200mm; Total Arm Length: 11200mm.
Max Lifting Height: 12000MM.
360 Degree Roatation.
(3) Winch: 2 pieces; Max Pulling Power: 15000Kgs*2, Total: 30000Kgs, 30Tons.
Steel Rope: 45 - 50 meters length, Diameters: 22mm.
(4) Landing Leg/ Outrigger: Front: 2 Pieces, Rear: 2 peices.
(5) Other accessories: Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork,

a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly

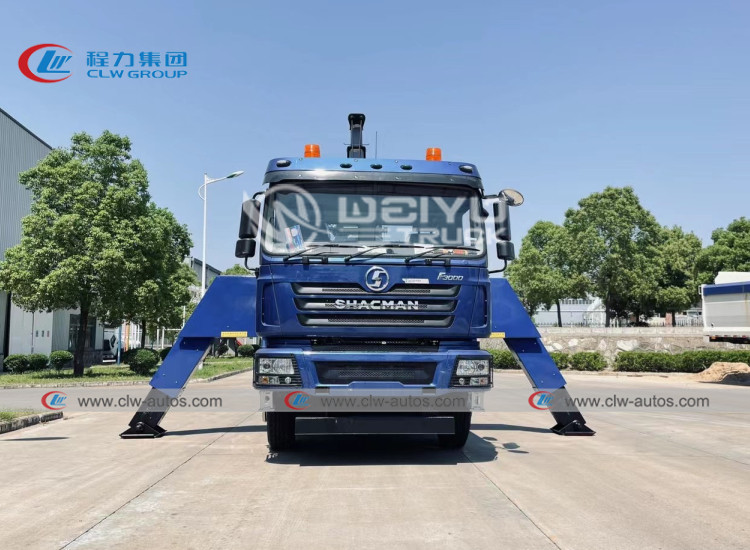

More pictures for SHACMAN F3000 8X4 RHD Rotator Breakdown Trucks Road Recovery Wrecker Towing Truck:

Wrecker truck is also called wrecker towing truck, flatbed tow truck, tow truck hydraulic, tow trucks

wreckers,
rotator tow truck, towing wrecker truck, road wrecker truck, wrecker truck towing truck, road wrecker, rotator
wrecker, recovery wrecker, wrecker tow truck, recovery truck, rotator recovery truck, wrecker with crane, etc.

1. Function: Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back
load and transport.

2. Application: Widely used in road, airports, docks, auto repair company, industry and highway
departments, timely, fast clean-up accident, failure, illegal and other vehicles.
