    25t 50cbm 50000 Liters 50m3 LPG Gas Tank Semi Trailer LPG Delivery Tank With Sunshelter

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW525EDIER8
    Certification : ASME,CCC,BV,SGS
    Price : 31000 usd/unit~45000 usd/unit
    Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 units/month
    Delivery Time : 30 working days after receiving deposit
    • Product Details
    • Company Profile

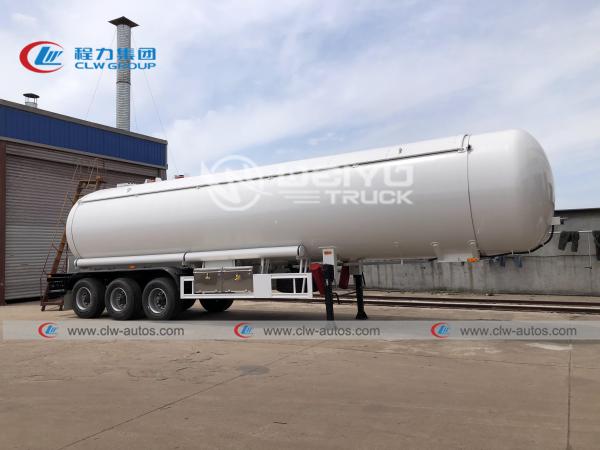

    25t 50cbm 50000 Liters 50m3 LPG Gas Tank Semi Trailer LPG Delivery Tank With Sunshelter

    25t 50cbm 50000 Liters 50m3 LPG Gas Tank Semi-Trailer LPG Delivery Tank With Sunshelter

    Product description:

    • ASME standard available
    • 100% new condition by manufacturer direct sale
    • 100% quality guaranteed

    1) The LPG tanker semi trailer material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
    2) LPG tanker semi trailer are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.
    3) LPG Transport Tanker Trailer is used for transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
    4) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
    5) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose


    Dimension
    Tare Weight15300 KG
    Pay Load20832 KG
    Overall size12740*2480*3800mm
    Photo for reference, finial product can be made according to exact requirements
    Tank
    Transporting MediaDimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
    ShapeRound Shape
    Total Volume ( m3 )49.6CBM
    Tanker Body Steel SheetQ235A/14mm
    End plateQ235A14mm, by punching
    Parts for Tank
    Manhole cover3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
    Unloading valve2-3 sets of DN80 fixed at button of Tank
    Pipeline at button of tank4"seamless steel tube/Q235
    Labeling systemOil Type Indication
    Anti-static electricity systempulling, wire carrier, sheet copper (6 sheet-standard layout)
    Other Parts
    Ladder1 unit at front of Tank
    Guard on top of TankZinc galvanized -guard-net
    Oil hose boxCircular single hole tube, 1 unit on each side
    Oil hose2 unit, 3" x 6m size in black rubber
    Side guardcross bar-structure
    Rear button guardFixed type
    Work tank deckBox type
    Fire extinguisher box2 unit at the back of each side
    Mud guardSteel structure in trapezoid form
    Lights and wire24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
    Chassis
    Main BeamsHeavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
    Axle3 axles
    BPW brand FUWA brand
    Landing GearJOST Two-speed, manual operating, heavy duty landing gear
    King PinJOST 2"standard bolt-in king pin
    SuspensionGerman design mechanical suspension
    Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
    Wheel rim8.25R22.5 wheel rim
    Tire11R22.5 tubeless tire with one spare tire
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

    Vapour and Liquid phase-flange type:


    JOST outrigger:


    Thermometer:


    Floating level gauge:
