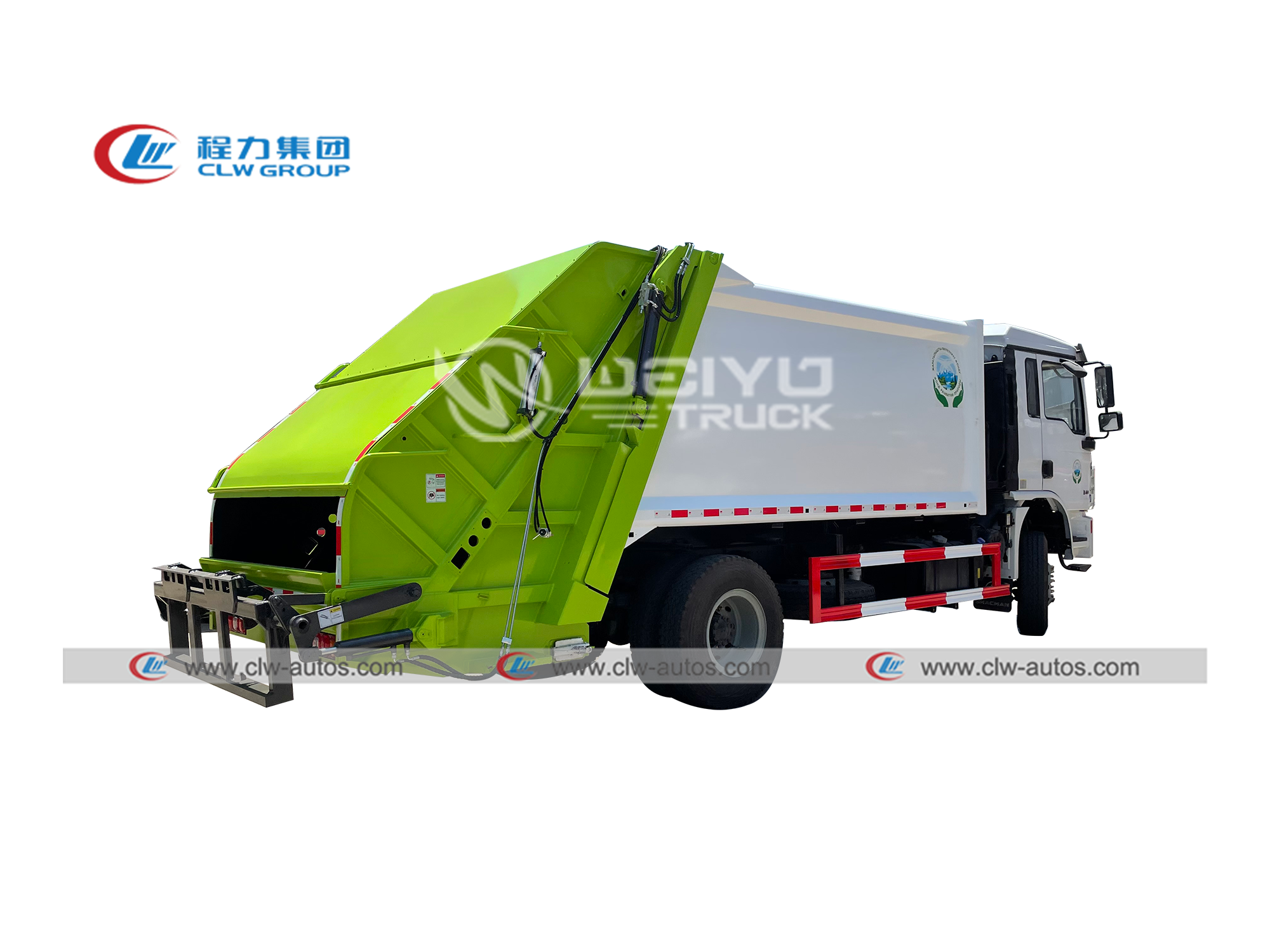

    Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW51048DD
    Certification : CCC,ISO,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, D/A, Western Union,, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck

    Shacman 6wheelers Diesel Engine 14cbm Rear Loader Refuse Compactor Truck


    Product descriptions:

    • Shacman chassis with high quality and good reputation
    • WEICHAI 240HP diesel engine match with fast 8-speed gearbox
    • 14cbm tank volum with side4mm, bottom5mm Carbon Steel-Q345 tank material
    • 4.8T /10T front and rear axle, good load-bearing performance
    • Optional different flip type like hanging bucket container, all-sealing container, swing arm container, triangle container
    • Bottom box and filler are made of thickened steel plate
    • Garbage Compact Ratio is up to 0.75tonnes/cbm


    Product advantages:

    • Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution.
    • It is equipped with computer control system for loading and unloading operations.

    • One Person operate that can reduce sanitation working time and greatly improves the working environment.

    • It install computer control system and manual operation system in order to improve the vehicle using rate.

    SHACMAN Hydraulic Compactor Garbage Truck (14 cbm)
    GeneralChassis BrandShacman
    Overall Dimension8890X2500X3300mm
    GVW / Kerb Weight18000kg / 5500kg
    CabCab Capacity3 persons allowed
    Air ConditionerHeating/cooling air conditioner
    EngineFuel TypeDiesel
    Engine BrandWeichai
    Power240 HP
    Front/rear loading4800kg/10000kg
    Emission StandardEuro2
    ChassisDrive Type4X2, (Left hand drive)
    Gear box8 speed levers with 2 reverse
    Wheelbase/No. of axle5000mm / 2
    Tire Specification10.00R20 radial tire
    Tire Number6 tires with 1 spare tire
    Max Speed95 km/h
    PaintMetallic paint
    SuperstructureBody capacity14cbm
    Fill Hopper capacity0.73cbm
    Sewage tank600 liters
    Filling work cycle time20~25 s
    Discharge modelHorizontal Ejection
    Control systemElectrically Hydraulic control
    Manual hydraulic control
    Control panelEnglish or Your language
    All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual...
    Optional

    1) Back alarm and Camera can be equipped.

    2) Italy mulit-valve can be choose.

    3) 240L (single bin or double bin) or standard 660L, 1100L bins with bin lifter can be choose.

    Compactor Carbage Truck Production Process



    Successful cases


    Our product advantages:

    1. Frame structure: the waste bin adopts solid frame structure welded by reinforcing beams and steel plates.
    2. Sealing treatment to eliminate secondary pollution
    3. Electric-hydraulic joint control
    4. Hydraulic lift safety circuit
    5. Automatic and manual operating system
    6. Automatic control of engine power output
    7. Advanced electronic control system
    8. Various fliping mechanisms
