Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Product Categories

LPG Gas Tanker Truck [112]
LPG Gas Storage Tank [158]
Fuel Delivery Truck [151]
Garbage Compactor Truck [174]
Waste Removal Trucks [94]
Road Sweeper Truck [66]
Vacuum Suction Truck [147]
Water Bowser Truck [103]
Refrigerated Box Truck [93]
LED Billboard Truck [35]
Wrecker Tow Truck [78]
Aerial Lift Truck [39]
Truck Mounted Telescopic Crane [83]
Fire Brigade Truck [67]
Ready Mix Concrete Mixer Trucks [24]
Heavy Duty Dump Truck [28]
Tanks Trucks And Trailers [178]
Prime Mover Truck [21]

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW5120
Certification :	CCC, SGS, BV, DOT, GCC
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 Unit/Month
Delivery Time :	30-35 days

Add to Cart

Product Details
Company Profile

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

Sinotruk howo 1500liters water tanker 4000liters dust tanker road sweeper truck

Description:

1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.

2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".

Most sweepers have the option of a hydraulic powered gutter broom on one or both sides of the truck and others use the broom inside the pickup head or dust suppression systems which agitate and move debris out of the curb edges and into the path of the truck while preventing dust

Specification:

Item		Parameter
Working Performance	Max sweep width	3.0m
	Sweep speed	3-20km/h
	Max sweep capacity	60000m2/h
	Max inhalation of granularity	≥110mm
	Angle of unloading	≥45°
	Volume of water tank	1500L
	Volume of garbage tank	4000L
Driving Performance	Max speed	90km/h
	Max gradeability	30%
	Braking distance	≤10m
	Min turning diameter	≤13.6m
Fuel Performance	Fuel consumption(Driving)	≤12L/100km
	Fuel consumption(Sweep working at 8km/h)	6.5L/h
	Fuel consumption(Sweep working at 8km/h)	2.7L/10000m2
Quality Parameters	Curb weight	4000kg
	Rated capacity	5000kg
	GVW	9000kg
Dimension Parameter	Overall dimensions	599522002700mm
	Wheelbase	3308mm
	Track front	1504mm
	Track rear	1530mm
	Front suspension	1070mm
	Rear suspension	1580mm
	Approach angle	24°
	Departure angle	13°
	Minimum Ground Clearance	190mm

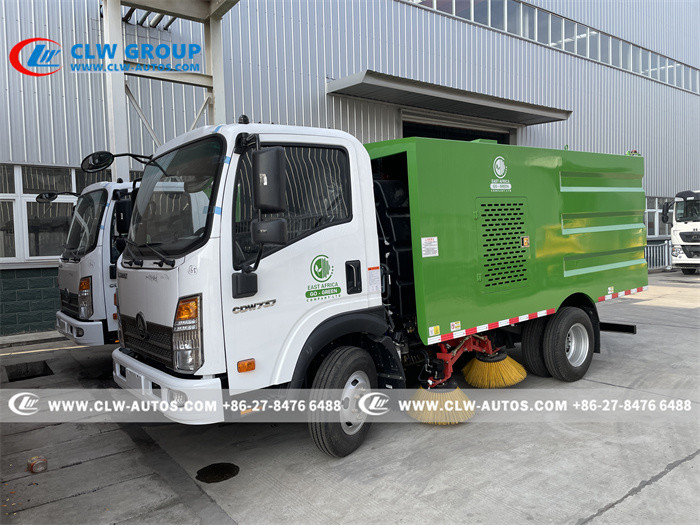

Reference Photos

Sinotruk Howo 1500L Water Tanker 4000L Dust Tanker Road Sweeper Truck

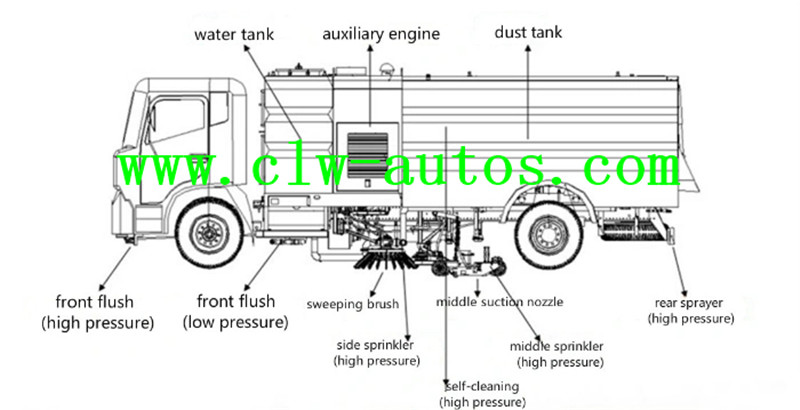

Truck diagram

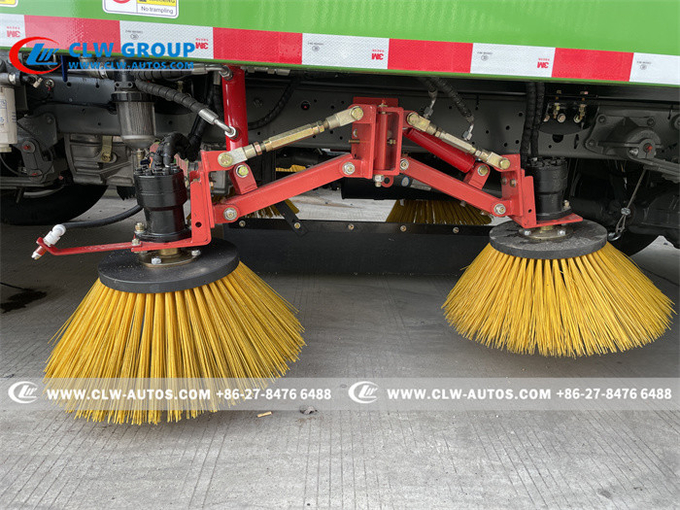

Main Details

Working Scenario

Sales Service

1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of dust vacuum suction trucks I can order from your company?

A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
