Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank

    Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers

    Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers
    • Buy cheap Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank from wholesalers

    Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW5117
    Certification : CCC,ISO,GCC,DOT,BPS
    Price : USD27925-35852
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank

    Foton Auman 6x4 type 20000liters 20cbm 20tons Water sprinkler Truck


    Description:

    water tank truck, which is also called watering truck, water tanker truck, water spraying truck,
    water truck, water sprinkler truck, etc.
    The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 30m.

    1. Optional chassis brand of portable water truck: Dongfeng, Isuzu, Sinotruk, FOTON/Forland, Faw, Shacman, etc.
    2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
    3. Sprinking Width of portable water truck: ≥14M
    4. Rear working platform with water cannon range of portable water truck: ≥28M
    5. Reliable and high quality water pump


    Product specifications

    Chassis Specification
    Item No.Parameters
    Chassis BrandFOTON Auman
    Overall Dimension9900×2500×3400mm
    Gross Vehicle Weight25000kg
    Curb Weight10605 kg
    Wheel Base4600+1350 mm
    CabinRow and half, Left Hand Driving
    EngineWeichai, 270HP, EURO III
    Overhang( Front/Rear)1525/2460(mm)
    Fuel typeDiesel
    Axle load6000/12000(kg)
    Angle(Approach/departure)16/22(°)
    Transmission/Gearbox9 Forward & 1 Reverse Gear
    Brake SystemPneumatic
    Steering GearPower Assistant
    Tire12.00R20, 10 Pieces with 1 spare tire
    Maximum speed90(km/h)
    Superstructure
    Water TankerTank Volume20000 Liters / 20m3
    Tank Material5mm Q235B Carbon Steel
    Sprinkling System:Suction height of Truck Pump>7m
    Full Tank Suction Time<15 minutes
    Sprinkling width of front/rear/side Sprinkler≥14m
    Range of Water Cannon≥28m
    RemarksOther Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs

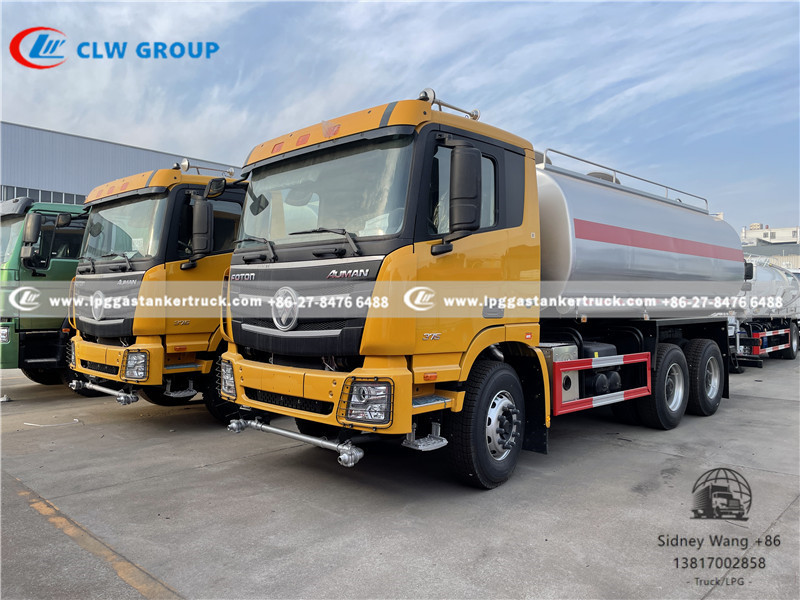

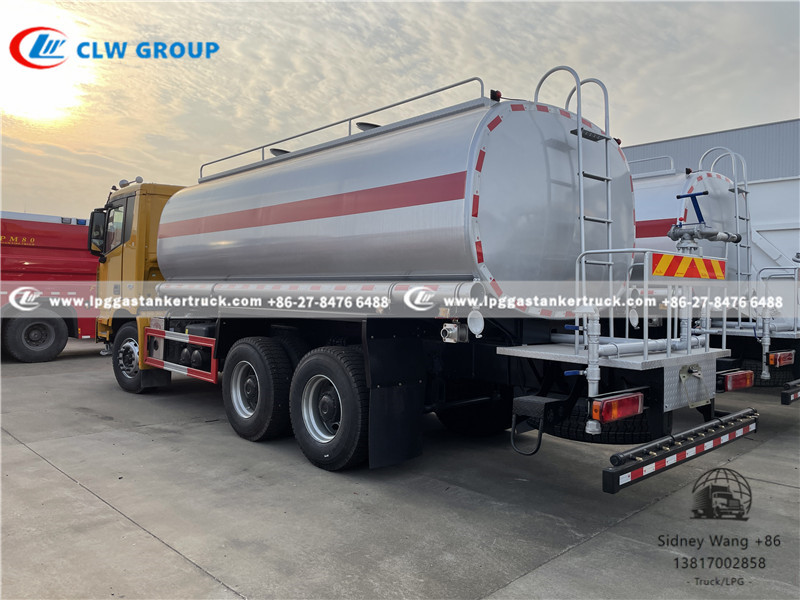

    Reference photos

    Foton Auman 6x4 20cbm Water Sprinkler Truck With Q235 TankFoton Auman 6x4 20cbm Water Sprinkler Truck With Q235 TankFoton Auman 6x4 20cbm Water Sprinkler Truck With Q235 TankFoton Auman 6x4 20cbm Water Sprinkler Truck With Q235 Tank

    Water Truck Diagram


    Working Show


    Truck Details


    Water bowser truck production line



    Factory overview


    Warranty


    1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
    2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
    3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.


    Spare Parts


    1. Supplying quick-wearing parts at the truck delivery.
    2. Good quality parts produced by the truck manufacturing factory.
    3. Only charge cost price for customer convenience.


    After Sales Service


    Email & Phone call tracking for each truck on timely manners.


    Shipment


    Land transportation or Ship by bulk cargo ship, container, roro ship
