4 Axle 60T Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20220120
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

4 Axle 60T Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck

4 Axle 60 Tons Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck

The Application and the Technical Highlights:

--- The low bed semitrailers are mainly suitable for the MID/Long distance transportation of mechanical equipment, large objects, highway construction equipment, large tanks, power plant equipment or machine, and all sorts of steel products.

--- The low bed semitrailer can bed divide into flat bed low bed trailer, concave low bed trailer, tyres appear low bed trailer, tyres covered low bed trailer. The concave low bed trailer structured with tyre appeared style, the height of the cargo's carrying platform from ground is 900mm.-Low platform makes the stable transportation.

--- The chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
--- High Quality Body and high-tensile steel for heavy loading capacity
--- BPW, FUWA or Certificated Chinese Axles
--- ABS brake system
--- WABCO Vehicle Control System
--- JOST ,FUWA or Chinese brand parking leg and king pin
--- Air and Mechanical Suspension
--- Strengthen the Chassis Instructure

Parameters for 4 axle Tri-axle 50Tons 60Tons low bed Loader Lowbed Semi Trailer

with Hydraulic power gooseneck:

Product Specification
1	Type	Semitrailer
2	Product Name	Low Bed Semitrailer
3	Dimension	13000x3000x1600mm
4	Tare Weight	9240kg
5	Payload	43t
6	Running System	Axles	FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles
		Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement)
		Tires	Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit
7	Ladder	Manually operated or Hydraulic type
8	Braking System	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system
9	Frame	Main Beam		Q345B steel,Height 500, upper 16mm, lower 18mm. Mid web 10mm
		Cross Beam		Mild Alloy Q235
10	King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
11	Landing Gear	FUWA, JOST Brand Single side operation or double side operation, Static capacity 28Ton
12	Electrical & Paint	Electrical		Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
		Lights & Reflectors		24V, 7 lines
		Painting		zinc-rich primer and modified urethane topcoat as customers' choices.
		Accessories		TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES

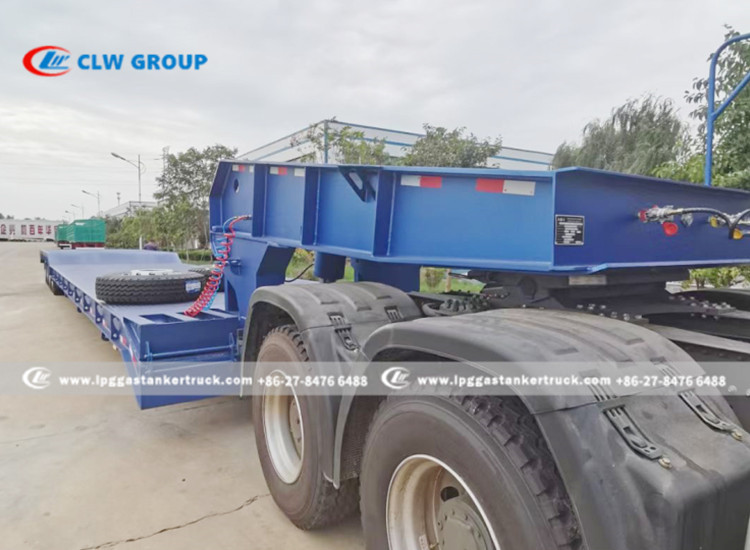

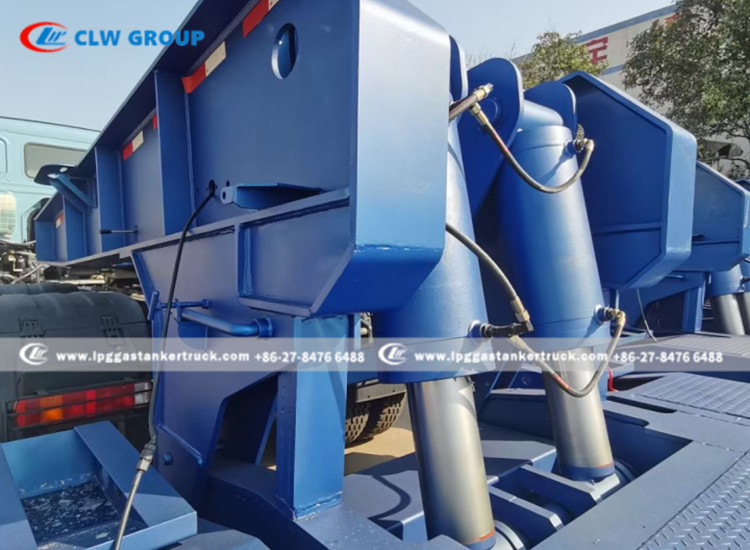

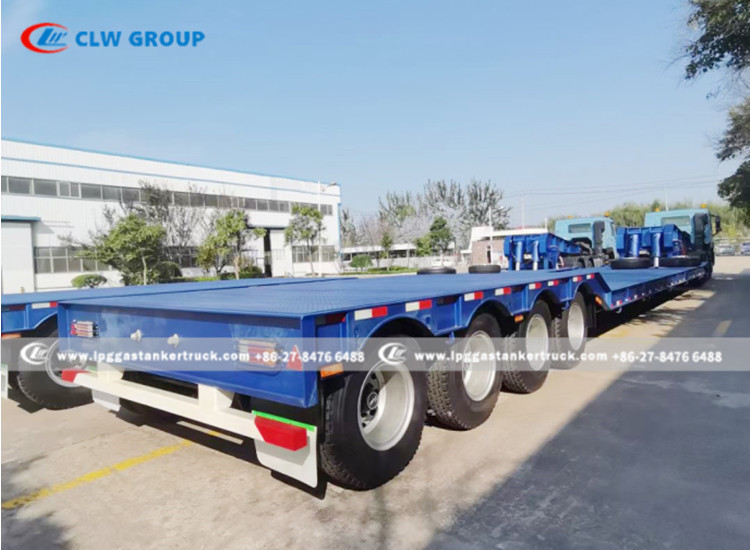

More pictures for 4 Axle 60 Tons Lowbed Lowboy Drop Deck Semi Trailer With Hydraulic Power Gooseneck:

Landing Gear

Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.

King Pin Plate

90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin

Axle

1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing

Air Suspension

Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
