KAMA 4x2 LHD 4500 Liters Garbage Compactor Truck

Ask Lasest Price
Brand Name :	CLW / Chengli
Model Number :	CLW5105
Certification :	CCC,ISO,BV,SGS
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500Unit Per Month
Delivery Time :	20-30 Days

Add to Cart

Product Details
Company Profile

KAMA 4x2 LHD 4500 Liters Garbage Compactor Truck

KAMA brand 4500Liters garbage compactor truck compression waste removal truck

Description

Garbage Compactor is the machinery of choice for door to door waste collection. Waste is simultaneously compacted and eventually transported to the dumping site. Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator. Manufactured according to European standards Reliable high-quality components effectively reduce maintenance and maintenance costs. K.E. manufactures compactors with various capacities depending on the type of truck chassis and user requirement.

1. Garbage Bin with different size options of waste collection truck: 3cbm to 18cbm.
2. Hydraulic Control Loading & Unloading System.
3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.

Specifications

Product Name	Kama Diesel Engine and Turbo charger Type 4500L garbage compactor truck
Chassis brand	China KAMA	Wheel base (mm)	3300 mm
Overall Dimension(mm)	585020002300	Driving type	4*2, left hand drive
Gross weight (kg)	4495	Number of Leaf Springs	8/9+5,6/8+4
Curb weight(kg)	3465	Rated loading capacity(Kg)	5000
Transmission	5 speed forward with 1 reverse manual	Axle number	2
Fuel type	Diesel oil	Braking system	Air brake
Approaching/Departure Angle(°)	19/15(°)	F/R Axle load(kg)	1785/2710
Passengers in cab	2	Maximum speed(km/h)	90
Number of Tyres	6 (with1 spare tire)	Tyre type	6.50-16
Front/Rear suspension(mm)	1032/1518	Front/Rear track base (mm)	1506/1442
Engine parameters
Engine Brand	Dongfeng Chaoyang	Engine Model	CY4102-C3F
Displacement (L)	3.856 L	Emission Standard	EURO 5
Power (kw/hp)	70/95	Maximum torque	365N/m
Number of cylinders	4	Cylinder spread pattern	In-line
Operation control system	Electrically hydraulic control	Rated rotation(rpm)	3200
Equipment
Refuse Container capacity	5m3/5000Liters	Rubbish Discharging Time	<= 30 s
Loading Circulation Time	12- 30s	Compressed Proportion	1:3 / 1:2

Reference photos

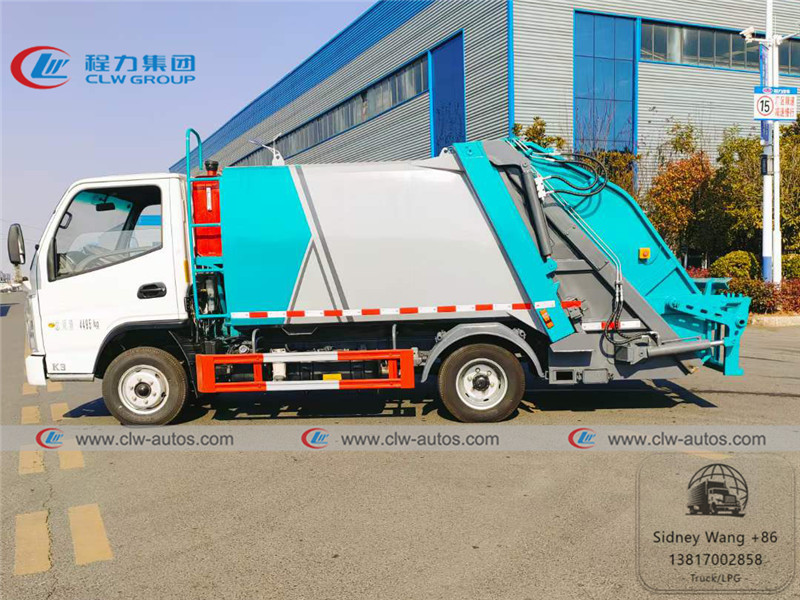

KAMA 4x2 LHD 4500 Liters Garbage Compactor Truck

Main parts

Truck Diagram

Factory overview

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
