Shacman 8x4 14000L 18000L Heavy Duty Concrete Mixer Truck

Ask Lasest Price
Brand Name :	CLW / Chengli
Model Number :	CLW5104
Certification :	CCC,ISO
Price :	USD46500 - 54500
Supply Ability :	600Unit Per Month
Delivery Time :	25-30 Days

Add to Cart

Product Details
Company Profile

Shacman 8x4 14000L 18000L Heavy Duty Concrete Mixer Truck

Shacman 8x4 drive 14000liters 18000liters Capacity heavy duty Concrete Mixer Truck cement mixer truck

Description:

Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.

Features of Shacman concrete mixer truck

1. Shacman 14-18m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.

Specifications

Condition		New condition/Left or right hand drive/8X4
Chassis		Brand		Shacman
		Gross vehicle weight		31000 kg
		Curb weight(kg)		15870 kg
		Wheelbase(mm)		1900+4300+1350mm
		Dimensions(mm)		10500×2490×3950 mm
		Axle Load(kg)		7000/ 18000kg
		Wheel track front/rear(mm)		2050/1850
		Max. driving speed(km/h)		85 km/h
		Brake		Air brake
		Tire	Number	12pcs with one spare tire
			Specifications	12.00R20
		Fuel tank(L)		400 L
		Fuel Consumption		33-38L/100KM
Transmission		Faster, 9 Forwards and 1 Reverse with PTO
Cabin		It can accommodate three people, With Air conditioner
Engine		Model			Cummins, ISLe320 30,Water cooled, 4-stoke, direct injection, and intercooled
		Horsepower(HP)			250kw/340HP
		Emission standard			Euro 3/4/5
Upper
Mixer drum	Max. Capacity				14000liters -18000liters
	Material				High strength steel Q345, 6mm thickness
Vane	Material				Alloy steel Q345, 5mm thickness
Specification	Feeding Speed (m3/min)				≥2.8
	Discharging Speed (m3/min)				≥1.2
	Discharging Residual rate(%)				≤0.5
	Mixing Tank Rotating Speed (RPM)				0-17
	Discharging range				180° full range
Driving system	Option				Option 1	Option 2	Option 3
	Hydraulic Pump				US EATON 5423	SAUER 75	SUNNY 56
	Hydraulic Motor				US EATON 5433	SAUER	SUNNY 63
	Reducer				Germany ZF4300 brand	Italy Bonfiglioli	China local brand
	Radiator				China local brand

Water supply system	Water Tank Capacity (liters)	400
	Water supply type	Pneumatic water supply
Control system	Control Way	Connecting Rod Controlling

Structure Features	Mixer Tank and Vane use special anti-resistant material. Discharging slot and feeding plate are the same anti-resistant material as the tank. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. With famous brand driving system. Discharging fast, no residue.
Remarks	1. Color is optional

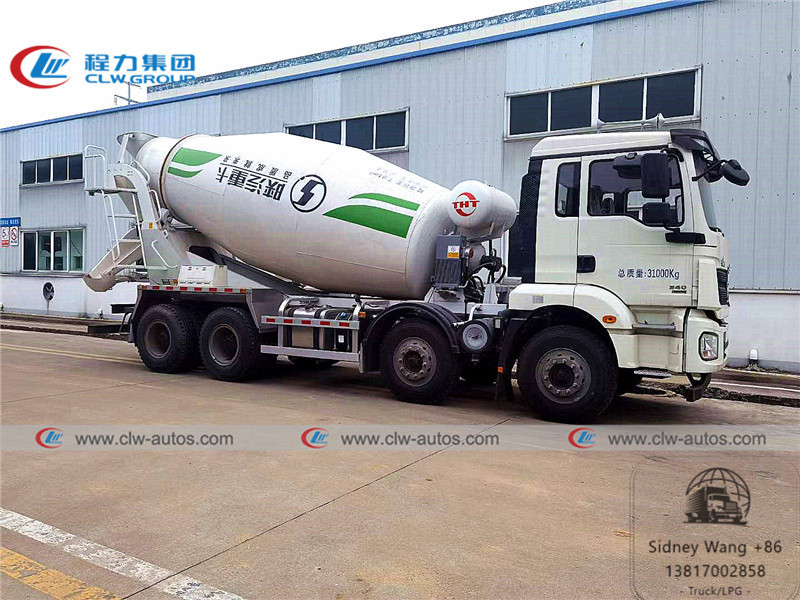

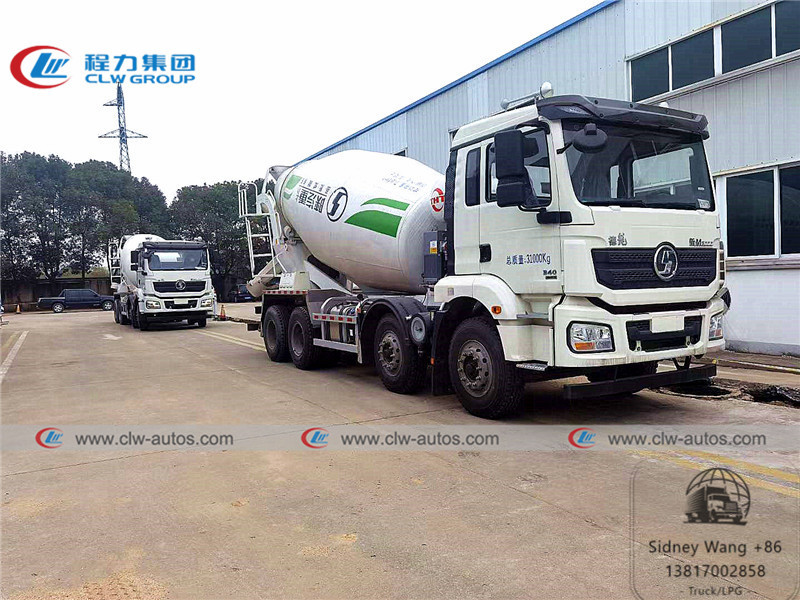

Product Photos

Shacman 8x4 14000L 18000L Heavy Duty Concrete Mixer Truck

Truck Diagram

Parts

Production workshop

Factory Overview

Overseas Exhibition and Local Support

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship

After Sales Service

Email & Phone call tracking for each truck on timely manners.

FAQ

Q1: What kinds of concrete mixer trucks I can order from your company?

A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied concrete mixer truck to any overseas companies?

A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
