3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer

Ask Lasest Price
Brand Name :	CLW
Model Number :	CLW20210110
Certification :	ISO9001, CCC, BV, SGS
Price :	Negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500 units per month
Delivery Time :	30-35 days after receiving the deposit

Add to Cart

Product Details
Company Profile

3 Axle 24CBM 40T U Shape Side Lifting Tipper Semi Trailer

3 Axle 40Tons U-shape Side Lifting Hydraulic Cylinder Tipping Tipper Semi-trailer

Product Description

CLW dump trailers adopt high strength steel,these make the product increase longer serivce life. And the loading capacity are 40t, 60t, 80t, 100t.

CLW Tippers equipped with reliable hydraulic cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It's with high performance, and reliable to use.

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacit, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

product Specification

Trailer Model	3 Axle 24CBM U Shape Tipper Semi Trailer
Overall dimension	11200X2550X3500mm
Inner Dimension	10000X2300X1500mm
Loading capacity	50T
Axle brand and number	16TFuwa 3units
Wheel base(mm)	6100+1320+1320
Kingpin	50# or 90#
Steel Spring	10/10/10 leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Lifting	HYVA hydraulic lifting system, model:FC214-5-09030, lifting weight:55-90Tons, Maxim Lifting Weight 90Tons
Tyre and quantity	12R22.5 tubeless tires, 12 pieces
Landing gear	28ton, double speed operation
Thickness	bottom:8mm, side:6mm
Traction Pin	Φ90MM or 50MM
Brake system	ABS braking system
Brake air chamber	Four double and two single chamber
Electrical system	24V,7 pin socket,One set 6-core standard Cable
Light	Tail lamp with turn signal, brake light & reflector, side lamp etc
Tool box	1 set
Spare tire carrier	2 sets
Painting	Optional
Packing	Polish with wax before shipping

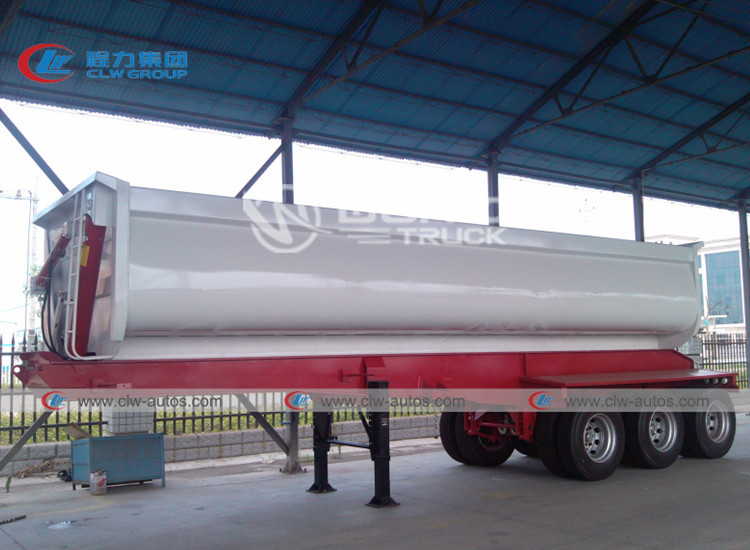

the pictures of 3 Axle 40Tons U-shape Side Lifting Hydraulic Cylinder Tipping Tipper Semi-trailer

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Our Service:

1. Professional design model of chassis trailer for customers' special requirements.
2. Welcome to visit our factory and we will pick you up at airport!
3. Strict Quality Control for the chassis trailer.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solveway for you.

FAQ

Q1. How do you transport the semi trailers
A: We will transport the trailers by bulk or cotainer,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. Can I have samples of this type of trailer to test the quality?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 set.

Q4. Can you satisfy my spacial requirement?
A: Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.

Q5. What's the delivery time and can you lower the price?
A: It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

Q6. Can I customize the painting and the logo?
A: Yes, we offer customized logo for any type.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
