    210HP 14cbm Refuse Collection Truck With Double Operation System

    Ask Lasest Price
    Brand Name : CLW
    Model Number : CLW52157xet
    Certification : CCC,ISO,CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, D/A, Western Union,, MoneyGram
    Supply Ability : 500Unit Per Month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    210HP 14cbm Refuse Collection Truck With Double Operation System

    14cbm Refuse Collection Truck 14m3 Compression Garbage Truck


    • Compressed garbage truck is the most widely used vehicle type, which realizes efficient transportation by compressing domestic garbage
    • Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.


    Specifications of 14CBM Refuse Collection Truck

    Dongfeng 6CBM Compressed Garbage Truck
    Overall Dimension8350×2490×3250 mmGross Vehicle Weight

    15800 kg

    Curb Weight9850 kgLoading Weight5755 kg
    Wheel Base3800 mmFront / Rear Axle5000 kg / 10000kg
    CabinLeft Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio
    EngineCummins
    Engine horsepower210HP, EURO II
    Max Driving Speed90 km/h
    Gear Box8 Forward Gear, 1 Reverse Gear,
    Tire9.000R20 (6 pieces with one spare)
    Garbage BinCapacity14CBM
    Material5mm Carbon Steel for Garbage Bin Body
    DesignWhole unit with Leakage Proof Design
    Ways of LoadingRear Loading with optional Bucket Lifting System
    Garbage Compact Ratio0.6 - 0.7

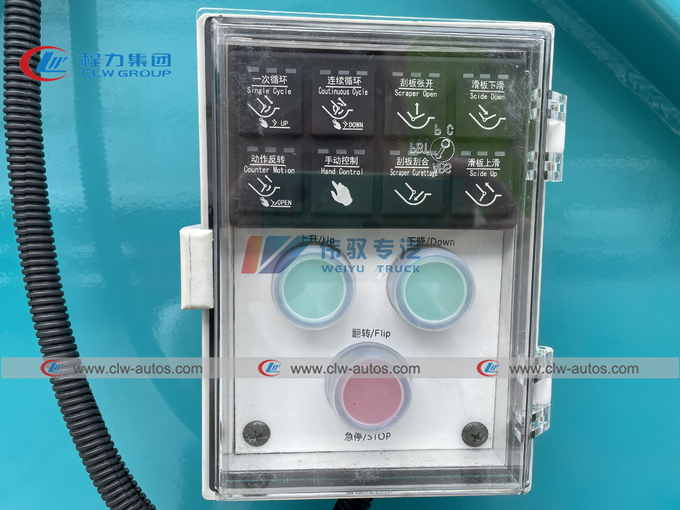

    Control SystemOne control Panel on the back, One Control system in back of Cabin
    Working System1. Equipped with air-tight dustbin, hydraulic system and operating system.
    2. Automatic loading, compressing and discharging, all handled by 1 person
    3. Sewage water collection tank to avoid any pollution during handling.
    4. Large Pressure, Good Leakage Proof, Convenient Operation
    Dependable Security
    5. Electrical Control Panel for compacting system.
    6. Cycling time<14~18s
    Remarks1. Color is optional
    2. Customized LOGO painting as per customer request

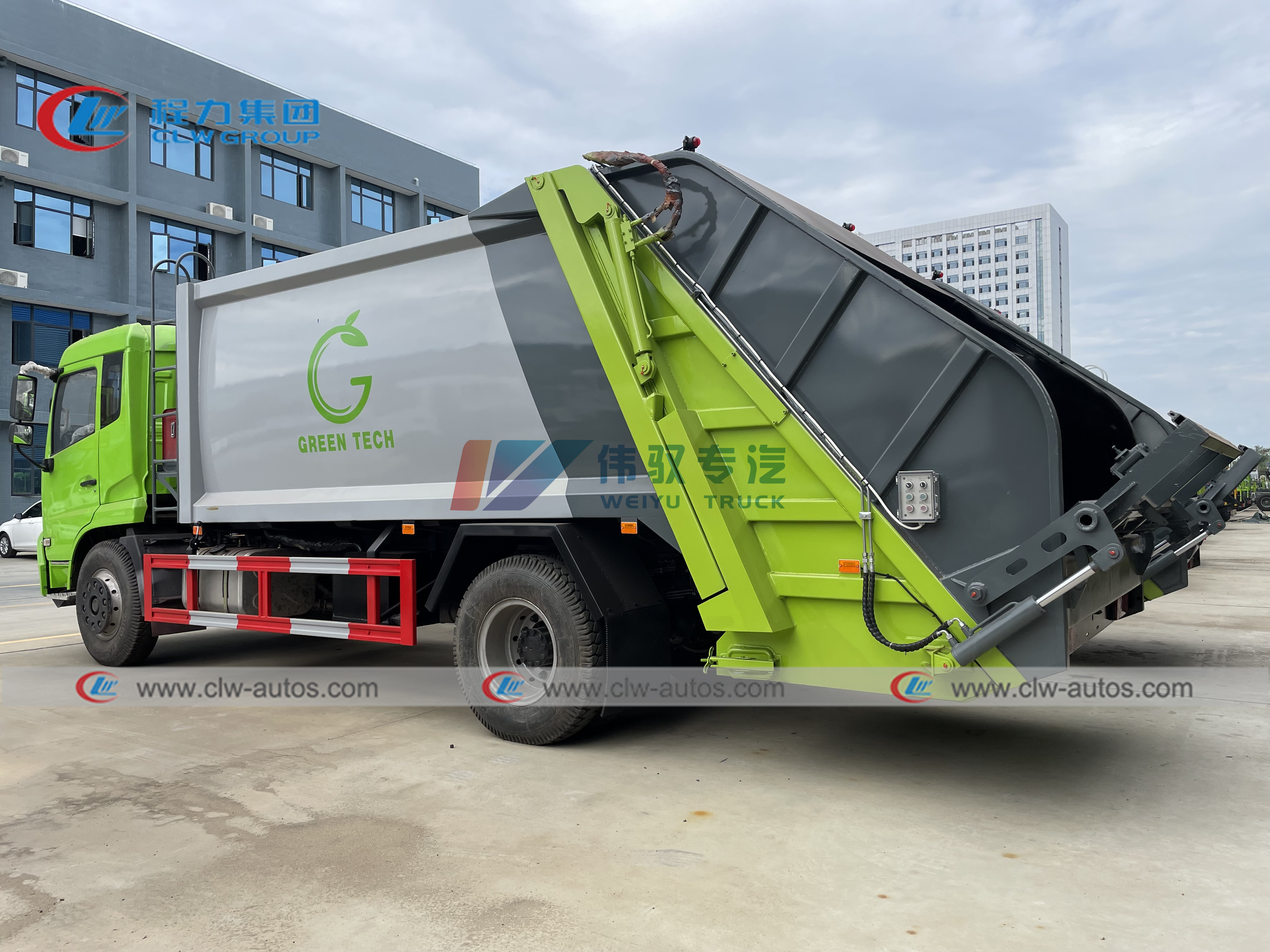

    Truck Details:


    210HP 14cbm Refuse Collection Truck With Double Operation System210HP 14cbm Refuse Collection Truck With Double Operation System


    210HP 14cbm Refuse Collection Truck With Double Operation System
    Diagram



    Working Show

    Our Service

    • Quick feedback to solve your questions

    • Reasonable price and good quality

    • Quick delivery and shipment


    FAQ

    Q1: What kinds of garbage trucks I can order from your company?
    A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

    Q2:: Have you supplied garbage truck to any overseas companies?
    A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.
